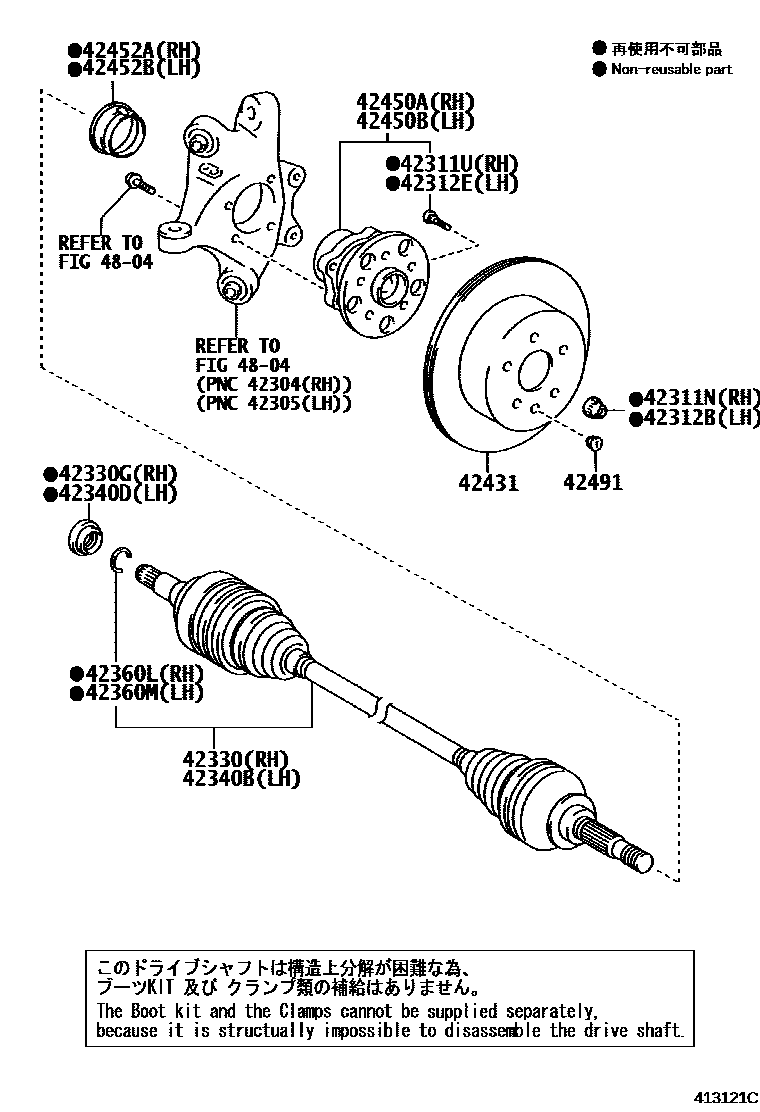

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGSE2#200904

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iGSE2#201505-201507

main90942-02070×5iGSE2#200904-201504

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iGSE2#200904

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iGSE2#201505-201507

main90942-02070×5iGSE2#200904-201504

42330SHAFT ASSY, REAR DRIVE, RH

main42330-22090iGSE20200904-201009

main42330-22091iGSE2#201009

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-43009iGSE2#200904-201507

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-22180iGSE22200904-201008

main42340-22181iGSE2#201009

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-43009iGSE2#200904-201507

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iGSE2#200904

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iGSE2#200904

42431DISC, REAR

main42431-30290×2iGSE2#200904-201308

main42431-30330×2iGSE2#201308-201507

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30020iGSE2#200904-201504

main42410-30021iGSE20; GSE22201505-201507

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30020iGSE2#200904-201504

main42410-30021iGSE20; GSE22201505-201507

42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

main42451-30020iGSE2#200904

42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

main42451-30020iGSE2#200904

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iGSE2#200904-201507

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

17 parts on this diagram · 1 diagram in section
