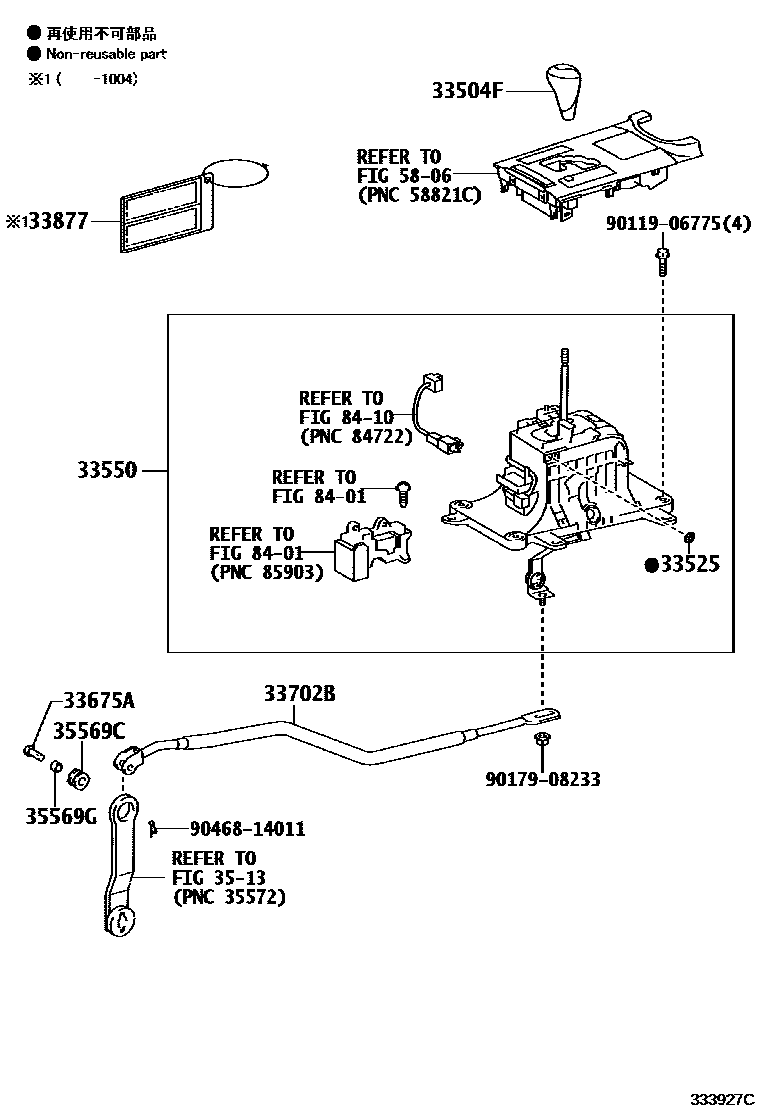

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30341-C2iGSE2#200904-201507

BLACK,TRIM0#,1#,2#,3#,4#

main33504-30352-25iGSE22..GCC201203-201507

STEERING WHEEL-WOOD,BLACK & DK.BROWN,TRIM06,12,22,38,42

main33504-30352-27iGSE22..GCC201203-201507

STEERING WHEEL-WOOD,BLACK & LT.BROWN,TRIM00,10,20,36,40

main33504-30352-C4iGSE22..GCC201203-201507

STEERING WHEEL-WOOD,BLACK & GRAY,TRIM01,11,21,37,41

main33504-30361-21iGSE22..GCC201008-201202

STEERING WHEEL-WOOD,BLACK & LT.BROWN,TRIM00,10,20,33,36,40

main33504-30361-22iGSE22..GCC201008-201202

STEERING WHEEL-WOOD,BLACK & DK.BROWN,TRIM06,12,22,35,38,42

main33504-30361-C5iGSE22..GCC201008-201202

STEERING WHEEL-WOOD,BLACK & GRAY,TRIM01,11,21,34,37,41

main33504-53100-C0iGSE22..GCC201208

STEERING WHEEL-F SPORTS,BLACK,TRIM2#,3#

33525SUPPORT, SHIFT LEVER

main33525-50020iGSE2#200904

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-53190iGSE22..GEN200904-201408

main33550-53200iGSE2#..GCC200904-201507

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iGSE2#200904

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22140iGSE20201008-201507

main33702-30580iGSE22200904-201507

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iGSE22200904-201004

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGSE2#200904-201507

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iGSE2#200904-201507

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

15 parts on this diagram · 1 diagram in section
