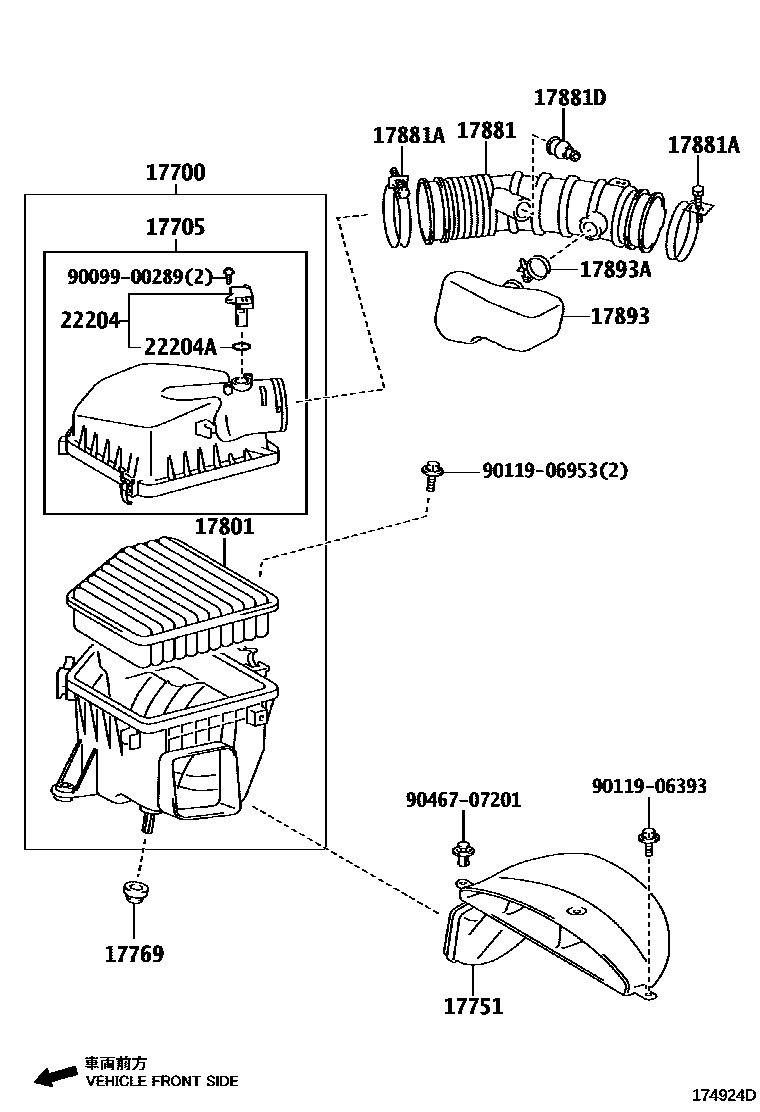

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-31631i4GRFSE..GSE20201008-201111

main17700-31632i4GRFSE..GSE20201112

main17700-31700i3GRFE..GSE22200904

17705CAP SUB-ASSY, AIR CLEANER

main17705-31191i4GRFSE..GSE20201008-201111

main17705-31192i4GRFSE..GSE20201112

main17705-31240i3GRFE..GSE22200904

17751INLET, AIR CLEANER, NO.1

main17751-31100i3GRFE,4GRFSE..GSE2#200904

17769SUPPORT, AIR CLEANER

main17769-31020i3GRFE,4GRFSE..GSE2#200904-201105

main17769-31030i3GRFE,4GRFSE..GSE2#201106

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31110i3GRFE,4GRFSE..GSE2#200904-201507

17881HOSE, AIR CLEANER, NO.1

main17881-31120i4GRFSE..GSE20201008

main17881-31180i3GRFE..GSE22200904

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main17891-31010i4GRFSE..GSE20201008

NO.1

main96111-10850×2i3GRFE..GSE22200904

main96111-10880i4GRFSE..GSE20201008

NO.2

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i3GRFE,4GRFSE..GSE2#200904

17893RESONATOR, INTAKE AIR

main17893-31020i4GRFSE..GSE20201008

main17893-31080i3GRFE..GSE22200904

17893ACLAMP, HOSE

main96111-10330i3GRFE..GSE22200904

main96111-10380i4GRFSE..GSE20201008

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i3GRFE..GSE22200904

main22204-31020i4GRFSE..GSE20201008

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i3GRFE..GSE22200904

9009900289

main90099-00289

9011906393

main90119-06393

9011906953

main90119-06953

9046707201

main90467-07201

16 parts on this diagram · 2 diagrams in section
