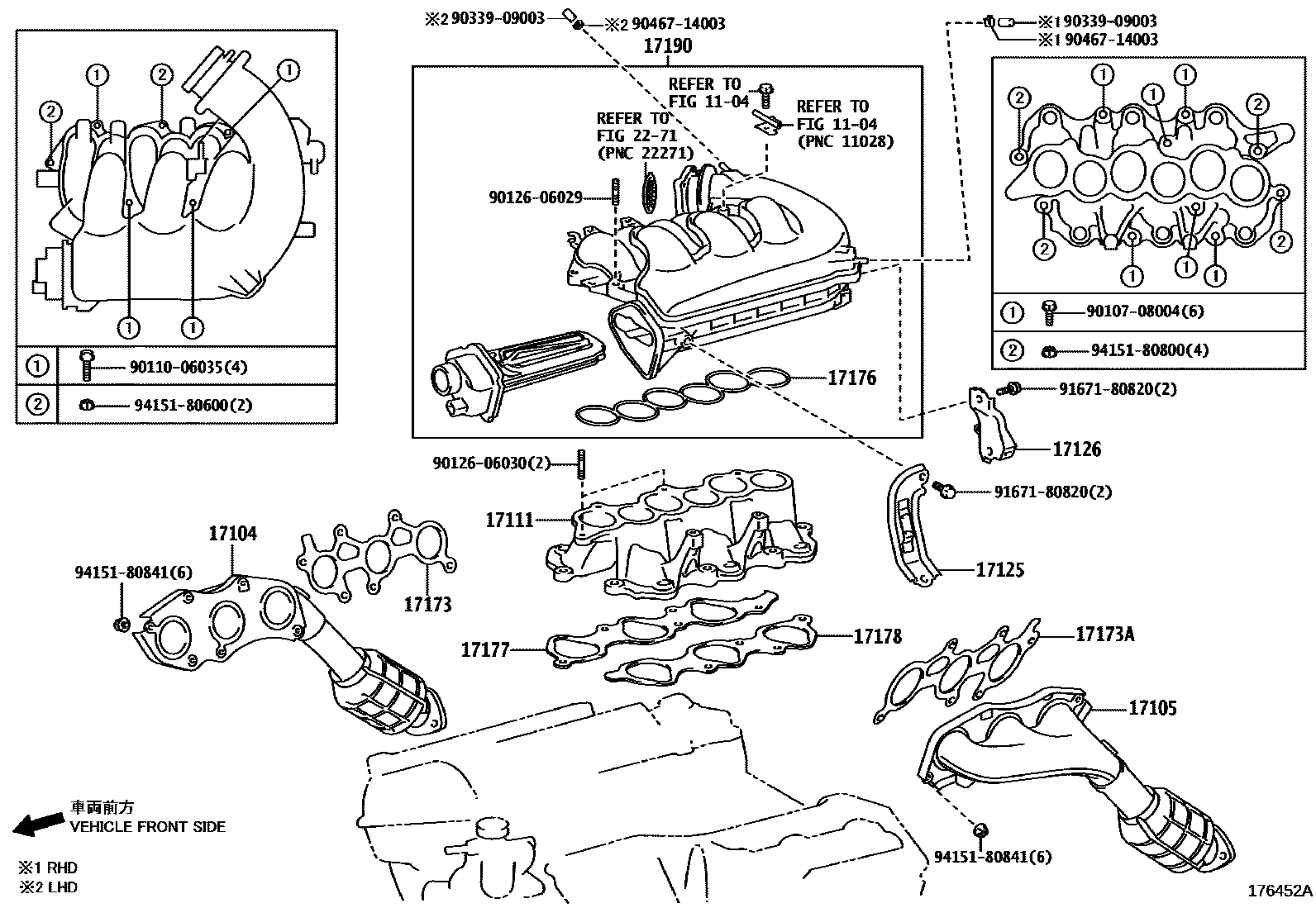

MANIFOLD

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31131i3GRFE..GSE22200904

main17140-31640i4GRFSE..GSE20201008

*114=TOYOTA/R31640/Y

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31120i3GRFE..GSE22200904

*114=TOYOTA/L31120/Y

main17150-31640i4GRFSE..GSE20201008

*114=TOYOTA/L31640/Y

17111MANIFOLD, INTAKE

main17111-31120i3GRFE..GSE22200904

main17120-31041i4GRFSE..GSE20201008

17125STAY, SURGE TANK, NO.1

main17125-31030i3GRFE..GSE22200904

17126STAY, SURGE TANK, NO.2

main17126-31020i3GRFE,4GRFSE..GSE2#200904

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i3GRFE,4GRFSE..GSE2#200904

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i3GRFE,4GRFSE..GSE2#200904

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31030i3GRFE..GSE22200904

main17176-31050×3i4GRFSE..GSE20201008-201110

main17176-31170×3i4GRFSE..GSE20201110

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31020×2i4GRFSE..GSE20201008-201110

main17177-31021×2i4GRFSE..GSE20201110

main17177-31030i3GRFE..GSE22200904

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-31020i3GRFE..GSE22200904

17190TANK ASSY, INTAKE AIR SURGE

main17190-31030i3GRFE..GSE22200904-201507

main17190-31070i4GRFSE..GSE20201008-201110

main17190-31071i4GRFSE..GSE20201110-201507

2271

9010708004

main90107-08004

9011006035

main90110-06035

9012606029

main90126-06029

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

23 parts on this diagram · 2 diagrams in section
