ENGINE OVERHAUL GASKET KIT

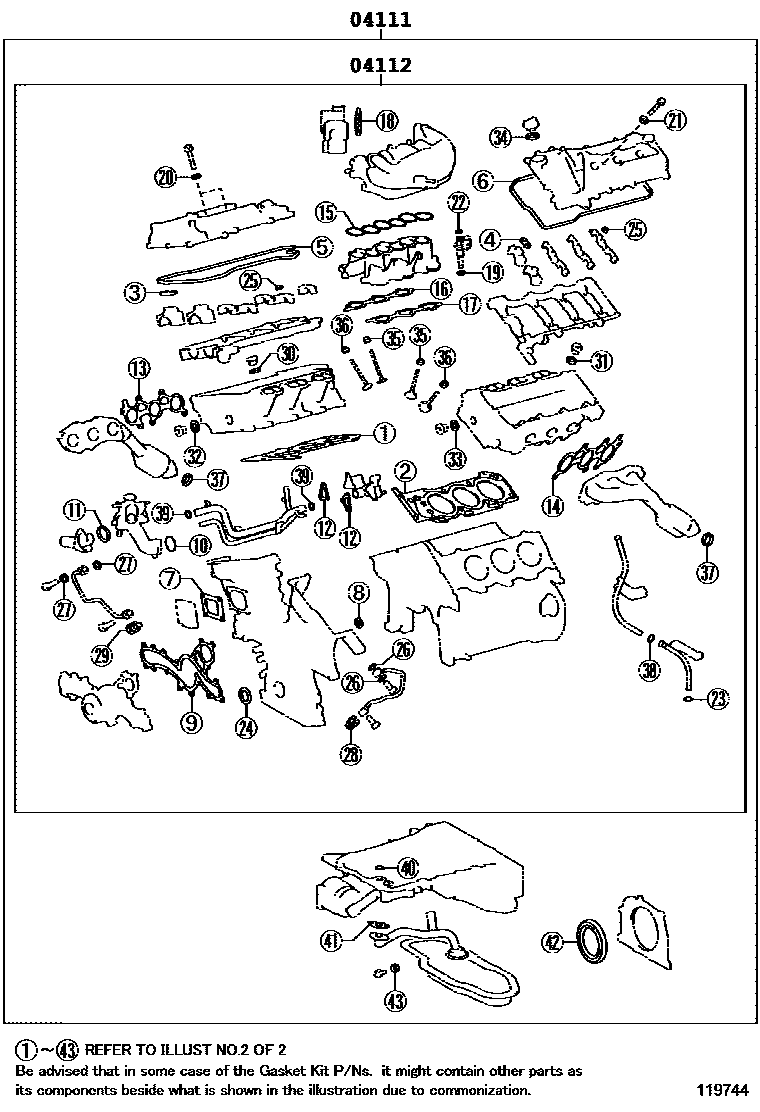

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31560i200904-201108
sub04111-31561
main04111-31561i201108-201503
sub04111-31562
main04111-31562i201503-201507
main04111-31780i201008-201108
sub04111-31781
main04111-31781i201108-201110
sub04111-31782
sub04111-31B40
main04111-31B40i201110-201507
sub04111-31A93
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31330i201008-201108
sub04112-31331
main04112-31331i201108-201110
sub04112-31332
sub04112-31800
main04112-31350i200904-201108
sub04112-31351
main04112-31351i201108-201507
main04112-31800i201110-201507
sub04112-31632

2 parts on this diagram · 10 diagrams in section
