SHORT BLOCK ASSEMBLY

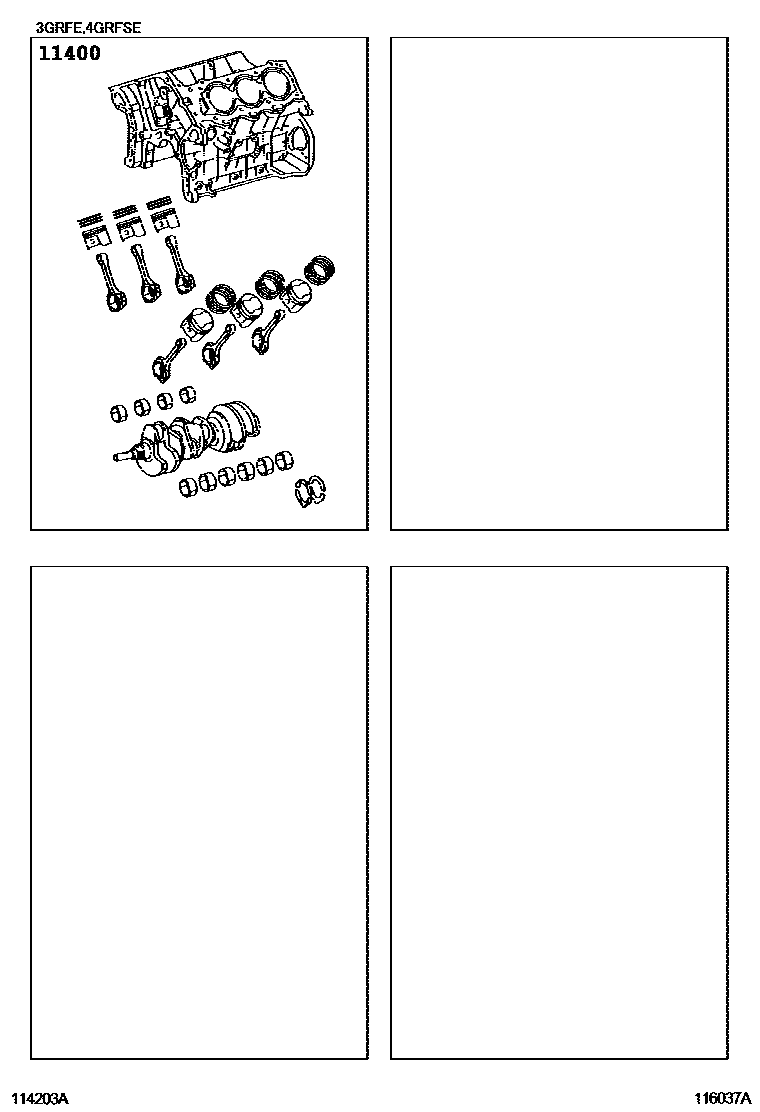

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31050i201008-201403

main11400-31150i200904-201403

main11400-39025i201407

main11400-39035i201403-201406

main11400-39065i201403

1 parts on this diagram · 1 diagram in section
