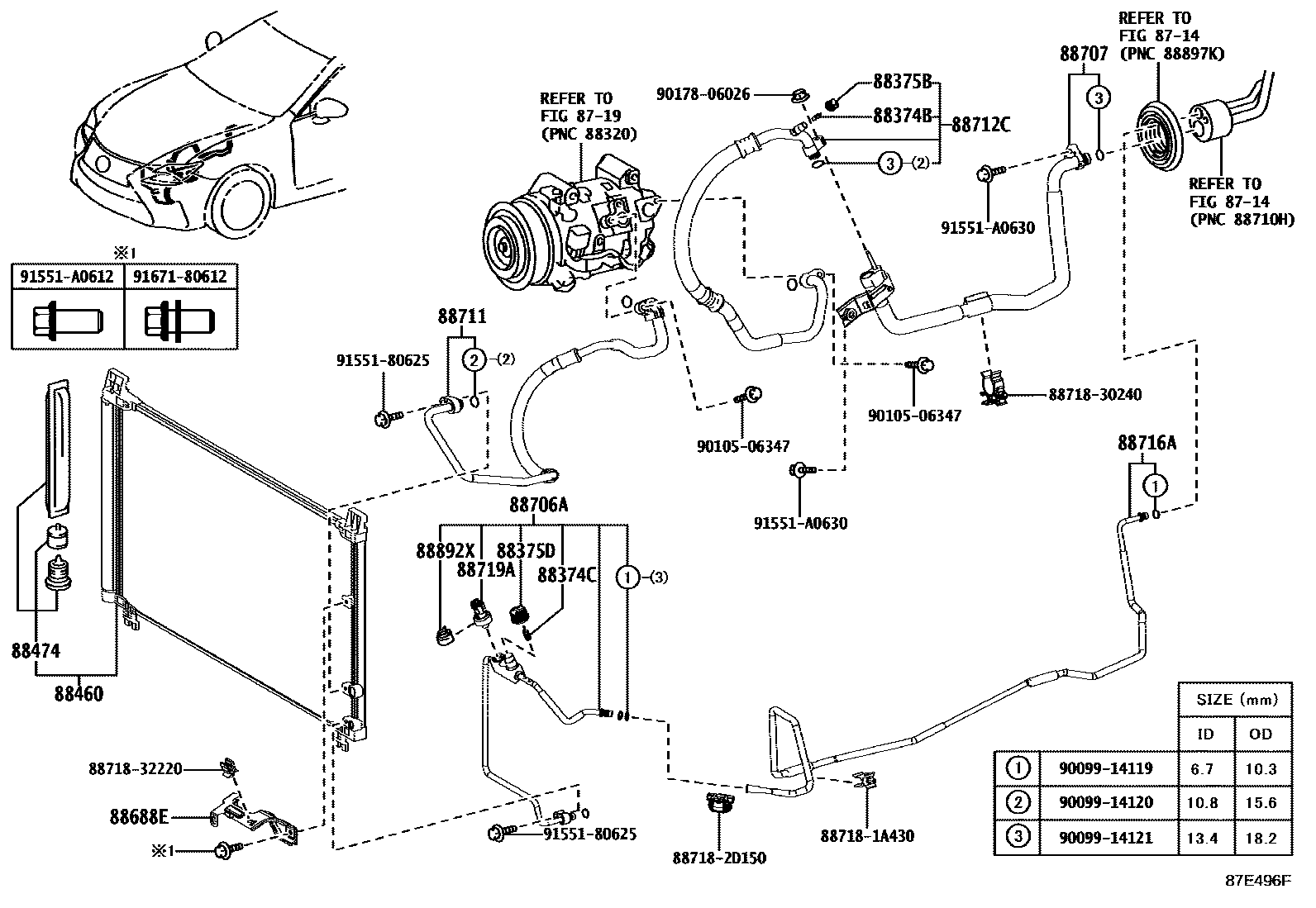

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iGSC10201409-201510

88374CVALVE, SERVICE, NO.2

main88374-30010iGSC10201409-201510

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAVC10..GEN;ASC10,GSC10201510-201810

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iGSC10201409-201510

88460CONDENSER ASSY, COOLER

main88460-24100iGSC10..ARL,GEN201409-201510

main88460-24110iGSC10..GCC201409-201510

main88460-24140iAVC10201510-201810

main88460-30B20iGSC10..ARL,GEN201510-201810

main88460-30B70iGSC10..GCC201510-201810

main88460-30B80iASC10..ARL,CHI,GEN201510-201810

main88460-30B90iASC10..GCC201810

88474DRYER, COOLER

main88474-12010iGSC10201409-201510

main88474-47020iAVC10..GEN201510-201810

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iASC10..GEN201810-202003

88706ATUBE SUB-ASSY, LIQUID, A

main88706-24180iGSC10201409-201510

main88706-24190iAVC10..ARL201510-201608

main88706-30A20iGSC10201510-201810

main88706-30A30iASC10..CHI,GCC201810

88707PIPE SUB-ASSY, SUCTION

main88707-30A31iAVC10..ARL201510-201608

main88707-30A41iGSC10..ARL201810-202209

main88707-53140iASC10201510-201810

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24180iGSC10201409-201510

main88711-30A10iAVC10..ARL201510-201608

main88711-30A30iGSC10201810-202404

main88711-30A31iGSC10202405

main88711-30A40iASC10..ARL201810-202209

main88711-30A41iASC10..GCC202405

88712CHOSE, SUCTION

main88712-30360iGSC10201510-201711

main88712-3F070iAVC10..GEN201510-201810

main88712-53230iASC10..CHI,GCC201810-202404

main88712-53231iASC10..GCC202405

main88712-53240iGSC10201810-202404

main88712-53241iGSC10202405

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-30061iAVC10..ARL201510-201608

main88716-30071iGSC10201510-201711

main88716-30B10iGSC10201711-201810

main88716-30B20iASC10..GEN201810-202003

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSC10201409-201510

88892XCOVER, COOLER, NO.2

main88892-50120iGSC10201409-201510

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871830240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30240

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9017806026

main90178-06026

9155180625

main91551-80625

91551A0612

main91551-A0612

91551A0630

main91551-A0630

9167180612

main91671-80612

29 parts on this diagram · 3 diagrams in section
