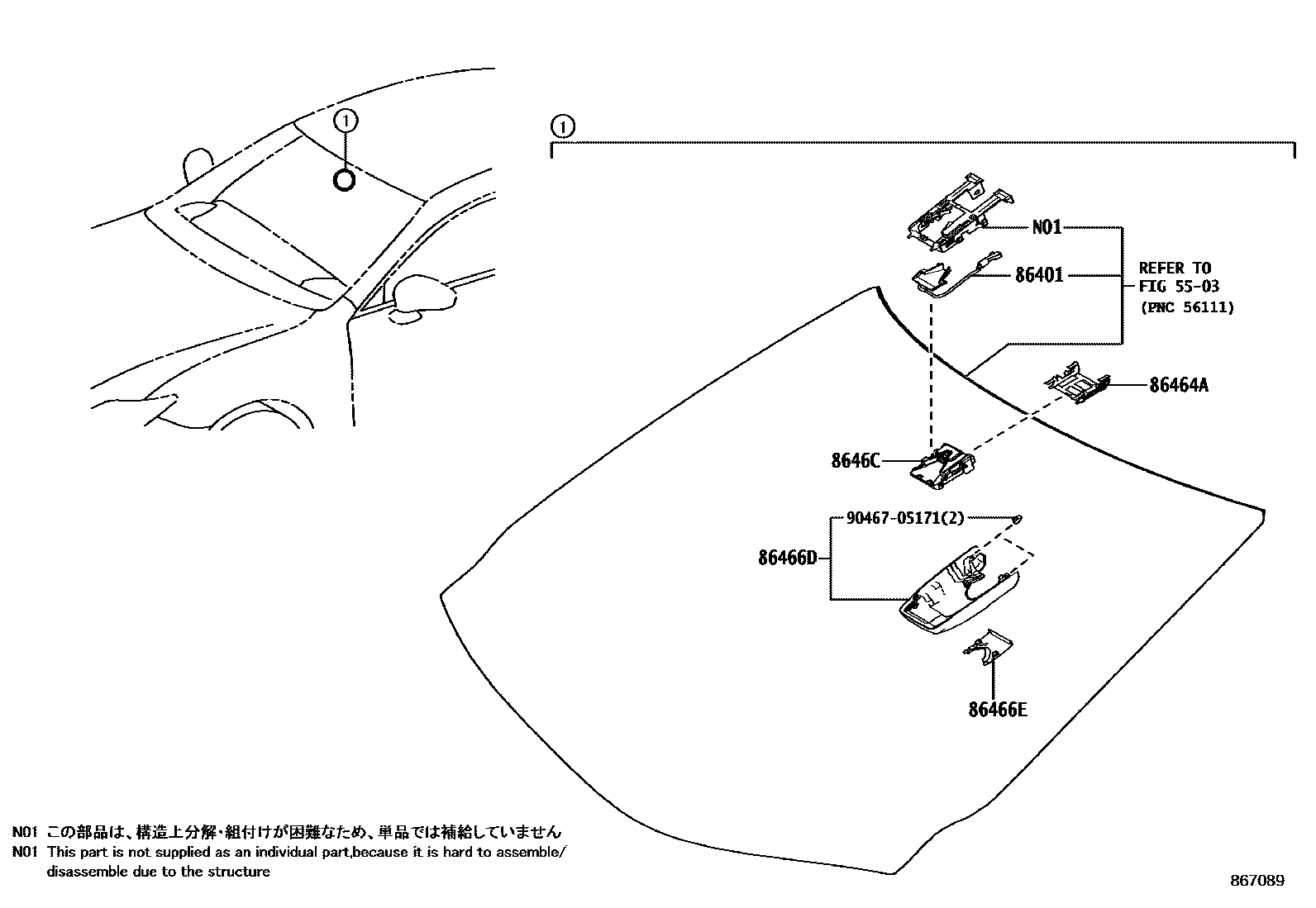

PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-24010iASC10,GSC10..ARL202111-202209

main86401-24020iASC10,GSC10..LHD202301

86464ALATCH, FORWARD RECOGNITION

main86464-26010iASC10,GSC10..LHD202301

main86464-48011iASC10,GSC10..ARL202111-202209

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-24050iASC10,GSC10..ARL202111-202209

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-24060iASC10,GSC10..ARL202111-202209

8646CCAMERA, FORWARD RECOGNITION

main8646C-24012iASC10,GSC10..ARL202111-202209

main8646C-24030iASC10,GSC10..LHD202301-202501

main8646C-24031iASC10,GSC10..LHD202501

main8646C-24010iASC10,AVC10,GSC10201711-201810

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main8646C-24011iASC10,GSC10201810-202009

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
