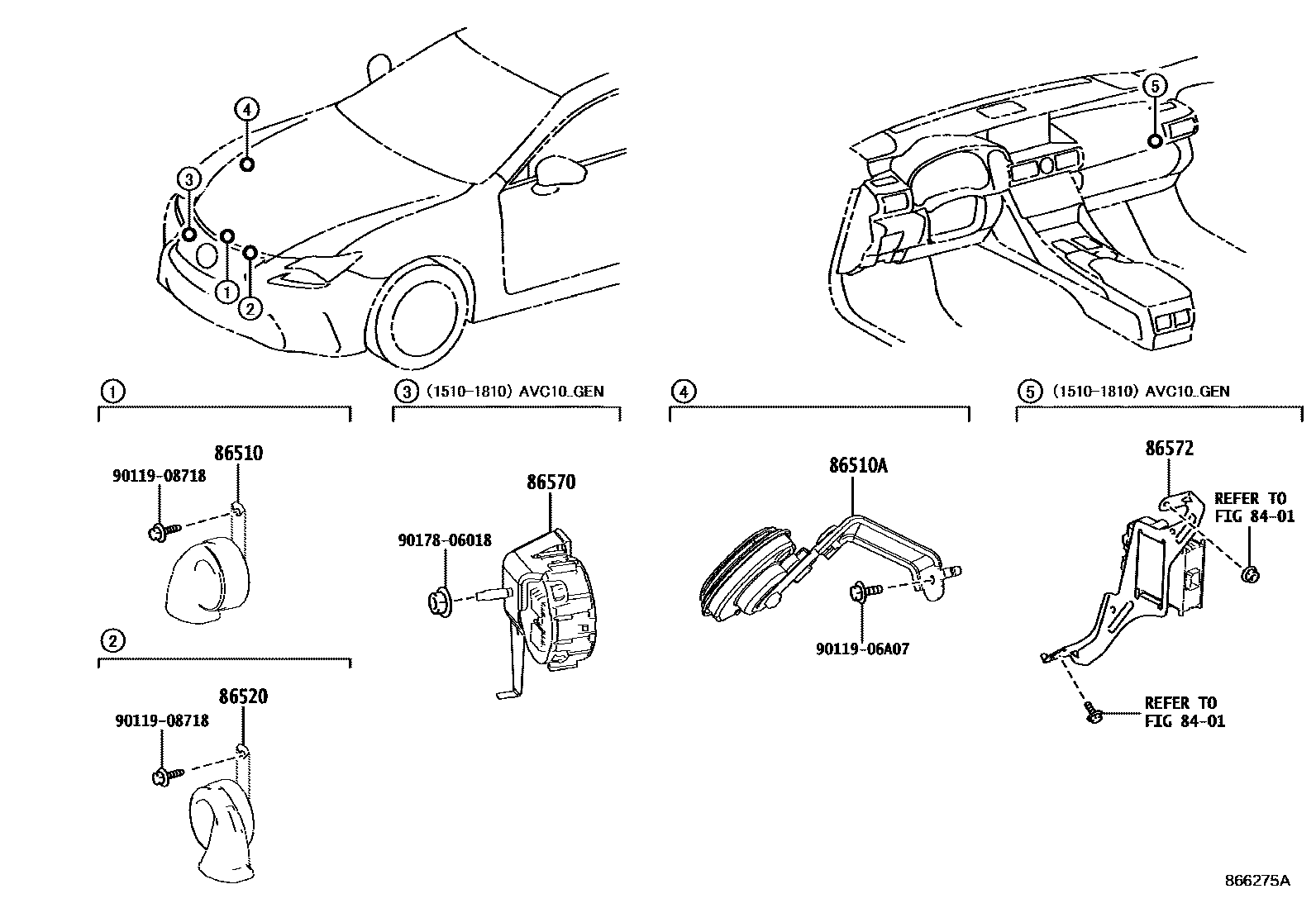

HORN

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86510HORN ASSY, HIGH PITCHED

main86510-30700iASC10,AVC10,GSC10..ARL,GEN201510-201810

main86510-53030iASC10,GSC10..GCC201810

main86510-53050supersedes 86510-30700iASC10,GSC10..ARL202111-202209

main86510-53060iASC10..CHI201510-201810

86510AHORN ASSY, SECURITY

main86560-30030iAVC10..ARL201510-201608

86520HORN ASSY, LOW PITCHED

main86520-30610iGSC10201409-201510

main86520-33170iASC10,GSC10..GCC201510-201810

main86520-53010supersedes 86520-30610iASC10,GSC10..ARL202111-202209

main86520-53020iASC10..CHI201812-202003

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30050iAVC10..GEN201510-201810

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-24020iAVC10..GEN201510-201810

9011906A07

main90119-06A07

9011908718

main90119-08718

9017806018

main90178-06018

9 parts on this diagram · 1 diagram in section
