EPC Data

NAVIGATION & FRONT MONITOR DISPLAY

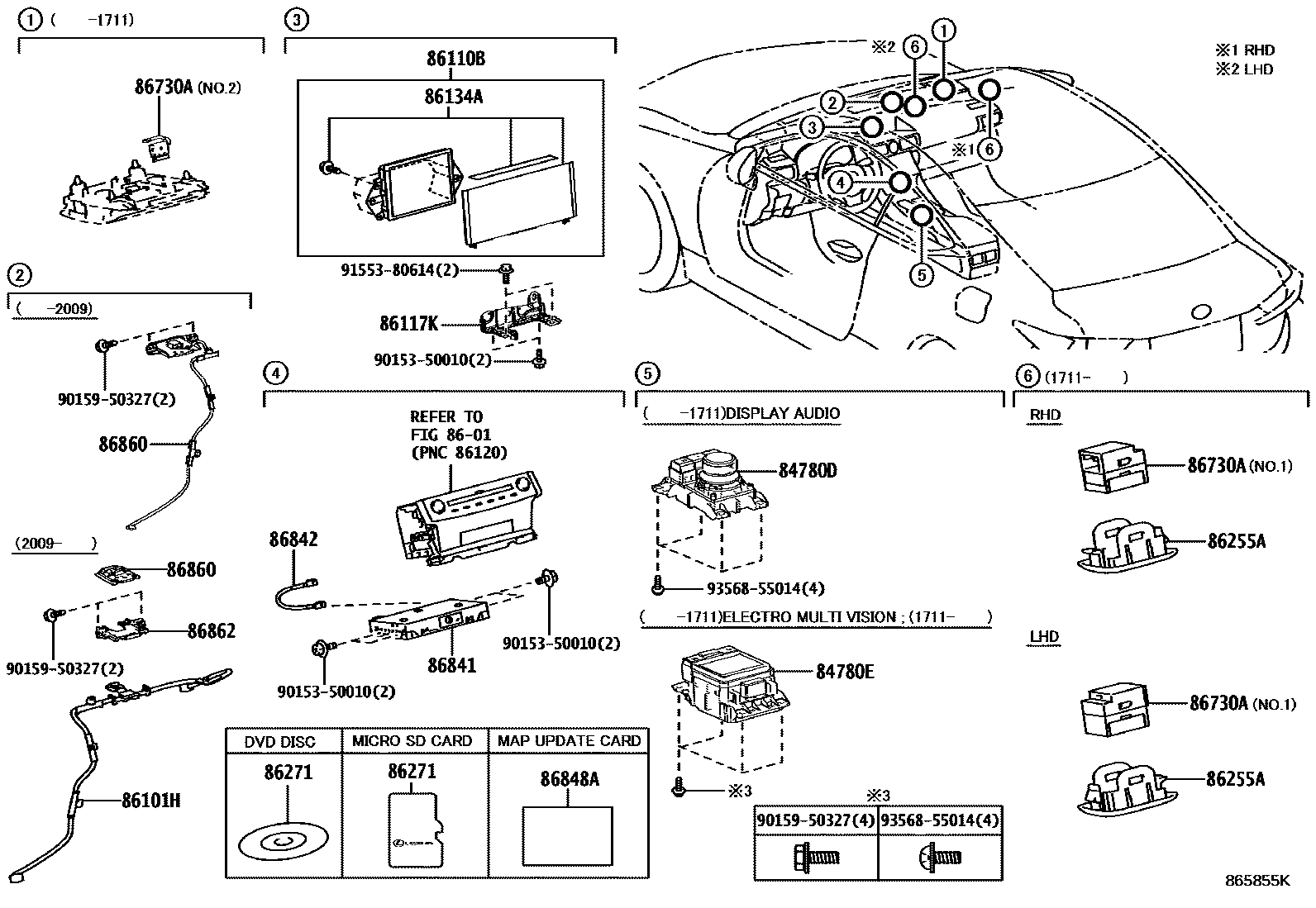

Parts diagram
84780DCONTROLLER ASSY, REMOTE OPERATION(FOR DISPLAY AUDIO)
main84780-24010i201510-201711
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
84780ECONTROLLER ASSY, REMOTE OPERATION(FOR ELECTRO MULTI VISION)
main84780-24120supersedes 84780-24130i201711-201810
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main84780-53090supersedes 84780-53300i202009-202209
main84780-24040i201510-201711
CHILE SPEC&ELECTRO MULTI VISION-WITH(NAVIGATION LESS); ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MIDDLE & SOUTH AMERICA SPEC&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
main84780-24060i201409-201510
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
→ Go to FIG 86-01
86101HCORD SUB-ASSY, ANTENNA
main86101-24720i202009-202301
main86101-24760i201911-202003
main86101-24850i202009-202209
main86101-53G50i202301
86110BMULTI-DISPLAY ASSY
main86110-24140i201810-202301
PANASONIC
main86110-24220supersedes 86110-24140i201711-201810
DENSO; DENSO,AUDIO-EMV & DVD & 10SPEAKER; DENSO,AUDIO-EMV & DVD & 17SPEAKER
main86110-24221supersedes 86110-24140i202111-202301
DENSO
main86110-24230i201711-201810
DENSO
main86110-53010i201409-201507
DENSO
main86110-53011i201510-201608
DENSO
main86110-53012i201705-201711
DENSO
main86110-53391supersedes 86110-53440i202301
DENSO; DENSO,AUDIO-EMV & DVD & 10SPEAKER; DENSO,AUDIO-EMV & DVD & 17SPEAKER
86117KBRACKET, MULTI-DISPLAY, NO.1
main86117-53010i201409-201510
main86117-53061i201810-202301
main86117-53081supersedes 86117-53091i201711-201810
main86117-53120supersedes 86117-53100i202301
STEERING COLUMN-POWER(AVS)
main86117-53071i201810-202009
TAIWAN SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&STEERING COLUMN-MANUAL(AVS); TAIWAN SPEC&STEERING COLUMN-POWER(AVS)
86134APARTS, MULTI-DISPLAY
main86134-53030i201510-201608
main86134-53050i202111-202301
main86134-53060i201810-202209
86255ACASE, MICROPHONE, NO.1
main86255-78010-C1i201810-202209
BLACK,TRIM0#,2#,3#,4#,5#
86271DISC, DISC PLAYER
main86807-11020i201711-201808
TAIWAN SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-11042i201910-202009
main86807-11065supersedes 86807-11043i202111-202209
main86271-53381i201510-201609
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-53382supersedes 86807-11021i201610-201708
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-53383i201708-201711
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-76041i201409-201509
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-76042i201510-201609
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-76043supersedes 86807-11041i201610-201710
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-76044i201710-201711
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78042i201510-201606
BRAZIL SPEC&ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRAZIL SPEC&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78043i201607-201708
BRAZIL SPEC&ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRAZIL SPEC&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78044i201708-201711
BRAZIL SPEC&ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRAZIL SPEC&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78061i201409-201506
BRUNEI SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRUNEI SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MALAYSIA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MALAYSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PHILIPPINE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION); PHILIPPINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION); SINGAPORE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78062i201510-201606
BRUNEI SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRUNEI SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); INDONESIA SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); INDONESIA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MALAYSIA SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MALAYSIA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PHILIPPINE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); THAILAND SPEC&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); THAILAND SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78063supersedes 86807-33016i201607-201708
BRUNEI SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); INDONESIA SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); INDONESIA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MALAYSIA SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MALAYSIA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PHILIPPINE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); THAILAND SPEC&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); THAILAND SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78064i201708-201711
BRUNEI SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); INDONESIA SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); INDONESIA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MALAYSIA SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MALAYSIA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); PHILIPPINE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); THAILAND SPEC&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); THAILAND SPEC&ANTENNA-GLASS&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); VIETNAM SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78071i201409-201506
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78072i201507-201510
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78073i201607-201708
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78074i201708-201711
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78081i201409-201506
SOUTH AFRICA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SOUTH AFRICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78082i201510-201606
SOUTH AFRICA SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SOUTH AFRICA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78083i201607-201708
SOUTH AFRICA SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SOUTH AFRICA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86271-78084i201708-201711
SOUTH AFRICA SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SOUTH AFRICA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-0W260i201711-201804
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAP DISC(DOP)-WITH
main86807-0W261i201805-201809
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAP DISC(DOP)-WITH
main86807-0W262i201812-201904
"F SPORT"; "VERSION L"
main86807-0W263i201905-201909
"F SPORT"; "VERSION L"
main86807-0W264i201910-202003
"F SPORT"; "VERSION L"
main86807-11010supersedes 86807-11040i201711-201807
BRUNEI SPEC; INDONESIA SPEC; MALAYSIA SPEC; PHILIPPINE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC; THAILAND SPEC; VIETNAM SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-11011i201810-201907
BRUNEI SPEC; MALAYSIA SPEC; PHILIPPINE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC; THAILAND SPEC; VIETNAM SPEC&STEERING COLUMN-POWER
main86807-11012supersedes 86807-11041i201908-202006
BRUNEI SPEC; MALAYSIA SPEC; PHILIPPINE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC; THAILAND SPEC
main86807-11013i202007-202111
MALAYSIA SPEC; PHILIPPINE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC
main86807-11015i202208-202209
BRUNEI SPEC; THAILAND SPEC
main86807-11021i201810-201908
TAIWAN SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&STEERING COLUMN-POWER(AVS)
main86807-11022i201909-202009
TAIWAN SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&STEERING COLUMN-POWER(AVS)
main86807-11030i201711-201712
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-11031i201801-201807
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-11032i201810-201907
STEERING COLUMN-POWER(AVS)
main86807-11033i201908-202006
STEERING COLUMN-POWER(AVS)
main86807-11034i202007-202106
STEERING COLUMN-POWER(AVS)
main86807-11035i202107-202207
STEERING COLUMN-POWER(AVS)
main86807-11036i202208-202307
STEERING COLUMN-POWER(AVS)
main86807-11037i202308-202406
STEERING COLUMN-POWER(AVS)
main86807-11038i202407
STEERING COLUMN-POWER(AVS)
main86807-11050i201711-201809
HONG KONG SPEC; MACAU SPEC
main86807-11051i201810-201909
HONG KONG SPEC; MACAU SPEC
main86807-11052i201910-201911
HONG KONG SPEC
main86807-11060supersedes 86807-11040i201711-201712
SOUTH AFRICA SPEC
main86807-11061supersedes 86807-11041i201801-201807
SOUTH AFRICA SPEC
main86807-11062supersedes 86807-11041i201810-201907
SOUTH AFRICA SPEC
main86807-11063supersedes 86807-11041i201908-202006
SOUTH AFRICA SPEC
main86807-11064supersedes 86807-11041i202007-202106
SOUTH AFRICA SPEC
main86807-11070i201711-201807
BRAZIL SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MIDDLE & SOUTH AMERICA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-11071i201808-201810
BRAZIL SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MIDDLE & SOUTH AMERICA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-11072supersedes 86807-33016i201908-202006
MIDDLE & SOUTH AMERICA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-11073i202007-202111
MIDDLE & SOUTH AMERICA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-33010supersedes 86807-33016i201810-201907
ARGENTINA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-33011supersedes 86807-33016i201908-202006
ARGENTINA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-33012supersedes 86807-33016i202007-202106
ARGENTINA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-33013i202107-202111
ARGENTINA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86807-33014supersedes 86807-33016i202208-202307
ARGENTINA SPEC
main86807-33015supersedes 86807-33016i202308-202406
ARGENTINA SPEC
main86807-33016i202407-202501
ARGENTINA SPEC
main86845-0W020i201602-201604
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86845-0W021i201605-201609
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86845-0W022i201610-201708
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86845-0W024i201708-201711
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86845-0W054i201510-201512
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAP DISC(DOP)-WITH
main86845-0W055i201605-201609
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAP DISC(DOP)-WITH
main86845-0W056i201610-201704
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAP DISC(DOP)-WITH
main86845-0W057i201705-201708
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAP DISC(DOP)-WITH
main86845-0W058i201708-201711
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAP DISC(DOP)-WITH
86730AMICROPHONE ASSY, TELEPHONE
main86730-11010i201810-202102
NO.1:REFER ILLUST.
main86730-48110i202103
NO.1:REFER ILLUST.
main86730-53070i201510-201711
NO.2:REFER ILLUST.
main86730-53080i201409-201510
NO.2
86841COMPUTER, NAVIGATION
main86840-11062i201711-201808
TAIWAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-11063i201809-201810
TAIWAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-48221i201911-202009
main86840-48273supersedes 86840-48222i202111-202207
main86840-0W150i201711-201804
MAP DISC(DOP)-WITH
main86840-0W151supersedes 86840-0W153i201805-201809
MAP DISC(DOP)-WITH
main86840-11051i201711-201807
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRUNEI SPEC; INDONESIA SPEC; MALAYSIA SPEC; SINGAPORE SPEC; THAILAND SPEC
main86840-11052i201808-201810
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRUNEI SPEC; INDONESIA SPEC; MALAYSIA SPEC; SINGAPORE SPEC; THAILAND SPEC
main86840-11053i201908-201911
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRUNEI SPEC; MALAYSIA SPEC; SINGAPORE SPEC; STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER; STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER; THAILAND SPEC
main86840-11064i201909-201911
TAIWAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; TAIWAN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-11081i201711-201807
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-11082i201808-201810
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-11083i201908-201911
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-11111i201711-201809
HONG KONG SPEC; MACAU SPEC
main86840-11112i201810-201910
HONG KONG SPEC; MACAU SPEC
main86840-11113i201910-201911
HONG KONG SPEC; MACAU SPEC
main86840-11121supersedes 86840-11091i201711-201807
SOUTH AFRICA SPEC
main86840-11122supersedes 86840-48274i201810-201908
SOUTH AFRICA SPEC
main86840-11123supersedes 86840-11093i201908-201911
SOUTH AFRICA SPEC
main86840-11150i201810-201911
CHILE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(LESS NAVIGATION); MIDDLE & SOUTH AMERICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(LESS NAVIGATION)
main86840-11181i201711-201807
BRAZIL SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRAZIL SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MIDDLE & SOUTH AMERICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-11182i201808-201810
BRAZIL SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); BRAZIL SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); MIDDLE & SOUTH AMERICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-11183i201908-201911
MIDDLE & SOUTH AMERICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-11190i201911-202111
CHILE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(LESS NAVIGATION); MIDDLE & SOUTH AMERICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(LESS NAVIGATION)
main86840-24070supersedes 86840-48286i201810-201908
ARGENTINA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ARGENTINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-24071i201908-201911
ARGENTINA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ARGENTINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-48191i201911-202006
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-48192i202007-202106
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-48193i202107-202207
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-48194i202208-202307
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-48195i202308-202407
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-48196i202408
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-48211i201911-202006
MIDDLE & SOUTH AMERICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-48212supersedes 86840-48286i202007-202106
MIDDLE & SOUTH AMERICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-48213i202107-202111
MIDDLE & SOUTH AMERICA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-48230supersedes 86840-0W071i201911-202003
"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER; "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER; "VERSION L"&AUDIO-EMV & DVD & 10SPEAKER; "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER
main86840-48241i201911-202006
BRUNEI SPEC; MALAYSIA SPEC; PHILIPPINE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION); PHILIPPINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION); SINGAPORE SPEC; THAILAND SPEC; VIETNAM SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; VIETNAM SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-48242i202007-202106
BRUNEI SPEC; MALAYSIA SPEC; PHILIPPINE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION); PHILIPPINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION); SINGAPORE SPEC; THAILAND SPEC
main86840-48243i202107-202111
MALAYSIA SPEC; PHILIPPINE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION); PHILIPPINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION); SINGAPORE SPEC
main86840-48244i202208-202209
BRUNEI SPEC; THAILAND SPEC
main86840-48251i201911-202009
MACAU SPEC
main86840-48261i201911-202009
TAIWAN SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); TAIWAN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER; TAIWAN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
main86840-48271i201911-202006
SOUTH AFRICA SPEC
main86840-48272supersedes 86840-48274i202007-202106
SOUTH AFRICA SPEC
main86840-48281i201911-202006
ARGENTINA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ARGENTINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-48282supersedes 86840-48286i202007-202106
ARGENTINA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ARGENTINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-48283i202107-202111
ARGENTINA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ARGENTINA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-48284supersedes 86840-48286i202208-202307
ARGENTINA SPEC
main86840-48285supersedes 86840-48286i202308-202407
ARGENTINA SPEC
main86840-48286i202408-202501
ARGENTINA SPEC
main86840-50350supersedes 86840-0W154i201812-201911
"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER; "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER; "VERSION L"&AUDIO-EMV & DVD & 10SPEAKER; "VERSION L"&AUDIO-EMV & DVD & 17SPEAKER
86842WIRE, NAVIGATION, NO.1
main86842-24180i201711-201801
main86842-24210supersedes 86842-24220i201711-201810
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
86848ACARD, SERIAL NUMBER MAP UPDATE
main86848-33010supersedes 86848-33070i202501
main86848-33080supersedes 86848-33040i202111-202209
main86848-33020i201810-202111
MIDDLE & SOUTH AMERICA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86848-33060i201810
STEERING COLUMN-POWER(AVS)
main86848-33070i201810-202111
MALAYSIA SPEC; PHILIPPINE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); SINGAPORE SPEC
86860ANTENNA ASSY, NAVIGATION
main86860-53070i201810-202009
main86860-53080i201810-202009
main86860-78010i202009
main86880-52020i201911-202003
main86880-0W030i201510-201711
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)
86862BRACKET, NAVIGATION ANTENNA
main86862-24040i202009-202209
9015350010
main90153-50010
9015950327
main90159-50327
9155380614
main91553-80614
9356855014
main93568-55014

19 parts on this diagram · 2 diagrams in section

NAVIGATION & FRONT MONITOR DISPLAY — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
