HEV INVERTER

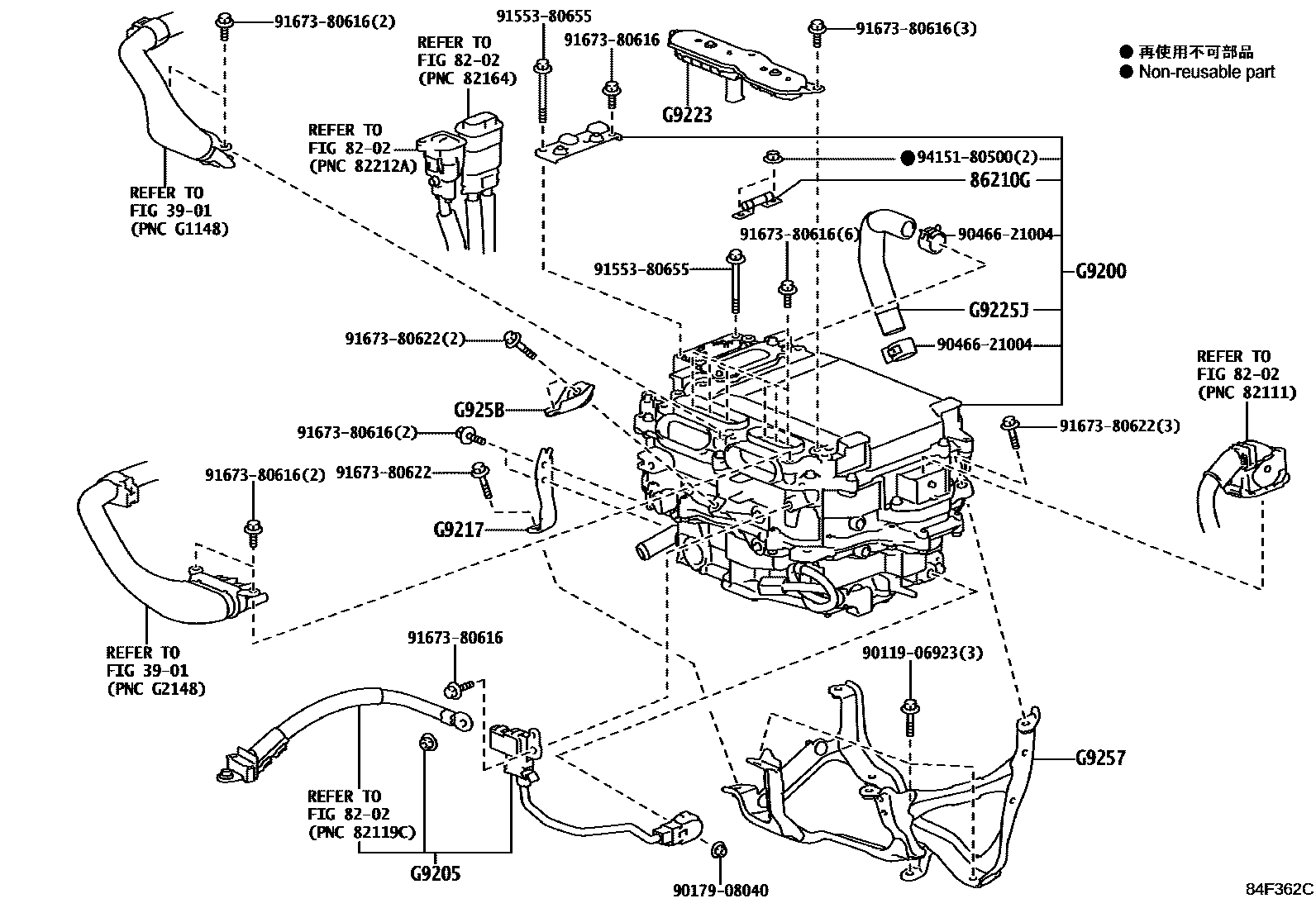

Parts diagram

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

86210GFUSE, HIGH VOLTAGE

main90982-11050i201510-201810

G9200INVERTER ASSY, W/CONVERTER

mainG92A030052i201510-201608

mainG92A053012i201510-201810

G9205PLATE SUB-ASSY, INVERTER BUS-BAR

mainG920530020i201510-201608

mainG920530030i201510-201810

G9217BRACKET, INVERTER, NO.4

mainG921730030i201510-201608

mainG921730040i201510-201810

G9223COVER, INVERTER TERMINAL

mainG922330021i201510-201810

mainG922330031i201510-201608

G9225JHOSE, INVERTER COOLING, NO.1

mainG922530210i201510-201608

G9257BRACKET, INVERTER, NO.5

mainG925730050i201510-201608

mainG925730060i201510-201810

G925BBRACKET, INVERTER, NO.6

mainG925B30030i201510-201608

mainG925B30040i201510-201810

9011906923

main90119-06923

9017908040

main90179-08040

9046621004

main90466-21004

9155380655

main91553-80655

9167380616

main91673-80616

9167380622

main91673-80622

9415180500

main94151-80500

17 parts on this diagram · 2 diagrams in section
