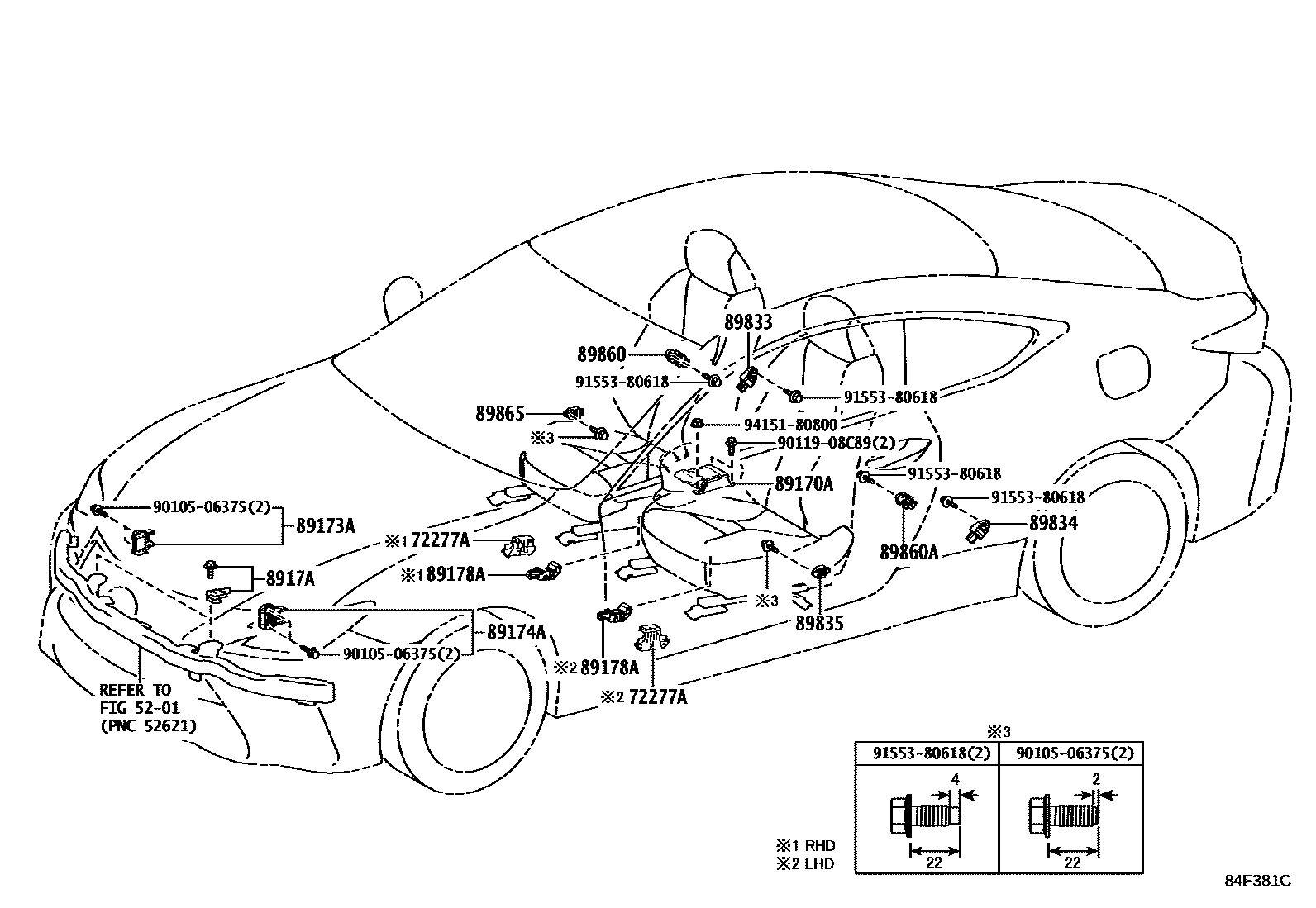

AIR BAG

5201

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iAVC10..ARL201510-201608

89170ACOMPUTER ASSY, AIRBAG

main89170-24160iASC10,GSC10..ARL201510-201711

main89170-24200iASC10,AVC10,GSC10..LHD201510-201810

main89170-24310iASC10,GSC10..ARL201711-201810

main89170-24430supersedes 89170-24360iASC10,GSC10..ARL202111-202209

main89170-24440iASC10,GSC10..LHD201810

main89170-24190supersedes 89170-24160iGSC10..ARL201409-201510

SOUTH AFRICA SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-39495iASC10,GSC10201810-202207

main89173-39535iASC10,GSC10..ARL202207-202209

89174ASENSOR, AIRBAG, FRONT LH

main89173-39495iAVC10..GEN;ASC10,GSC10201510-201810

main89173-39535iASC10,GSC10..ARL202207-202209

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iAVC10..ARL201510-201608

8917ASENSOR, PEDESTRIAN PROTECTION

main8917A-30060×2iGSC10201409-201510

89833SENSOR, AIRBAG, REAR RH

main89831-53050iGSC10201409-201510

89834SENSOR, AIRBAG, REAR LH

main89831-53050iGSC10201409-201510

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-33050iGSC10201409-201510

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iGSC10201409-201510

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iGSC10201409-201510

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-33050iGSC10201409-201510

9010506375

main90105-06375

9011908C89

main90119-08C89

9155380618

main91553-80618

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
