ECO-RUN SYSTEM

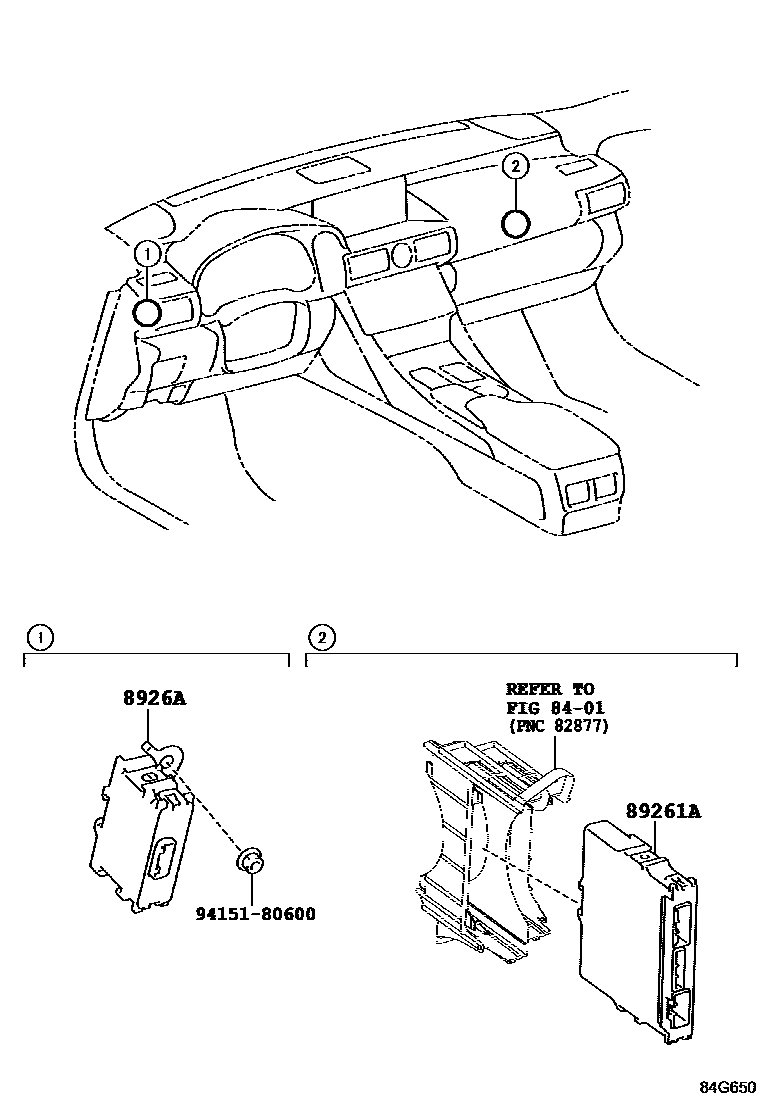

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89261ACOMPUTER, ENGINE STOP AND START

main89260-24030supersedes 89260-53020i202009-202111

INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main89260-53010i201510-201810

TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89260-53020i201810-202009

BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-53030i201812-202003

main8926A-53040i201810-202111

INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

9415180600

main94151-80600

4 parts on this diagram · 2 diagrams in section
