28800BATTERY

main28800-36080i201510-201810

S46B24L

main28800-36170i201510-201810

S-95R; S-95R,TAIWAN SPEC&WITH(STOP & START SYSTEM)

main28800-38080supersedes 28800-36141i201510-201810

80D26L; 80D26L,BRUNEI SPEC&WITHOUT(STOP & START SYSTEM); 80D26L,INDONESIA SPEC&WITHOUT(STOP & START SYSTEM); 80D26L,MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM); 80D26L,SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)

main28800-38100i201409-201510

80D26R

main28800-38101i202207-202405

80D26R

main28800-38102i202406

80D26R

main28800-28200i201510-201602

80D26R,BRAZIL SPEC

main28800-28201i201603-201810

80D26R,BRAZIL SPEC

main28800-36141supersedes 28800-38080i202111-202209

S-95,THAILAND SPEC&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

28800ATERMINAL, BATTERY POSITIVE

main90982-05060i201510-201810

main90982-05061i201409-201510

main90982-05062i201510-201810

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30640i201810-202209

main82821-50470i201510-201810

main82821-50471i202301

main82821-53090i201510-201608

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-24180i201409-201510

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i201510-201810

main82715-53660i201510-201810

28897PLATE, BATTERY CAUTION

main28897-31010i201510-201801

main28897-38060i201802-201810

28898PLATE, BATTERY

main28897-36030i201609-201810

28899INSULATOR, BATTERY

main28899-31160i201409-201510

main28899-36040i201810-202209

main28899-36110i201510-201810

main28899-38060i201409-201510

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9026905037

main90269-05037

9415180801

main94151-80801

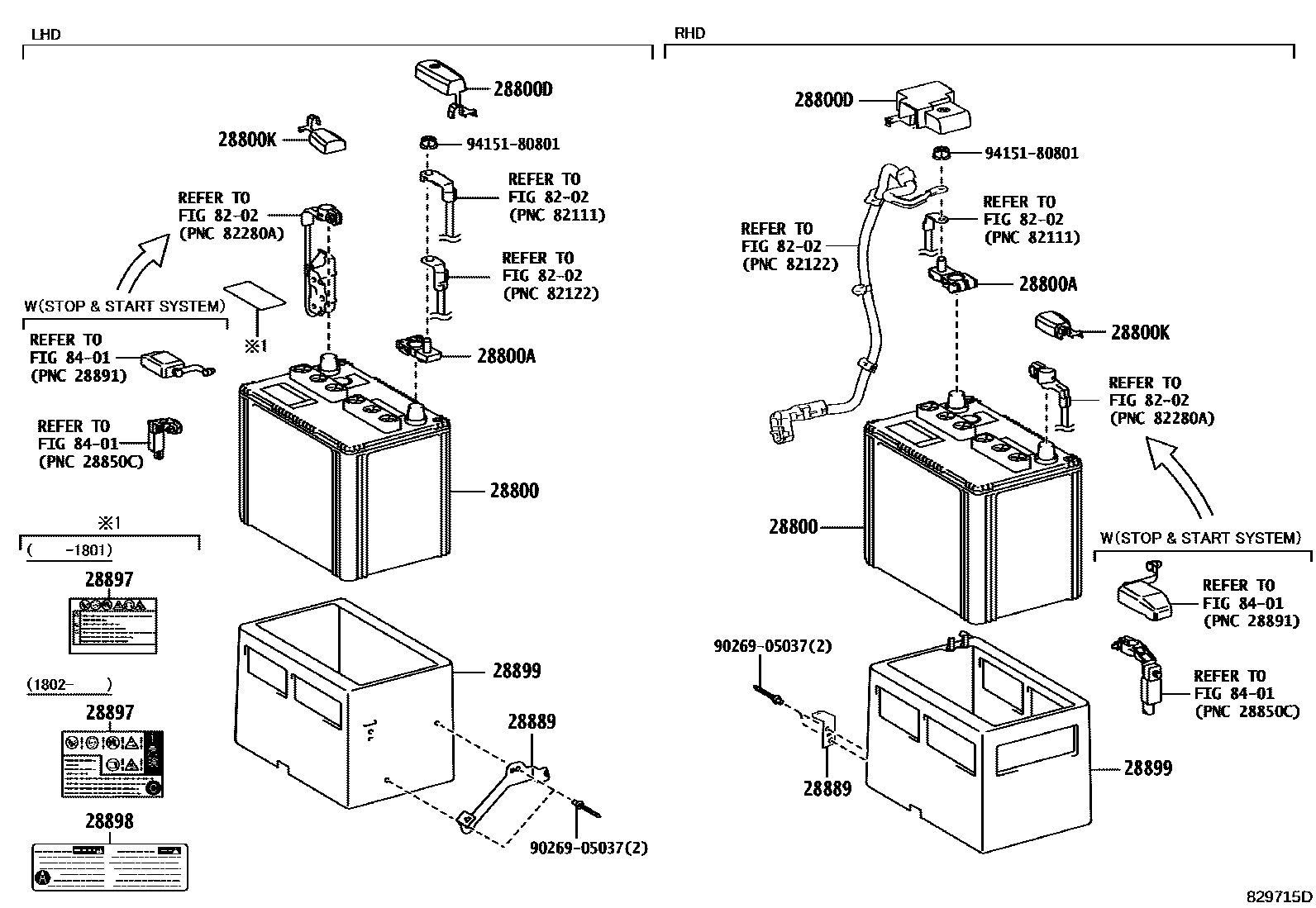

BATTERY & BATTERY CABLE
