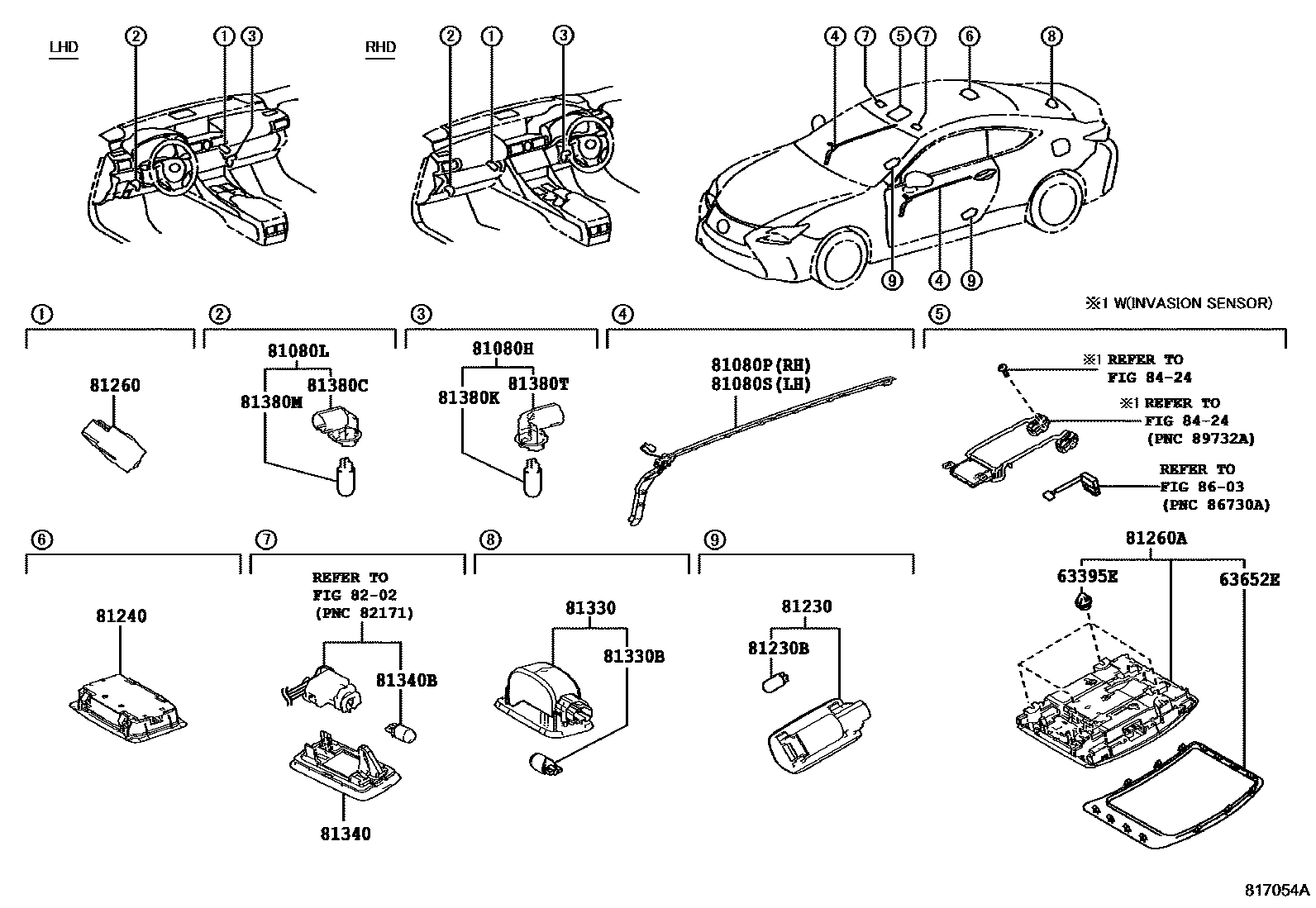

INTERIOR LAMP
63395ECLIP(FOR MAP LAMP)
NO.1
NO.2
63652ECOVER, ROOF CONSOLE BOX, NO.1
BLACK,TRIM1#,2#,3#,5#
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
FINAL EDITION
FINAL EDITION,RH
FINAL EDITION,LH
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
BLACK,TRIM0#,2#,3#,4#,5#
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main81208-24110-C0iASC10,AVC10,GSC10..ARL; ASC10,AVC10,GSC10..GCC,GEN; ASC10,AVC10..ARL201510-201609
ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
main81208-24120-C0iASC10,AVC10,GSC10..ARL,CHI; ASC10,AVC10,GSC10..GCC,GEN; ASC10,AVC10,GSC10..GEN; ASC10..GEN201510-201609
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
MAYDAY SYSTEM-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main81208-24150-C0supersedes 81208-24110-C0iASC10,AVC10,GSC10..ARL; ASC10,AVC10,GSC10..GCC,GEN; ASC10,AVC10..ARL201510-201609
ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main81208-24160-C0iASC10,AVC10,GSC10..ARL,CHI; ASC10,AVC10,GSC10..GCC,GEN; ASC10,AVC10,GSC10..GEN; ASC10..GEN201510-201609
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
MOON ROOF-WITH&MAYDAY SYSTEM-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main81208-24210-C0supersedes 81208-24010-C0iASC10,AVC10,GSC10..GCC,GEN; ASC10,AVC10,GSC10..GEN; ASC10,GSC10..ARL,CHI; ASC10..GEN201609-201711
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
MAYDAY SYSTEM-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main81208-24250-C0supersedes 81208-24210-C0iASC10,AVC10,GSC10..GCC,GEN; ASC10,AVC10,GSC10..GEN; ASC10,GSC10..ARL,CHI; ASC10..GEN201609-201711
ANTI-THEFT SYSTEM-W(SIREN & *IS & *GBS & BRAZIL TRACKING)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
MOON ROOF-WITH&MAYDAY SYSTEM-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main81208-24320-C0supersedes 81260-24620-C0iASC10,GSC10..ARL; ASC10,GSC10..GCC,GEN; ASC10,GSC10..GEN; AVC10201711-201810
ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS),BLACK,TRIM1#,2#,3#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM1#,2#,3#,5#; BLACK,TRIM1#,2#,3#,4#,5#
main81208-24360-C0supersedes 81260-24620-C0iASC10,GSC10..ARL; ASC10,GSC10..GCC,GEN; ASC10,GSC10..GEN; AVC10201711-201810
ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS),BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC),BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM0#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#
MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#
MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,5#
main81260-24670-C0supersedes 81260-24620-C0iASC10,GSC10..ARL; ASC10,GSC10..GCC,GEN; ASC10..ARL; AVC10201711-201810
ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,5#
ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN),BLACK,TRIM0#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81380CSOCKET, PLUG, NO.1
81380KBULB, INSTRUMET PANEL UNDER LAMP, NO.2
81380MBULB, INSTRUMET PANEL UNDER LAMP, NO.1
81380TSOCKET, PLUG, NO.2
8202WIRING & CLAMP
8424ANTI-THEFT DEVICE
8603NAVIGATION & FRONT MONITOR DISPLAY
22 parts on this diagram · 2 diagrams in section
