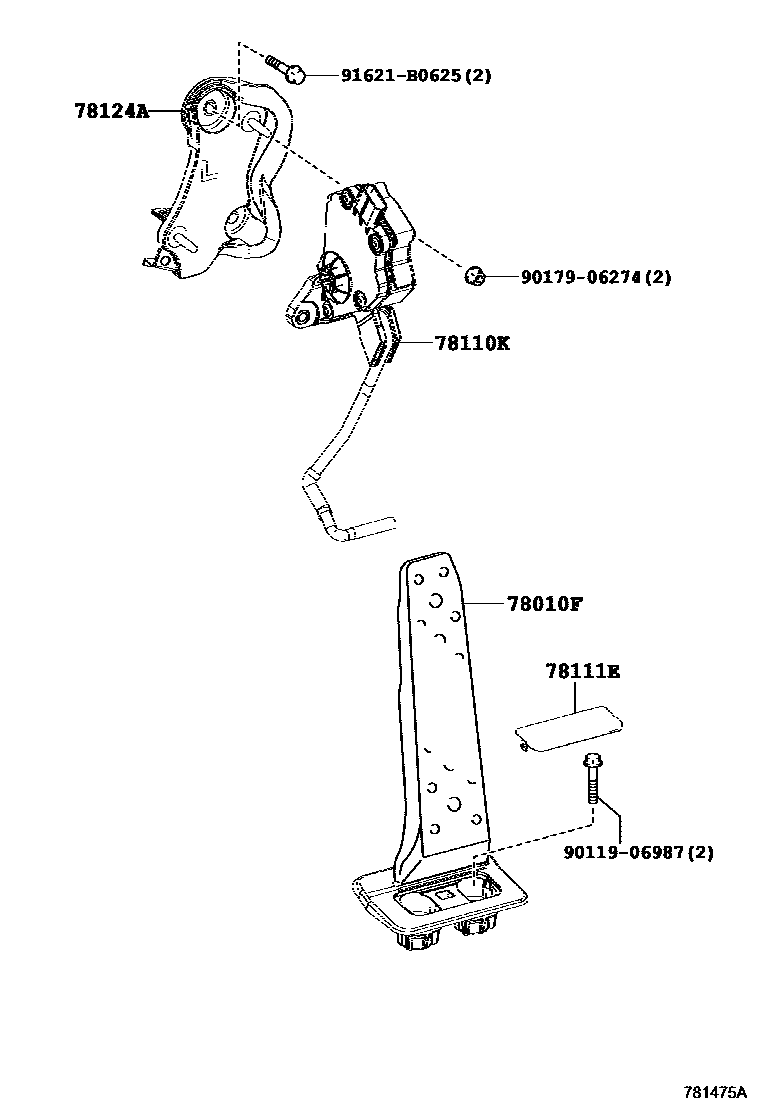

ACCELERATOR LINK

0001 1 0002 1

78010FPEDAL ASSY, ACCELERATOR

main78101-30061supersedes 78101-53051iAVC10201711-201810

main78101-53040supersedes 78101-53051iGSC10201409-201506

"F SPORT"

main78101-53041supersedes 78101-53051iGSC10201507-201510

"F SPORT"

main78101-53051supersedes 78101-30061iGSC10..GEN202111-202501

"VERSION L"

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30141iGSC10..ARL201409-201510

main78110-30151iGSC10..LHD201409-201510

main78110-30170iASC10,AVC10,GSC10..LHD201602-201810

main78110-30210iASC10,GSC10..ARL201602-201810

78111EPAD, ACCELERATOR PEDAL

main78117-30030iASC10..ARL201810-202209

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-30131iASC10,GSC10..ARL201510-201810

main78125-30081iGSC10..LHD201409-201510

9011906987

main90119-06987

9017906274

main90179-06274

91621B0625

main91621-B0625

7 parts on this diagram · 2 diagrams in section
