ARMREST & VISOR

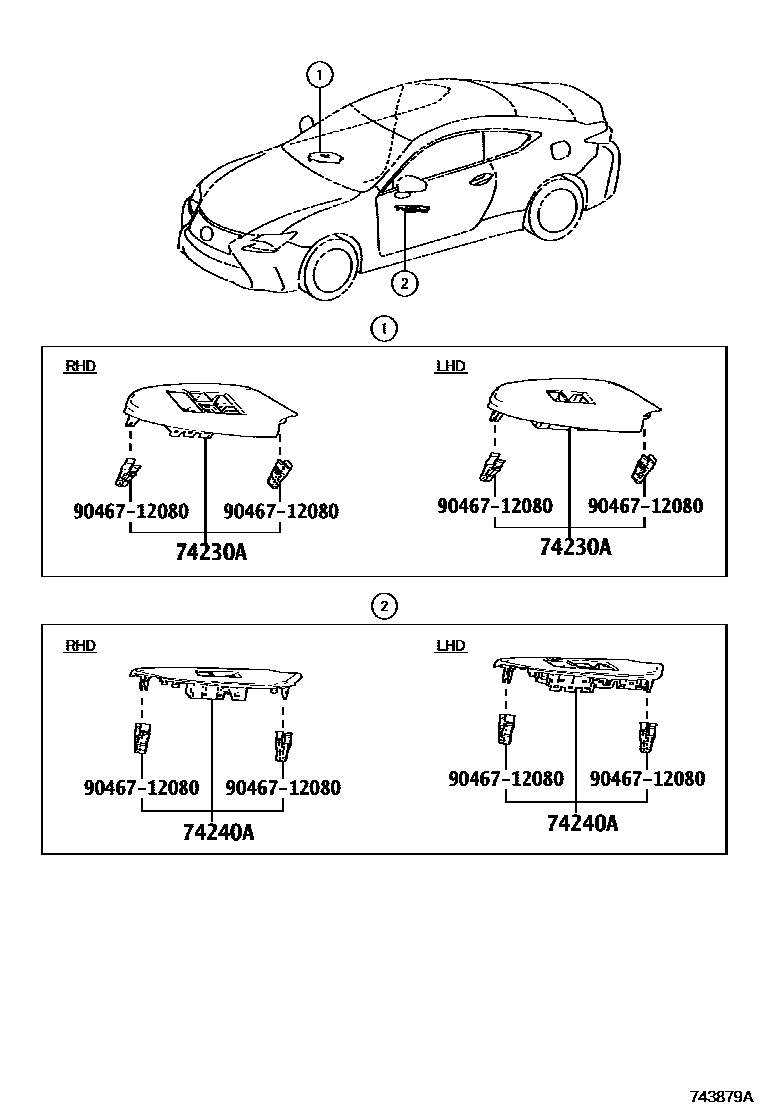

Parts diagram
74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH
main74230-24030-C2i201510-201810
"VERSION L"&GLOVE BOX ORNAMENT PANEL-BAMBOO&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK METALLIC,TRIM1#,2#,4#,5#; "VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK METALLIC,TRIM1#,2#,4#,5#; BLACK METALLIC,TRIM1#,2#,4#,5#
main74230-24040-C2i201810
"F SPORT"&FINAL EDITION&GLOVE BOX ORNAMENT PANEL-CFRP CLOTH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH,BLACK METALLIC,TRIM2#,3#,4#,5#; "F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEATMEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH,BLACK METALLIC,TRIM2#,3#,4#,5#; "VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH,BLACK METALLIC,TRIM2#,3#,4#,5#; BLACK METALLIC,TRIM2#,3#,4#,5#
main74230-24060-C0i201711-201810
SILVER,TRIM1#,2#,3#,5#
main74230-24050-C1i201409-201510
"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEATMEMORY = DRIVER SIDE),SILVER,TRIM1#,2#,3#,5#
main74230-24070-C0i201409-201510
"VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM10,20,40,50
main74230-24070-E1i201510-201608
GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.BROWN,TRIM11,21,41,51
main74230-24080-C0i201409-201510
"VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM10,20,40,50
main74230-24080-E1i201810-202111
"VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.BROWN,TRIM21,31,41,51
main74230-24090-E0supersedes 74230-24030-C2i201409-201510
"VERSION L"&GLOVE BOX ORNAMENT PANEL-BAMBOO&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BROWN,TRIM1#,2#,4#,5#
main74230-24100-E0supersedes 74230-24040-C2i201409-201510
"VERSION L"&GLOVE BOX ORNAMENT PANEL-BAMBOO&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BROWN,TRIM1#,2#,4#,5#
main74230-24110-B0i202111-202209
"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL),SILVER,TRIM0#,2#,3#,5#
main74230-24130i202501
"F SPORT"&FINAL EDITION&GLOVE BOX ORNAMENT PANEL-CFRP CLOTH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH
main74230-24180-B0i201810-202009
ARGENTINA SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWERSEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; CHILE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGEMETAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; PHILIPPINE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; TAIWAN SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; VIETNAM SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#
main74230-24190-C1i202111-202209
"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#
main74230-24200-C1i201810-202009
ARGENTINA SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; CHILE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; PHILIPPINE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; TAIWAN SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; VIETNAM SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#
main74230-24270-B0i202009-202301
"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),GINSUMI,TRIM2#
74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH
main74240-24030-C2i201510-201810
"VERSION L"&GLOVE BOX ORNAMENT PANEL-BAMBOO&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK METALLIC,TRIM1#,2#,4#,5#; "VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK METALLIC,TRIM1#,2#,4#,5#; BLACK METALLIC,TRIM1#,2#,4#,5#
main74240-24040-C2i201510-201711
BLACK METALLIC,TRIM1#,2#,4#,5#
main74240-24060-C0i201711-201810
SILVER,TRIM1#,2#,3#,5#
main74240-24050-C1i201409-201510
"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEATMEMORY = DRIVER SIDE),SILVER,TRIM1#,2#,3#,5#
main74240-24070-C0i201510-201608
GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM10,20,40,50
main74240-24070-E1i201810-202111
"VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.BROWN,TRIM21,31,41,51
main74240-24080-C0i202111-202501
"VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD,BLACK,TRIM20,30,40,50
main74240-24080-E1i201810-202111
"VERSION L"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.BROWN,TRIM21,31,41,51
main74240-24090-E0i201510-201711
"VERSION L"&GLOVE BOX ORNAMENT PANEL-BAMBOO&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BROWN,TRIM1#,2#,4#,5#
main74240-24100-E0i201510-201711
"VERSION L"&GLOVE BOX ORNAMENT PANEL-BAMBOO&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BROWN,TRIM1#,2#,4#,5#
main74240-24120-B0i201810-202111
"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEATMEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#
main74240-24150i202501
"F SPORT"&FINAL EDITION&GLOVE BOX ORNAMENT PANEL-CFRP CLOTH&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH
main74240-24160-B0i201810-202009
ARGENTINA SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWERSEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; CHILE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGEMETAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; PHILIPPINE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; TAIWAN SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#; VIETNAM SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),SILVER,TRIM0#,2#,3#,5#
main74240-24200-C1i202111-202209
"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#
main74240-24210-C1i201810-202009
ARGENTINA SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; CHILE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; PHILIPPINE SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; TAIWAN SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#; VIETNAM SPEC&"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOODLIKE(INK BLACK)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY HAIRLINE,TRIM0#,2#,3#,5#
main74240-24270-B0i202009-202301
"F SPORT"&GLOVE BOX ORNAMENT PANEL-WOOD&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),GINSUMI,TRIM2#
9046712080
main90467-12080

3 parts on this diagram · 2 diagrams in section
