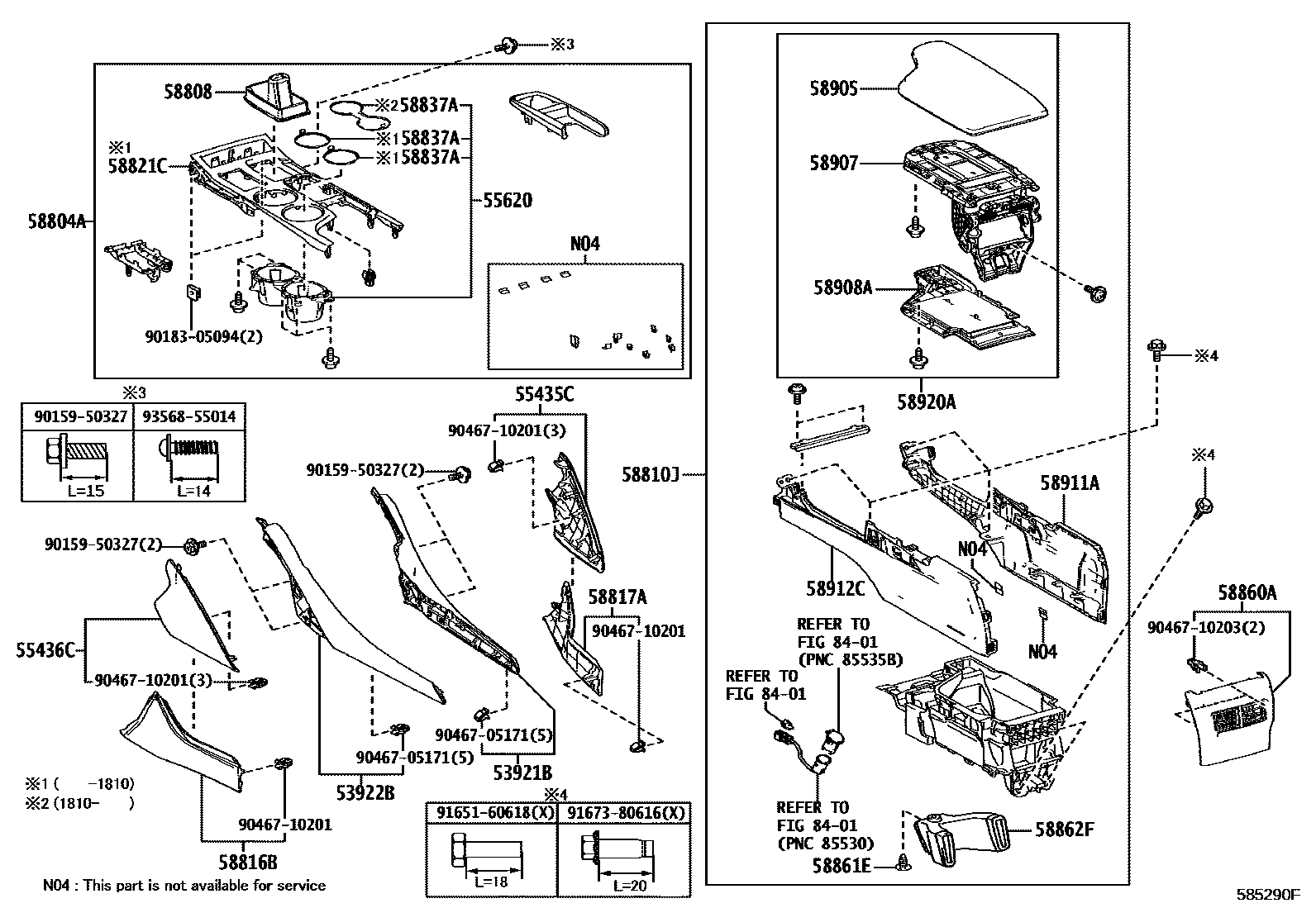

CONSOLE BOX & BRACKET
53921BGARNISH, FRONT PANEL, RH
MOON STONE/MD.GRAY,TRIM1#
BLACK/LT.GRAY,TRIM2#
DK.ROSE/BLACK,TRIM3#
TOPAZBROWN/CHOCOLATEBROWN,TRIM4#
CLOVE/SADDLE TAN,TRIM5#
WHITE,TRIM0#
WHITE/LT.GRAY,TRIM0#
BLACK/LT.GRAY,TRIM20,21,22,23,24
BLACK/LT.GRAY,TRIM2#
BLACK/BLACK/ECRU,TRIM25
BLACK/MUSTARD YELLOW,TRIM57,59
BLACK/MUSTARD YELLOW,TRIM5#
DK.ROSE,TRIM30,31,33
RED,TRIM37,39
DK.ROSE/RED,TRIM30,31,33
DK.ROSE/RED,TRIM30,31
RED/RED,TRIM37,39
RED/BLACK,TRIM38
OCHRE,TRIM4#
OCHRE,TRIM4#
CLOVE,TRIM50,51,53
53922BGARNISH, FRONT PANEL, LH
MOON STONE/MD.GRAY,TRIM1#
BLACK/LT.GRAY,TRIM2#
DK.ROSE/BLACK,TRIM3#
TOPAZBROWN/CHOCOLATEBROWN,TRIM4#
CLOVE/SADDLE TAN,TRIM5#
WHITE,TRIM0#
WHITE/LT.GRAY,TRIM0#
BLACK/LT.GRAY,TRIM2#
BLACK/LT.GRAY,TRIM20,21,22,23,24
BLACK/BLACK/ECRU,TRIM25
BLACK/MUSTARD YELLOW,TRIM57,59
BLACK/MUSTARD YELLOW,TRIM5#
DK.ROSE,TRIM30,31,33
RED,TRIM37,39
DK.ROSE/RED,TRIM30,31,33
DK.ROSE/RED,TRIM30,31
RED/RED,TRIM37,39
RED/BLACK,TRIM38
OCHRE,TRIM4#
OCHRE,TRIM4#
CLOVE,TRIM50,51,53
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
MOON STONE,TRIM1#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM2#
DK.ROSE,TRIM3#
TOPAZ BROWN,TRIM4#
CLOVE,TRIM5#
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
MOON STONE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM0#,2#,3#,4#,5#
DK.ROSE,TRIM3#
TOPAZ BROWN,TRIM4#
CLOVE,TRIM5#
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/SADDLE TAN,TRIM5#
BLACK/CHOCOLATE BROWN,TRIM4#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/SADDLE TAN,TRIM5#
BLACK/CHOCOLATE BROWN,TRIM4#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/SADDLE TAN,TRIM5#
BLACK/CHOCOLATE BROWN,TRIM4#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/SADDLE TAN,TRIM5#
BLACK/CHOCOLATE BROWN,TRIM4#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/SADDLE TAN,TRIM5#
BLACK/CHOCOLATE BROWN,TRIM4#
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK/ECRU,TRIM25
BLACK/RED,TRIM30,31,33,37,39
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM57,59
BLACK/MUSTARD YELLOW,TRIM5#
BLACK/LT.GRAY,TRIM0#,20,21,22,23,24
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK/BLACK,TRIM20,21,30,31,4#
BLACK/BLACK,TRIM20,21,23,30,31,33,4#
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/LT.GRAY,TRIM1#,2#
BLACK/LT.GRAY,TRIM0#,2#
BLACK/DK.ROSE,TRIM3#
BLACK/SADDLE TAN,TRIM5#
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK/CHOCOLATE BROWN,TRIM4#
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/RED,TRIM3#
BLACK/RED,TRIM30,31,33,37,39
BLACK/LT.GRAY,TRIM0#,2#
BLACK/LT.GRAY,TRIM0#,20,21,22,23,24
BLACK/ECRU,TRIM25
BLACK/MUSTARD YELLOW,TRIM57,59
BLACK/MUSTARD YELLOW,TRIM5#
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK/BLACK,TRIM20,21,30,31,4#
BLACK/BLACK,TRIM20,21,23,30,31,33,4#
58810JBOX ASSY, CONSOLE
BLACK/BLACK,TRIM2#
BLACK/DK.ROSE,TRIM3#
BLACK/TOPAZ BROWN,TRIM4#
BLACK/CLOVE,TRIM5#
BLACK/MOON STONE,TRIM1#
BLACK/BLACK,TRIM2#
BLACK/DK.ROSE,TRIM3#
BLACK/TOPAZ BROWN,TRIM4#
BLACK/CLOVE,TRIM5#
BLACK/MOON STONE,TRIM1#
BLACK/BLACK/LT.GRAY,TRIM2#
BLACK/DK.ROSE/DK.ROSE,TRIM3#
BLACK/TOPAZBROWN/BROWN,TRIM4#
BLACK/CLOVE/SADDLE TAN,TRIM5#
BLACK/MOON STONE/MD.GRAY,TRIM1#
BLACK/MUSTARD YELLOW,TRIM5#
BLACK/ROYAL BROWN NO.96,TRIM4#
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/LT.GRAY,TRIM0#,20,21,22,23,24
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK,TRIM0#,2#
BLACK/ECRU,TRIM25
BLACK/RED NO.55,TRIM37,39
BLAKC/RED NO.035,TRIM30,31,33
BLAKC/RED NO.035,TRIM30,31
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
58816BINSERT, CONSOLE BOX
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
58821CPANEL, CONSOLE, UPPER
58837APAD, CONSOLE BOX SILENCER, NO.2
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
58861ECLIP, CONSOLE BOX DUCT
BLACK
58862FDUCT, CONSOLE BOX, NO.2
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MOON STONE/MD.GRAY,TRIM1#
BLACK/LT.GRAY,TRIM2#
DK.ROSE/DK.ROSE,TRIM3#
TOPAZ BROWN/BROWN,TRIM4#
CLOVE/SADDLE TAN,TRIM5#
MOON STONE/MOON STONE,TRIM1#
WHITE/MOON STONE,TRIM2#
DK.ROSE/DK.ROSE,TRIM3#
TOPAZ BROWN.TOPAZ BROWN,TRIM4#
CLOVE/CLOVE,TRIM5#
BLACK/RED NO.035,TRIM30,31
BLACK/RED NO.035,TRIM30,31,33
BLACK/MUSTARD YELLOW,TRIM5#
BLACK/ROYAL BROWN NO.96,TRIM4#
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/LT.GRAY,TRIM0#,20,21,22,23,24
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK,TRIM0#,2#
BLACK/ECRU,TRIM25
BLACK/RED NO.55,TRIM37,39
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
58920AARMREST ASSY, REAR CONSOLE
MOON STONE/BLACK,TRIM1#
BLACK/BLACK,TRIM2#
DK.ROSE/BLACK,TRIM3#
TOPAZ BROWN/BLACK,TRIM4#
CLOVE/BLACK,TRIM5#
MOONSTONE/BLACK/MD.GRAY,TRIM1#
BLACK/BLACK/LT.GRAY,TRIM2#
DK.ROSE/BLACK/DK.ROSE,TRIM3#
TOPAZ BROWN/BLACK/BROWN,TRIM4#
CLOVE/BLACK/SADDLETAN,TRIM5#
BLACK/RED NO.035,TRIM30,31,33
BLACK/RED NO.035,TRIM30,31
BLACK/MUSTARD YELLOW,TRIM5#
BLACK/ROYAL BROWN NO.96,TRIM4#
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/LT.GRAY,TRIM0#,20,21,22,23,24
BLACK/SADDLE TAN,TRIM4#,50,51,53
BLACK,TRIM0#,2#
BLACK/ECRU,TRIM25
BLACK/RED NO.55,TRIM37,39
BLACK/RED,TRIM3#
BLACK/MUSTARD YELLOW,TRIM55,56,57,59
BLACK/LT.GRAY,TRIM0#,2#
BLACK/SADDLE TAN,TRIM4#,50,51,53
8401SWITCH & RELAY & COMPUTER
9015950327
main90159-50327
9018305094
main90183-05094
9046705171
main90467-05171
9046710201
main90467-10201
9046710203
main90467-10203
9165160618
main91651-60618
9167380616
main91673-80616
9356855014
main93568-55014
30 parts on this diagram · 2 diagrams in section
