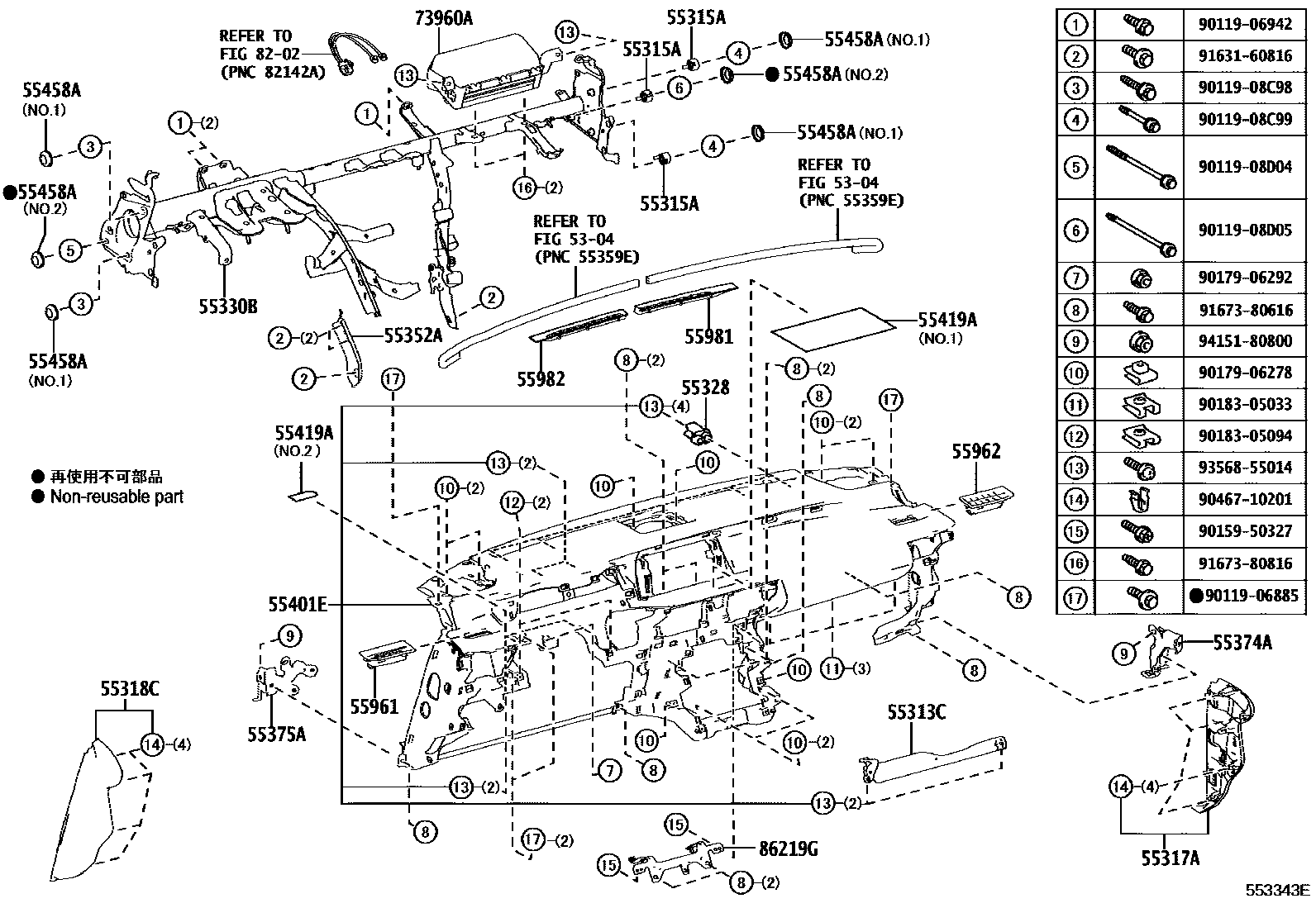

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1 0007 1 0008 1DRIVER SIDE 0009 1CENTER 0010 1PASSENGER SIDE

5304

55313CBRACKET, GLOVE COMPARTMENT

main55313-53030iGSC10..LHD201409-201510

main55313-53040iASC10,GSC10..ARL201510-201810

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×3iAVC10..GEN;ASC10,GSC10201510-201810

55317APANEL, INSTRUMENT SIDE, RH

main55317-53100-C0iGSC10..LHD201409-201510

BLACK,TRIM1#,2#,3#,4#,5#

main55317-53140-C1iASC10,GSC10..LHD202301

BLACK,TRIM0#,2#,3#,4#,5#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-53070-C0iGSC10..LHD201409-201510

BLACK,TRIM1#,2#,3#,4#,5#

main55318-53080-C0supersedes 55318-53070-C0iASC10,GSC10..ARL202111-202209

BLACK,TRIM0#,2#,3#,4#,5#

main55318-53110-C1iASC10,GSC10..LHD202301

BLACK,TRIM0#,2#,3#,4#,5#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iAVC10..GEN;ASC10,GSC10201510-201810

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53350supersedes 55330-53340iAVC10..ARL201510-201608

main55330-53360iASC10..LHD;GSC10..GCC201810-202301

main55330-53370supersedes 55330-53360iASC10,GSC10..LHD201711-201810

STEERING COLUMN-POWER

main55330-53390supersedes 55330-53380iASC10,GSC10..ARL201810-201911

main55330-53391iASC10,GSC10..ARL201912-202209

main55330-53410supersedes 55330-53400iGSC10..GEN202301

STEERING COLUMN-POWER(AVS)

main55330-53330supersedes 55330-53320iGSC10..LHD201409-201510

STEERING COLUMN-POWER

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-53070iGSC10201409-201510

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55375-53060iGSC10201409-201510

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55374-53030iASC10,GSC10..ARL201810-202209

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-53901-C0iASC10,AVC10,GSC10..LHD201510-201512

BLACK,TRIM1#,2#,3#,4#,5#

main55401-53902-C0iGSC10..ARL201409-201510

BLACK,TRIM1#,2#,3#,4#,5#

main55401-53903-C0iASC10,AVC10,GSC10..LHD201512-201810

BLACK,TRIM1#,2#,3#,4#,5#

main55401-53904iASC10..CHI,GEN201912-202009

main55401-53904-C0iASC10..GCC;GSC10..LHD201912-202301

BLACK,TRIM0#,2#,3#,4#,5#

main55401-53905-C0iASC10,GSC10..ARL201912-202209

BLACK,TRIM0#,2#,3#,4#,5#

main55401-53906-C1iGSC10..GEN202301

BLACK/RED(F SPORT),TRIM37,38,39

main55401-53906-C2iASC10,GSC10..LHD202301

BLACK/LT.GRAY,TRIM0#,2#

main55401-53906-C4iASC10,GSC10..GCC202301

BLACK/RED,TRIM30,31,33

main55401-53906-C7iASC10,GSC10..GCC202301

BLACK/BLACK/ROYAL BROWN,TRIM4#

main55401-53906-C8iASC10,GSC10..LHD202301

BLACK/MUSTARD YELLOW,TRIM5#

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-53030iGSC10201409-201510

NO.1:REFER ILLUST.

main55419-53040iAVC10..GEN;ASC10,GSC10201510-201810

NO.2:REFER ILLUST.

main55419-53090iASC10,GSC10..LHD202301

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×4iGSC10201409-201510

NO.1:REFER ILLUST.

main55458-53011×2iASC10,GSC10..LHD201810

NO.2:REFER ILLUST.

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-53010iASC10..CHI,GEN201912-202009

main55961-53010-C0iASC10..GCC;GSC10..LHD201810-202301

BLACK,TRIM0#,2#,3#,4#,5#

main55961-53020-C0iASC10,AVC10,GSC10..ARL201510-201810

BLACK,TRIM1#,2#,3#,4#,5#

main55961-53030-C1iASC10,GSC10..LHD202301

BLACK,TRIM0#,2#,3#,4#,5#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-53030iASC10..CHI,GEN201912-202009

main55962-53030-C0iASC10..GCC;GSC10..LHD201810-202301

BLACK,TRIM0#,2#,3#,4#,5#

main55962-53040-C0iGSC10..ARL201409-201508

BLACK,TRIM0#,1#,2#,3#,4#,5#

main55962-53050-C1iASC10,GSC10..LHD202301

BLACK,TRIM0#,2#,3#,4#,5#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-53020-C0iASC10,GSC10..LHD202301

BLACK,TRIM0#,2#,3#,4#,5#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-53010-C0iASC10,AVC10,GSC10201510-201810

BLACK,TRIM1#,2#,3#,4#,5#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-53050iAVC10..GEN;ASC10,GSC10201510-201804

main73960-53051iASC10,GSC10..LHD201810-202301

sub73960-53052

main73960-53081iASC10,GSC10..LHD202301

8202

86219GBRACKET, SPEAKER

main86219-53010iASC10,GSC10..ARL201810-202209

9011906885

main90119-06885

9011906942

main90119-06942

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9011908D04

main90119-08D04

9011908D05

main90119-08D05

9015950327

main90159-50327

9017906278

main90179-06278

9017906292

main90179-06292

9018305033

main90183-05033

9018305094

main90183-05094

9046710201

main90467-10201

9163160816

main91631-60816

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

37 parts on this diagram · 10 diagrams in section
