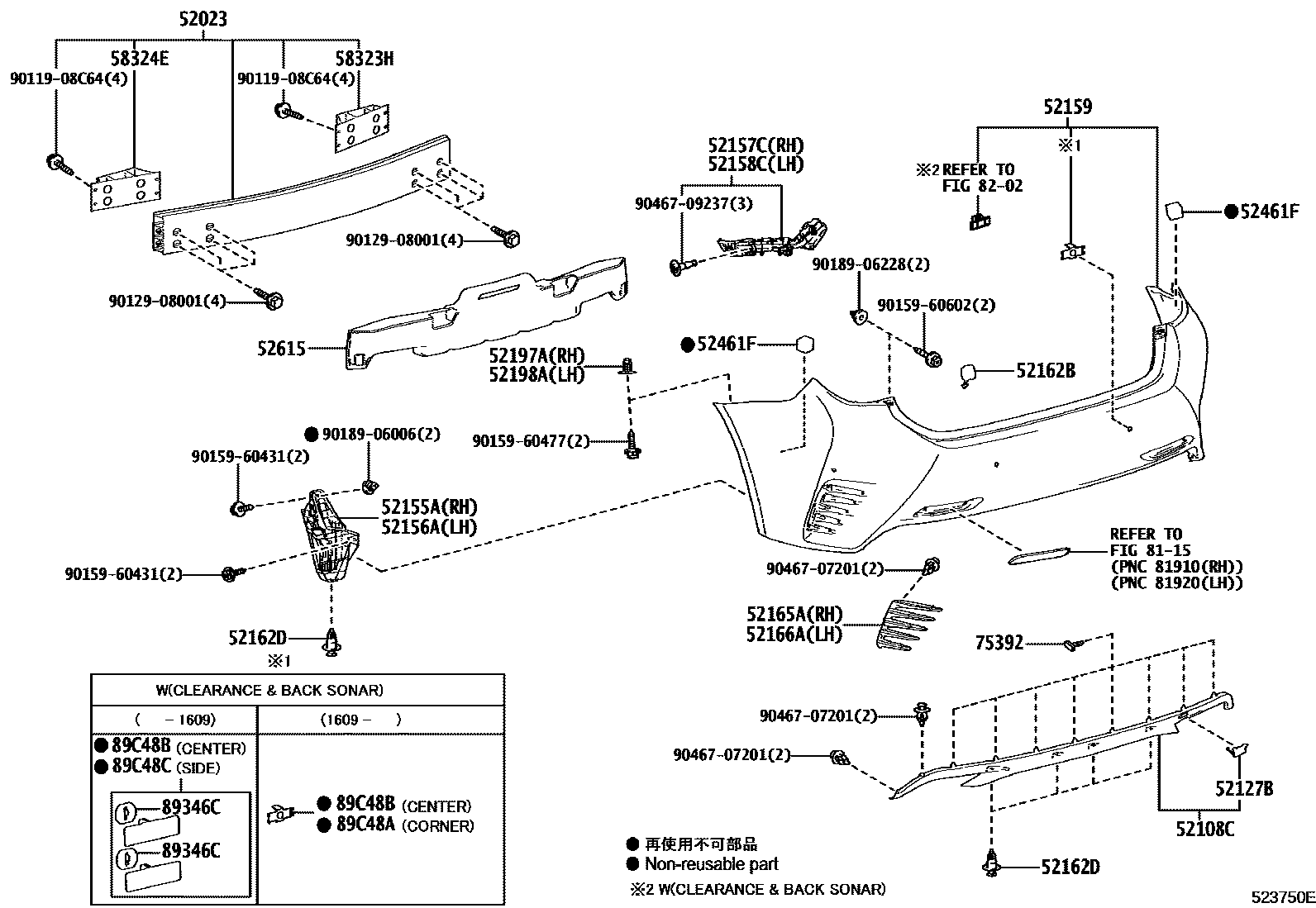

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-53090iGSC10201409-201510

main52023-53091iASC10..ARL202109-202209

52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER

main52108-24020iGSC10201409-201510

52127BCOVER, REAR BUMPER HOLE, RH

main52161-24020iGSC10201409-201510

main52161-24050iASC10..ARL201810-202209

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-24020iGSC10201409-201510

main52155-24030iASC10..ARL201810-202209

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-24010iGSC10201409-201510

main52156-24020iGSC10;ASC10..LHD201810

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-24010iGSC10201409-201510

main52157-24020iASC10..ARL201810-202209

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-24010iGSC10201409-201510

main52158-24020iASC10..ARL201810-202209

52159COVER, REAR BUMPER

main52159-24921iASC10,AVC10,GSC10201510-201810

PAINT REQ.

main52159-24924iASC10,AVC10,GSC10201510-201609

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52159-24935iASC10,AVC10,GSC10201609-201810

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52159-24939supersedes 52159-24941iASC10..ARL201810-202209

CLEARANCE & BACK SONAR-WITH

52162BPLATE, REAR BUMPER, NO.1

main52162-53020-A2×2iGSC10201409-201510

WHITE PEARL CS.,077

main52162-53020-A3×2iASC10,AVC10,GSC10..ARL,CHI,GEN; ASC10,GSC10..GCC201510-201810

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083; WHITE NOVA GF.,083

main52162-53020-A4×2iASC10..ARL201810-202209

SONIC QUARTZ,085

main52162-53020-B6×2iASC10..ARL;GSC10..ARL,GEN; ASC10..LHD;GSC10..GCC201810-202009

MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9 ,8X1

main52162-53020-B8×2iGSC10201409-201510

PLATINUM SILVER ME.,1J4

main52162-53020-B9×2iASC10..ARL201810-202209

SONIC TITANIUM,1J7

main52162-53020-C1×2iGSC10;ASC10..LHD201810

BLACK,212

main52162-53020-C2×2iASC10,AVC10,GSC10201510-201609

STARLIGHT BLACK GF.,217

main52162-53020-C4×2iGSC10;ASC10..LHD201810

GRAPHITE BLACK GF.,223

main52162-53020-D4×2iASC10..ARL201810-202209

RED,3T5

main52162-53020-E6×2iASC10,GSC10..ARL,CHI,GEN; ASC10,GSC10..GCC201810-201911

CLEARANCE & BACK SONAR-WITH,ORANGE,3T5 ,4W7; ORANGE,4W7

main52162-53020-F1×2iASC10,AVC10,GSC10..ARL,CHI,GEN; ASC10,GSC10..GCC201711-201810

CLEARANCE & BACK SONAR-WITH,NAPLES YELLOW,5C1; NAPLES YELLOW,5C1

main52162-53020-J8×2iASC10,GSC10..GCC; ASC10..CHI,GEN;GSC10..ARL,GEN201810

BLUE,8X1; CLEARANCE & BACK SONAR-WITH,BLUE,5C1 ,8X1

main52162-53020-P1×2iGSC10;ASC10..GCC202009

SONIC CHROME,1L1

main52162-53020-P2×2iASC10..ARL202111-202209

TITANIUM CARBIDE GRAY,1L8

main52162-53020-R0×2iASC10,GSC10201810-202009

SPARKLING METEOR ME.,8X9

main52162-53020-R1×2iASC10..ARL202009-202209

CELESTIAL BLUE GF.,8Y6

main52162-53020-P3×2iASC10,GSC10..GCC202501

CLEARANCE & BACK SONAR-WITH,SONIC IRIDIUM,1L2

52162DPIECE, REAR BUMPER

main52161-16010×6iGSC10;ASC10..LHD201810

52165ACOVER, REAR BUMPER, UPR RH

main52165-24010iGSC10201409-201510

NO PAINT REQ.

52166ACOVER, REAR BUMPER, UPR LH

main52166-24010iGSC10201409-201510

NO PAINT REQ.

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iGSC10201409-201510

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iGSC10201409-201510

52461FPAD, REAR BUMPER

main52462-53030×2iGSC10201409-201510

52615ABSORBER, REAR BUMPER ENERGY

main52615-24080iGSC10201409-201510

main52615-24090iASC10,GSC10..ARL201810-202209

58323HREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-53070iGSC10201409-201510

main58323-53071iASC10,GSC10..ARL202109-202209

58324EREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-53070iGSC10201409-201510

main58324-53071iASC10,GSC10..ARL202109-202209

75392RETAINER, OUTSIDE MOULDING

main75392-35220×16iGSC10;ASC10..LHD201810

main75392-50070×8iGSC10201409-201510

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8202WIRING & CLAMP

→ Go to FIG 82-02

89346CADJUSTER, ULTRASONIC SENSOR

main89346-33010×8iGSC10201409-201510

CLEARANCE & BACK SONAR-WITH

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-78020×2iASC10..ARL201810-202209

"F SPORT"&CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-33110×2iGSC10201409-201510

CLEARANCE & BACK SONAR-WITH

main89348-78020×2iASC10,AVC10,GSC10201609-201810

CLEARANCE & BACK SONAR-WITH

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

main89348-33110×2iGSC10201409-201510

CLEARANCE & BACK SONAR-WITH

9011908C64

main90119-08C64

9012908001

main90129-08001

9015960431

main90159-60431

9015960477

main90159-60477

9015960602

main90159-60602

9018906006

main90189-06006

9018906228

main90189-06228

9046707201

main90467-07201

9046709237

main90467-09237

34 parts on this diagram · 2 diagrams in section
