48131SPRING, FRONT COIL, RH

main48131-24610i201510-201810

main48131-24611i202002-202209

main48131-24630i201510-201810

48132SPRING, FRONT COIL, LH

main48131-24610i201510-201810

main48131-24611i202002-202209

main48131-24630i201510-201608

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-30090i201510-201810

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-30090i201510-201810

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020i201510-201810

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020i201510-201810

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80724supersedes 48510-80A63i201711-201801

MARK 48510-24380

main48510-80787i201510-201810

MARK 48510-24430

main48510-80A06supersedes 48510-80A05i201801-201810

MARK 48510-24381; MARK 48510-24381,"F SPORT"; MARK 48510-24381,"VERSION L"

main48510-80A62i201810-202009

MARK 48510-24450; MARK 48510-24450,BRUNEI SPEC&"VERSION L"; MARK 48510-24450,MACAU SPEC&"VERSION L"; MARK 48510-24450,MALAYSIA SPEC&"VERSION L"; MARK 48510-24450,SINGAPORE SPEC&"VERSION L"; MARK 48510-24450,SOUTH AFRICA SPEC&"VERSION L"; MARK 48510-24450,THAILAND SPEC&"VERSION L"

main48510-80B61supersedes 48510-80A63i202009-202111

MARK 48510-24451

main48510-80722i201510-201801

MARK 48510-24340; MARK 48510-24340,BRUNEI SPEC&"VERSION L"; MARK 48510-24340,HONG KONG SPEC&"VERSION L"; MARK 48510-24340,INDONESIA SPEC&"VERSION L"; MARK 48510-24340,MACAU SPEC&"VERSION L"; MARK 48510-24340,MALAYSIA SPEC&"VERSION L"; MARK 48510-24340,SINGAPORE SPEC&"VERSION L"; MARK 48510-24340,SOUTH AFRICA SPEC&"VERSION L"; MARK 48510-24340,THAILAND SPEC&"VERSION L"

main48510-80A05i201801-201810

MARK 48510-24341; MARK 48510-24341,BRUNEI SPEC&"VERSION L"; MARK 48510-24341,HONG KONG SPEC&"VERSION L"; MARK 48510-24341,INDONESIA SPEC&"VERSION L"; MARK 48510-24341,MACAU SPEC&"VERSION L"; MARK 48510-24341,MALAYSIA SPEC&"VERSION L"; MARK 48510-24341,SINGAPORE SPEC&"VERSION L"; MARK 48510-24341,SOUTH AFRICA SPEC&"VERSION L"; MARK 48510-24341,THAILAND SPEC&"VERSION L"

main48510-80A63i201810-202111

MARK 48510-24470,"F SPORT"

main48510-80C20supersedes 48510-80C21i202210-202501

MARK 48510-24500,"VERSION L"

main48510-80C21supersedes 48510-80C20i202210

MARK 48510-24510; MARK 48510-24510,"F SPORT"

48519BBRACKET, ACTUATOR SUPPORT, FRONT RH

main48519-30030i201711-201810

48519CBRACKET, ACTUATOR SUPPORT, FRONT LH

main48519-30030i201711-201810

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80408supersedes 48520-80406i201711-201801

MARK 48520-24110

main48520-80463i201510-201810

MARK 48520-24160

main48520-80572supersedes 48520-80571i201801-201810

MARK 48520-24111; MARK 48520-24111,"F SPORT"; MARK 48520-24111,"VERSION L"

main48520-80622i201810-202009

MARK 48520-24180; MARK 48520-24180,BRUNEI SPEC&"VERSION L"; MARK 48520-24180,MACAU SPEC&"VERSION L"; MARK 48520-24180,MALAYSIA SPEC&"VERSION L"; MARK 48520-24180,SINGAPORE SPEC&"VERSION L"; MARK 48520-24180,SOUTH AFRICA SPEC&"VERSION L"; MARK 48520-24180,THAILAND SPEC&"VERSION L"

main48520-80719supersedes 48520-80623i202009-202111

MARK 48520-24181

main48520-80406i201510-201801

MARK 48520-24090; MARK 48520-24090,BRUNEI SPEC&"VERSION L"; MARK 48520-24090,HONG KONG SPEC&"VERSION L"; MARK 48520-24090,INDONESIA SPEC&"VERSION L"; MARK 48520-24090,MACAU SPEC&"VERSION L"; MARK 48520-24090,MALAYSIA SPEC&"VERSION L"; MARK 48520-24090,SINGAPORE SPEC&"VERSION L"; MARK 48520-24090,SOUTH AFRICA SPEC&"VERSION L"; MARK 48520-24090,THAILAND SPEC&"VERSION L"

main48520-80571i201801-201810

MARK 48520-24091; MARK 48520-24091,BRUNEI SPEC&"VERSION L"; MARK 48520-24091,HONG KONG SPEC&"VERSION L"; MARK 48520-24091,INDONESIA SPEC&"VERSION L"; MARK 48520-24091,MACAU SPEC&"VERSION L"; MARK 48520-24091,MALAYSIA SPEC&"VERSION L"; MARK 48520-24091,SINGAPORE SPEC&"VERSION L"; MARK 48520-24091,SOUTH AFRICA SPEC&"VERSION L"; MARK 48520-24091,THAILAND SPEC&"VERSION L"

main48520-80623i201810-202110

MARK 48520-24200,"VERSION L"

main48520-80770supersedes 48520-80771i202210-202501

MARK 48520-24230,"VERSION L"

main48520-80771supersedes 48520-80770i202210

MARK 48520-24240; MARK 48520-24240,"F SPORT"

48553CAP, SHOCK ABSORBER, UPPER

main48553-30100×2i201711-201810

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6i201711-201810

48553FCAP

main48553-52030×2i202009-202209

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6i201510-201608

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-24090×2supersedes 48680-24100i201810-202301

main48680-24100×2supersedes 48680-24090i201711-201810

main48680-53100×2supersedes 48680-53110i202301-202501

"VERSION L"

main48680-53110×2supersedes 48680-53100i202301

"F SPORT"

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30090i201810-202209

48811BAR, STABILIZER, FRONT

main48811-24140i201409-201510

main48811-30840i201711-201810

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-24100i201510-201608

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-24100i201810-202209

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4i201510-201608

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30110i201810-202209

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30130i201810

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30150i201810-202209

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30150i201510-201608

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30130i201409-201510

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020×2i201510-201608

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9011910965

main90119-10965

9017712002

main90177-12002

9017914045

main90179-14045

91672L1490

main91672-L1490

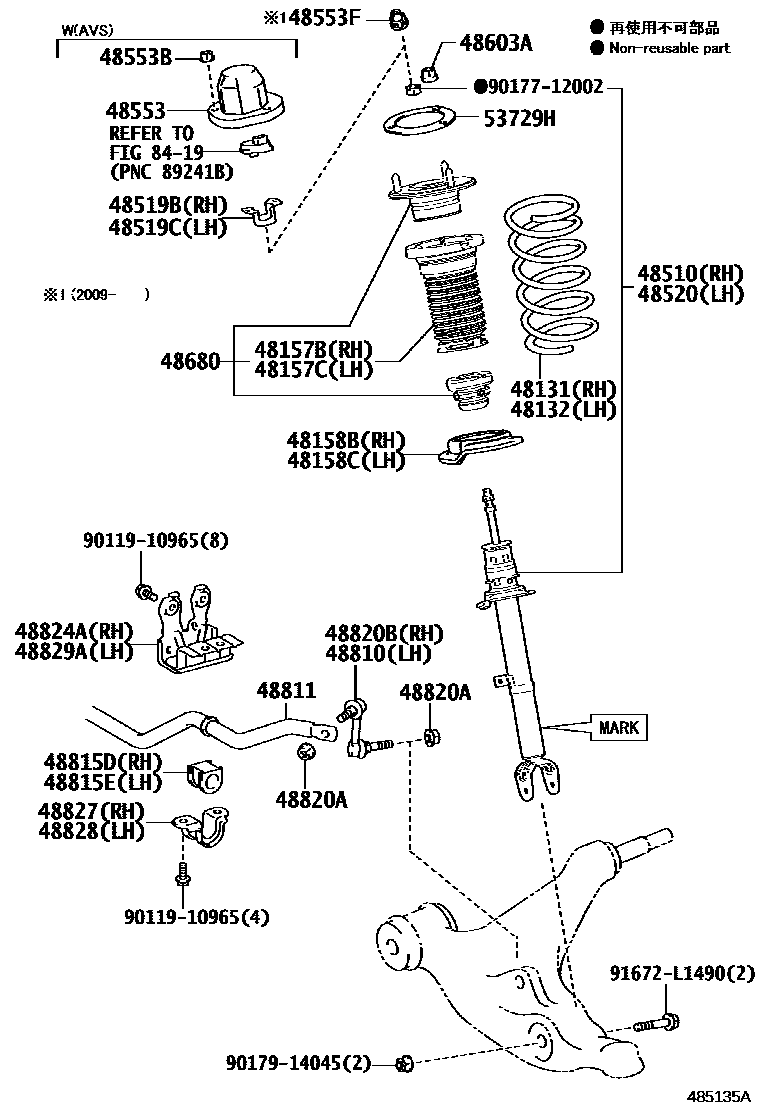

FRONT SPRING & SHOCK ABSORBER
