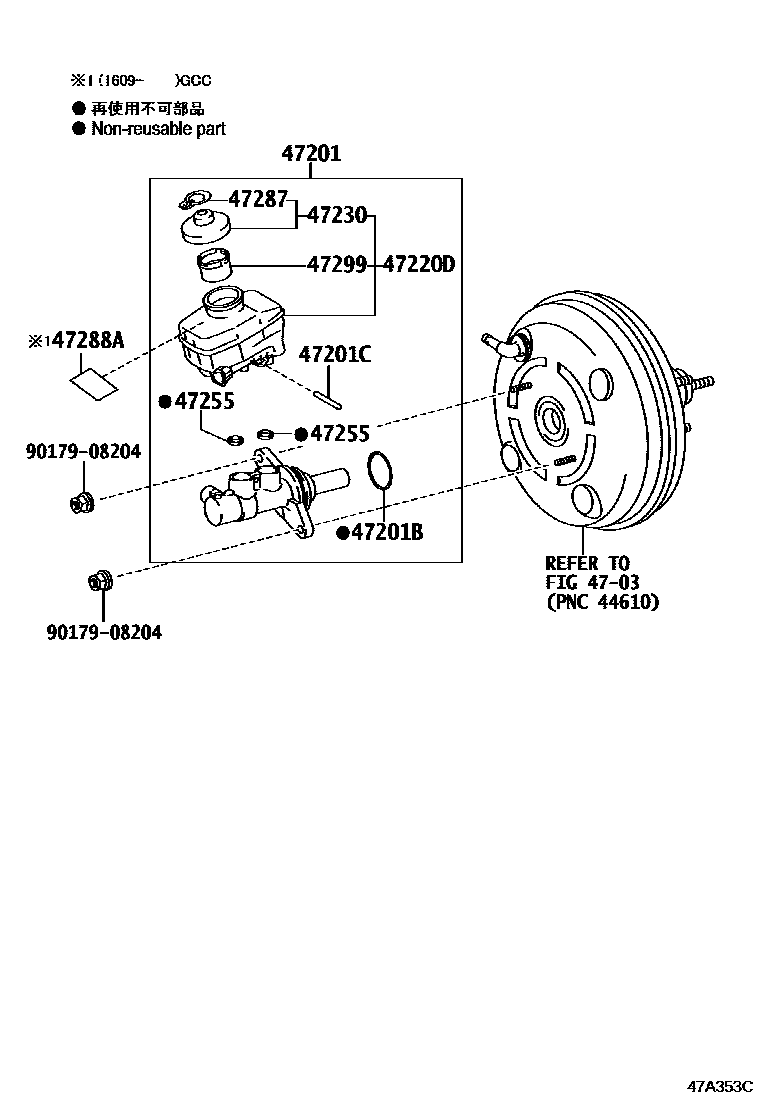

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30792iGSC10..ARL201510-201711

main47201-30822iGSC10..LHD201409-201510

main47201-30830iAVC10..ARL201510-201608

main47201-30840iAVC10..GEN201510-201810

main47201-30870iASC10,GSC10..LHD201711-201810

main47201-30880iASC10,GSC10..ARL201711-201810

main47201-53290iASC10..LHD201510-201711

main47201-53300iASC10..ARL201510-201711

main47201-53310iASC10,GSC10..ARL202111-202209

main47201-53320iASC10,GSC10..LHD202111

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGSC10201409-201510

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSC10;ASC10..LHD201810

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30210iASC10,GSC10..ARL201510-201810

main47220-30220iGSC10..LHD201409-201510

main47220-30230iAVC10..ARL201510-201608

main47220-30240iAVC10..GEN201510-201810

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iASC10..ARL201810-202209

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iGSC10;ASC10..LHD201810

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASC10..ARL201810-202209

main47287-20010supersedes 47287-02360iASC10..ARL201510-201711

47288ALABEL, BRAKE FLUID NOTICE

main47288-71010iASC10,GSC10..GCC201609-201810

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASC10..ARL201810-202209

main47299-30190iAVC10..ARL201510-201608

9017908204

main90179-08204

11 parts on this diagram · 4 diagrams in section
