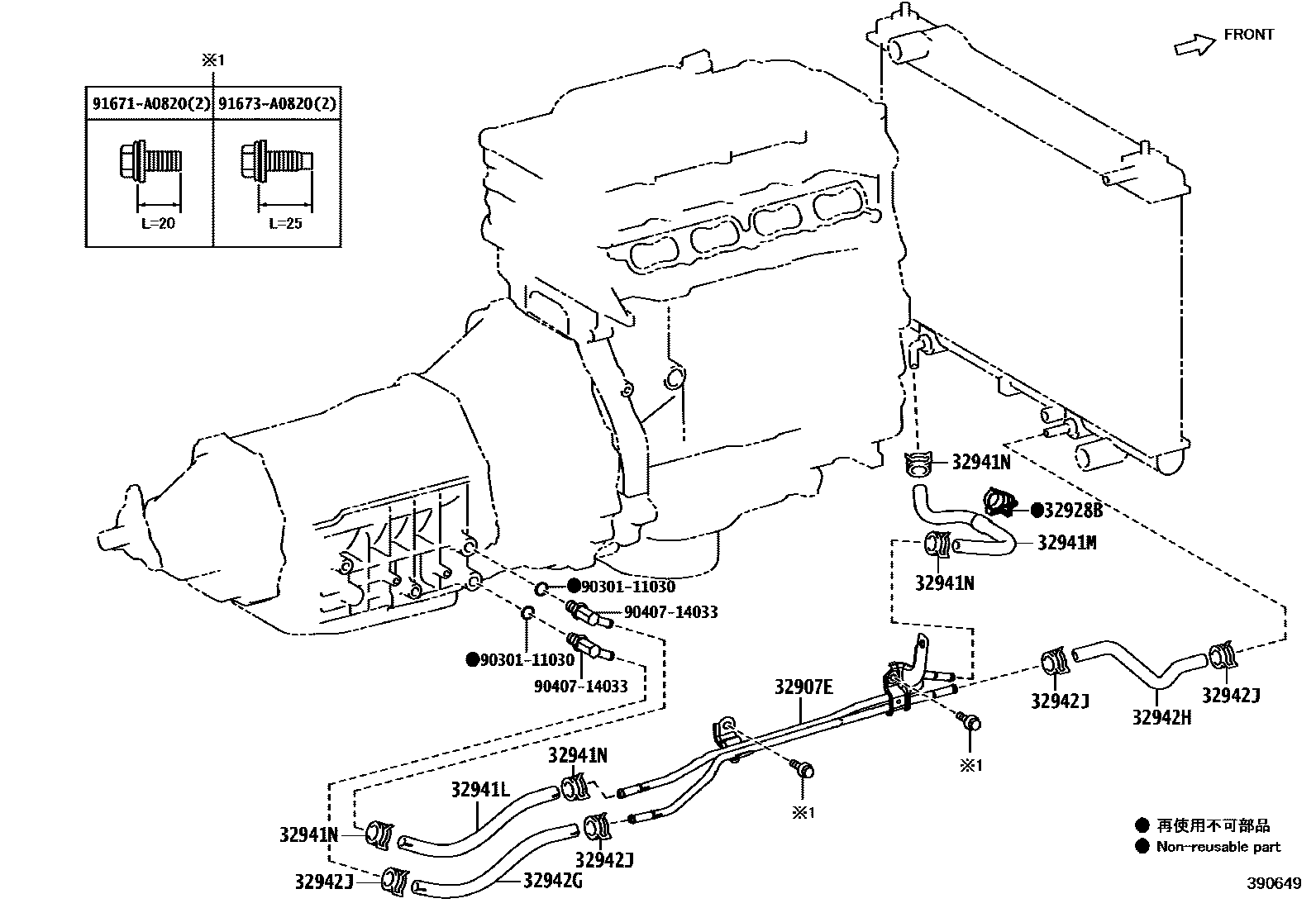

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32907-30110iAVC10..ARL201510-201608

32928BCLAMP, FLEXIBLE HOSE, NO.1

main32928-30120iAVC10..ARL201510-201608

32941LHOSE, OIL COOLER INLET, NO.1

main32941-30340iAVC10..ARL201510-201608

32941MHOSE, OIL COOLER INLET, NO.2

main32941-30360iAVC10..ARL201510-201608

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×4iAVC10..ARL201510-201608

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-30230iAVC10..ARL201510-201608

32942HHOSE, OIL COOLER OUTLET, NO.2

main32942-30250iAVC10..ARL201510-201608

32942JCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×4iAVC10..ARL201510-201608

9030111030

main90301-11030

9040714033

main90407-14033

91671A0820

main91671-A0820

91673A0820

main91673-A0820

12 parts on this diagram · 1 diagram in section
