V-BELT

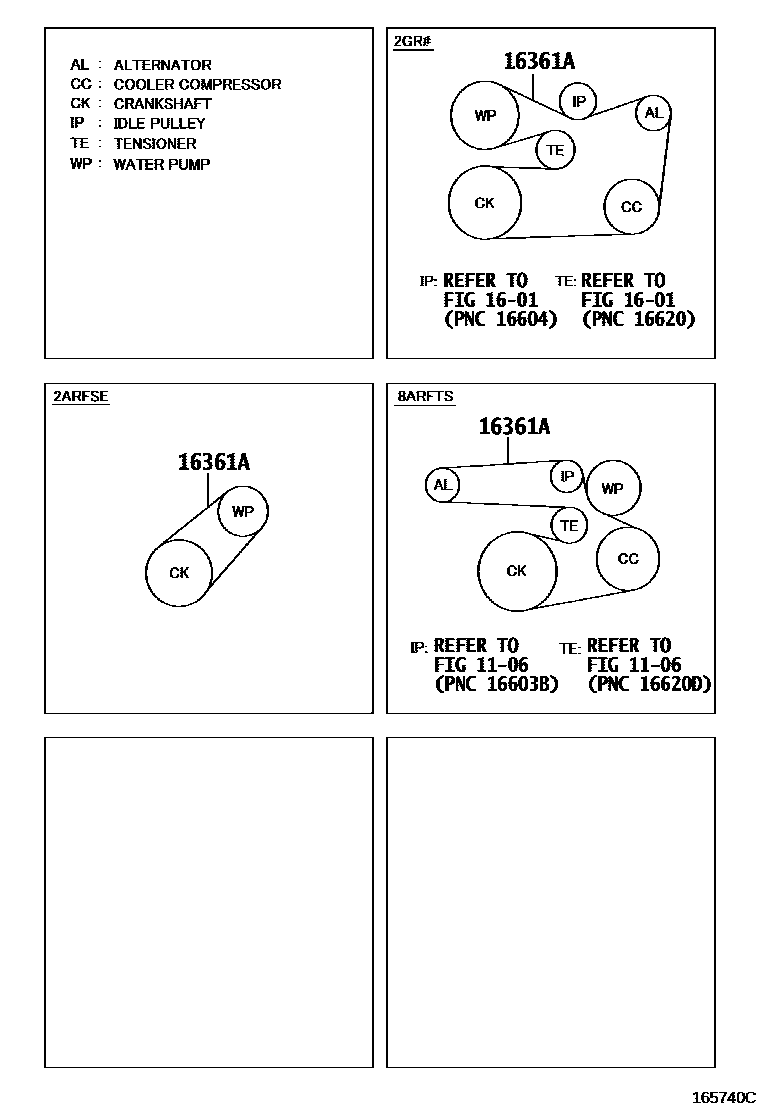

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02714i201510-201511

main90916-02728i201810

main90916-02733i201810

main90916-02742i201512-201810

main99367-C1550i201409-201510

main99367-K1550i201611-201711

3 parts on this diagram · 1 diagram in section
