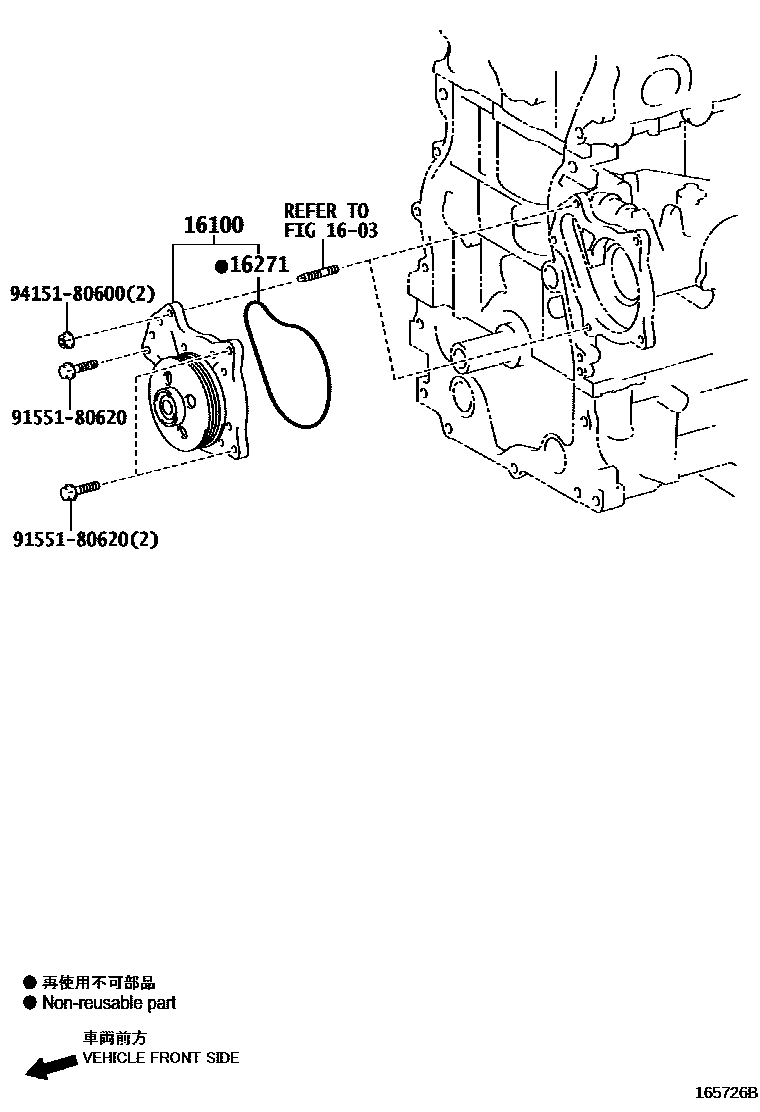

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GRF..GSC10201409-201510

main16100-39575i2ARFSE..AVC10..ARL201510-201608

main16100-39595i8ARFTS..ASC10201510-201810

main16100-39615i2GRF..GSC10201711-201810

main16100-39616i2GRF..GSC10..LHD202004

16271GASKET, WATER PUMP

main16271-31020i2GRF..GSC10201409-201510

main16271-31050i2GRF..GSC10201711-201810

main16271-36030i2ARFSE..AVC10..ARL201510-201608

main16271-36040i8ARFTS..ASC10..ARL201810-202209

9155180620

main91551-80620

9415180600

main94151-80600

5 parts on this diagram · 4 diagrams in section
