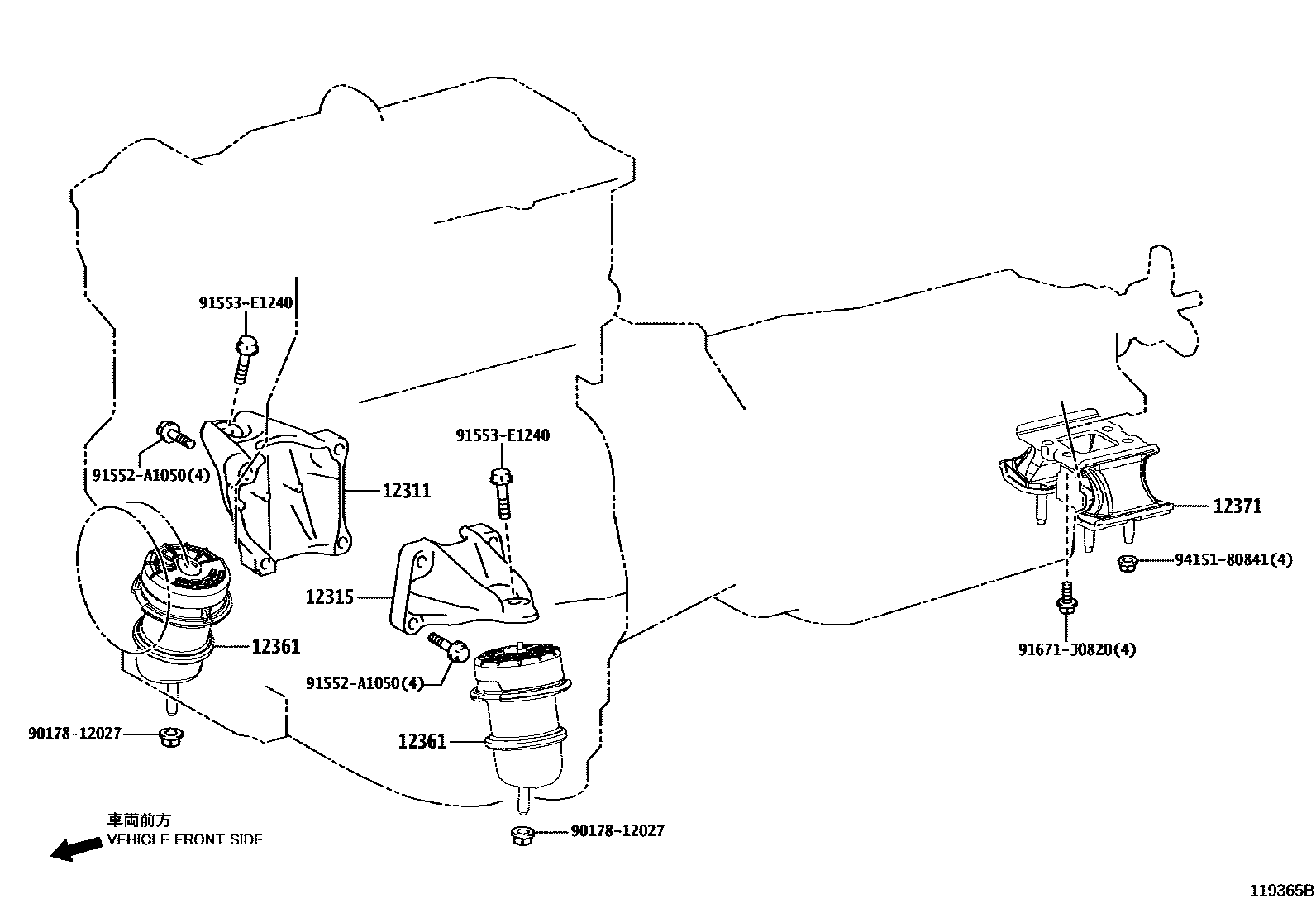

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i2GRF..GSC10201409-201510

main12311-36100i2ARFSE..AVC10..GEN201510-201810

main12311-36130i8ARFTS..ASC10..ARL201810-202209

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i2GRF..GSC10201409-201510

main12315-31170i2GRF..GSC10..ARL201810-202209

main12315-36020i2ARFSE..AVC10..GEN201510-201810

main12315-36040i8ARFTS..ASC10201510-201810

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31360×2i2GRF..GSC10201510-201810

main12361-36140×2i2ARFSE..AVC10..ARL201510-201608

main12361-36141×2i2ARFSE..AVC10201706-201810

main12361-36220×2i8ARFTS..ASC10201510-201810

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31270i2ARFSE..AVC10..ARL201510-201608

main12371-31300i2GRF..GSC10201510-201810

main12371-31390i2GRF..GSC10..LHD202004

main12371-36210i8ARFTS..ASC10201510-201810

main12371-36270i8ARFTS..ASC10..LHD202004

9017812027

main90178-12027

91552A1050

main91552-A1050

91553E1240

main91553-E1240

91671J0820

main91671-J0820

9415180841

main94151-80841

9 parts on this diagram · 4 diagrams in section
