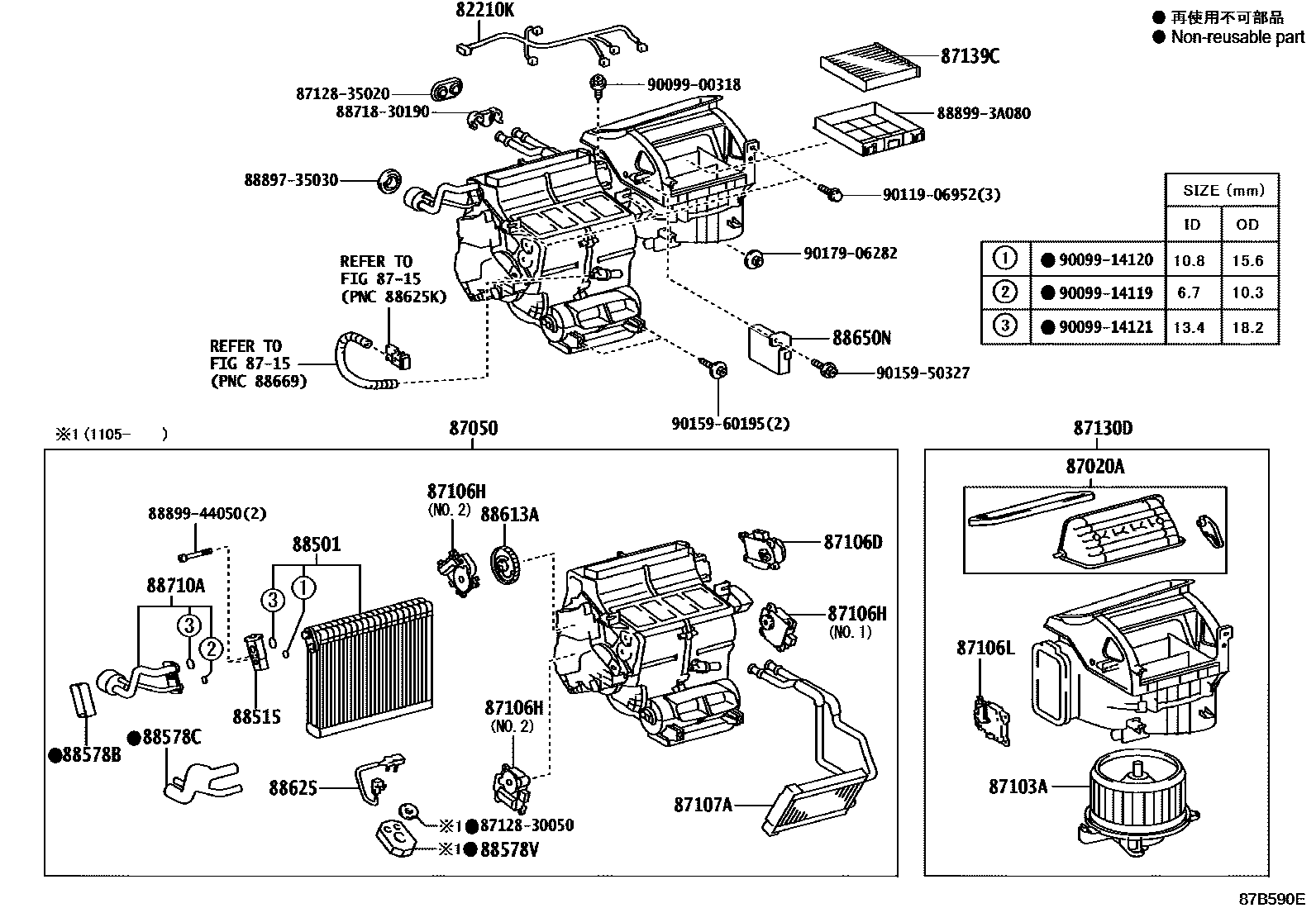

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87020ADAMPER ASSY, HEATER AIR
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106DSERVO SUB-ASSY, DAMPER, NO.1
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
NO.1
NO.2
87106LSERVO SUB-ASSY, DAMPER
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
MICRO DUST FILTER,OE PART
POLLEN FILTER,OE PART
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88613ALEVER, COOLER CONTROL, NO.1
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
88710ATUBE ASSY, AIR CONDITIONER
8712830050GROMMET, HEATER
main87128-30050
8712835020GROMMET, HEATER
main87128-35020
8871830190PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-30190
8889735030VALVE, COOLER MAGNET
main88897-35030
888993A080COVER, EVAPORATOR
main88899-3A080
8889944050COVER, EVAPORATOR
main88899-44050
9009900318
main90099-00318
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906952
main90119-06952
9015950327
main90159-50327
9015960195
main90159-60195
9017906282
main90179-06282
34 parts on this diagram · 1 diagram in section
