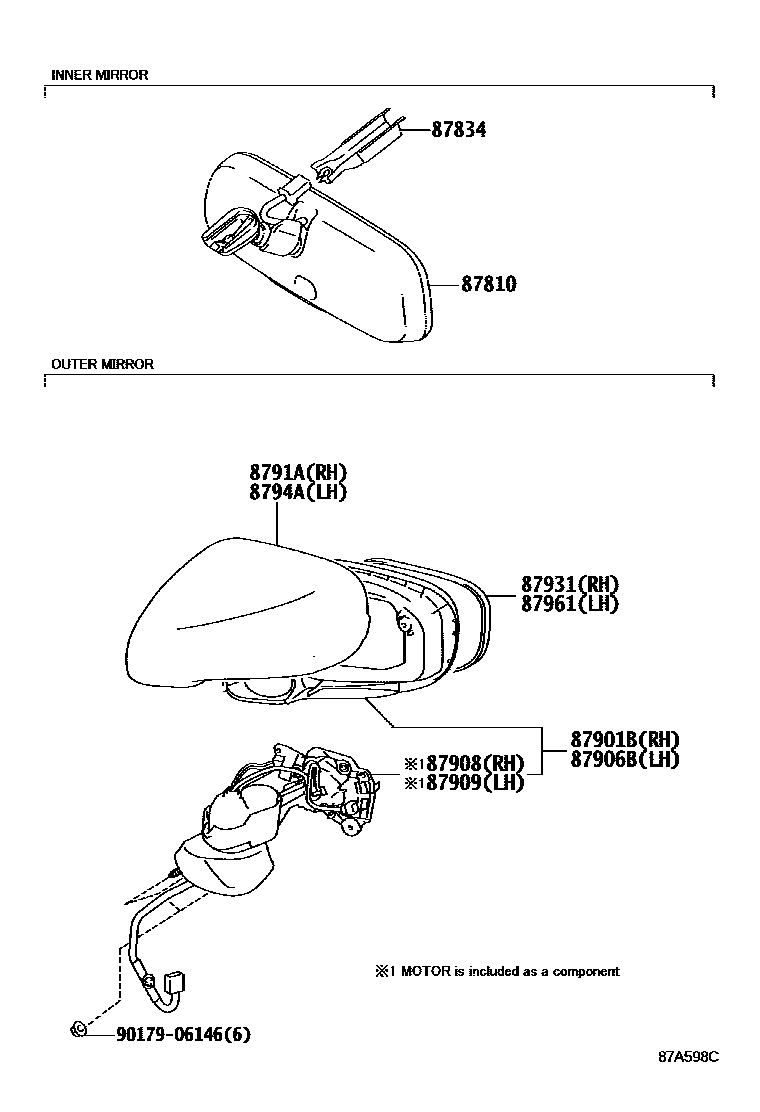

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
PREMIUM SILVER,1F2
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
PREMIUM SILVER,1F2
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
87908ACTUATOR ASSY, OUTER MIRROR, RH
WHITE NOVA GF.,083
SONIC SILVER,1J2
MERCURY GRAY MC.,1H9
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
87909ACTUATOR ASSY, OUTER MIRROR, LH
WHITE NOVA GF.,083
SONIC SILVER,1J2
MERCURY GRAY MC.,1H9
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
8791ACOVER, OUTER MIRROR, RH NO.2
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
87931OUTER MIRROR, RH
8794ACOVER, OUTER MIRROR, LH NO.2
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
87961MIRROR OUTER, LH
9017906146
main90179-06146
11 parts on this diagram · 1 diagram in section
