HORN

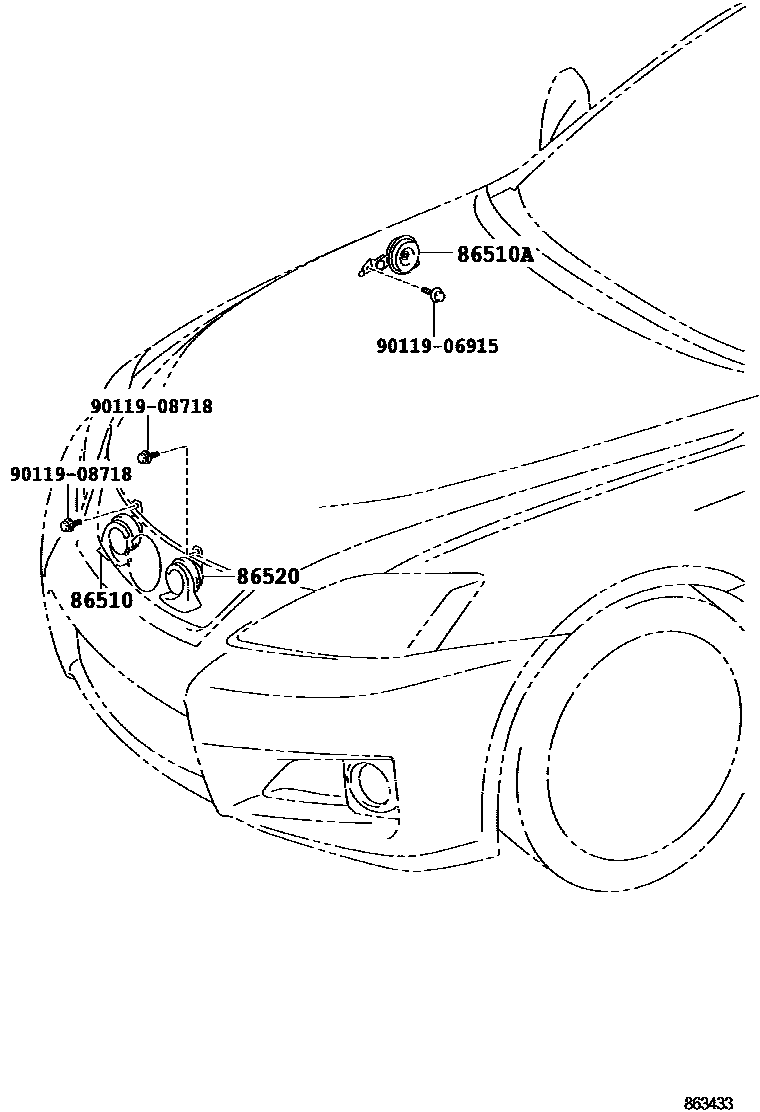

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-30700i201008

86510AHORN ASSY, SECURITY

main86510-30660i201008

86520HORN ASSY, LOW PITCHED

main86520-30610i201008

9011906915

main90119-06915

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
