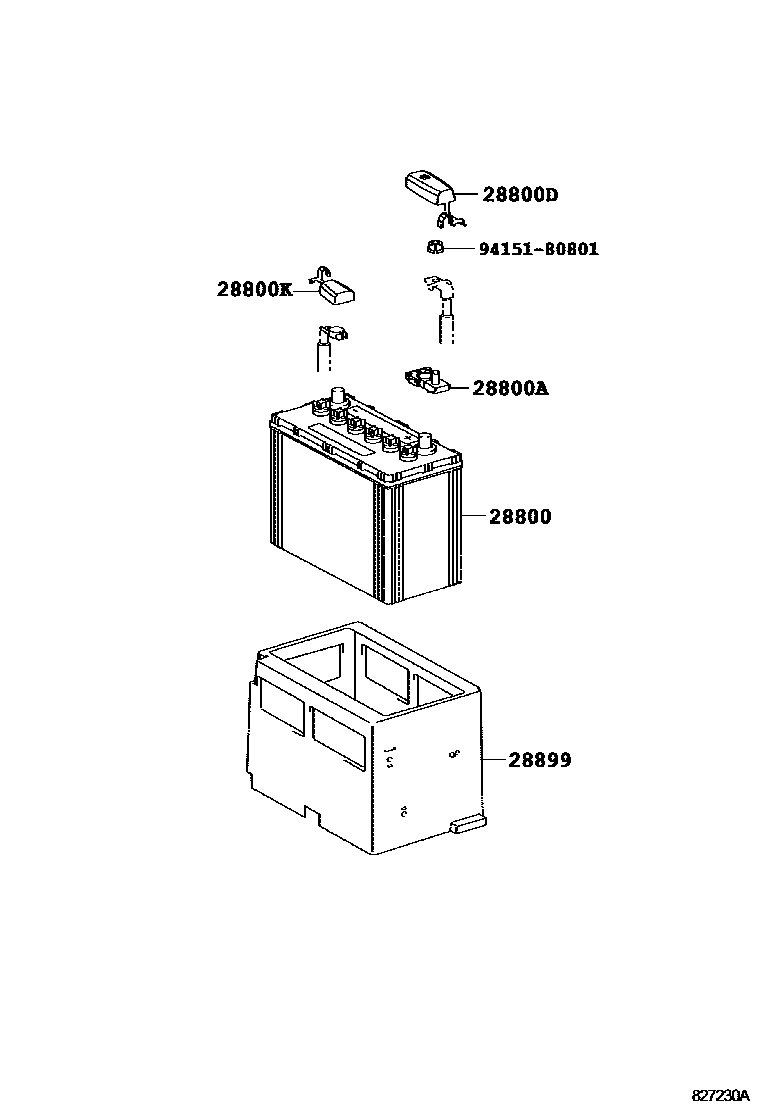

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38100i2URGSE..USE20201008-201408

80D26R

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i2URGSE..USE20201008

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50470i2URGSE..USE20201008

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2URGSE..USE20201008

28899INSULATOR, BATTERY

main28899-38070i2URGSE..USE20201008

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
