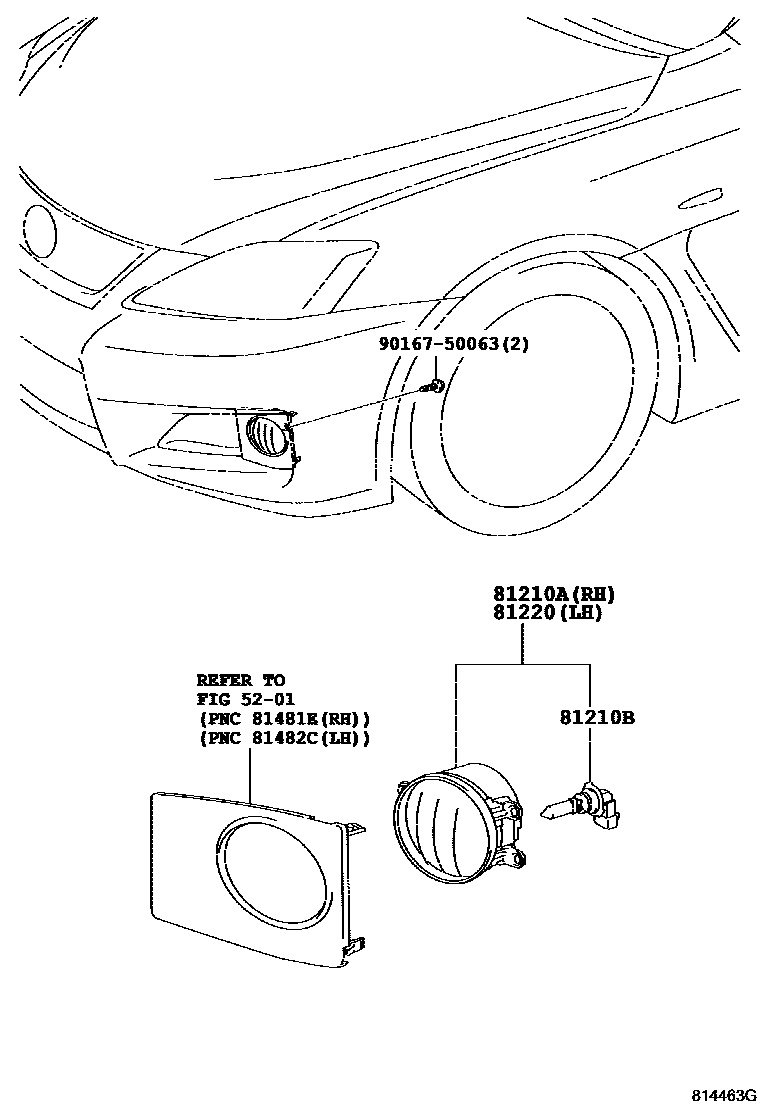

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D042iUSE20201008-201309

main81210-48050iUSE20201309-201408

81210BBULB, FOG LAMP

main90981-13075×2iUSE20201008-201309

12V 55W,HALOGEN,PHILIPS

main90981-13081×2iUSE20201008-201309

12V 55W,HALOGEN,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0D042iUSE20201008-201309

main81220-48050iUSE20201309-201408

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
