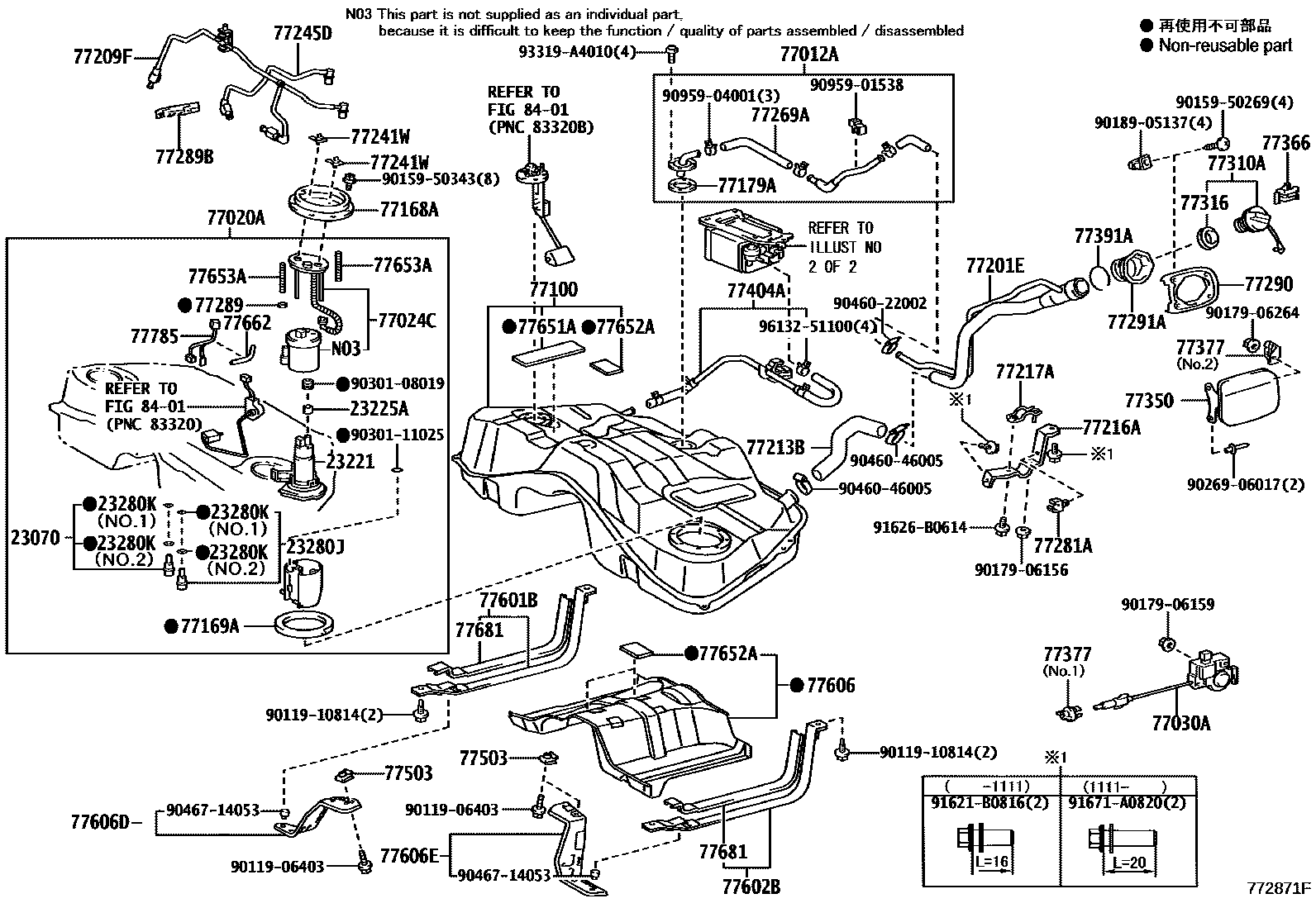

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23070VALVE ASSY, FUEL MAIN

main23070-38020i2URGSE..USE20201008-201408

23221PUMP, FUEL

main23220-38041i2URGSE..USE20201008

23225ASPACER, FUEL PUMP

main23225-23010i2URGSE..USE20201008-201408

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-38020i2URGSE..USE20201008-201408

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013×2i2URGSE..USE20201008

NO.1

main90301-15024×2i2URGSE..USE20201008

NO.2

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-53040iUSE20201008

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-53131iUSE20201008

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-53040iUSE20201008-201408

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-51030iUSE20201008

77100TANK ASSY, FUEL

main77001-53121iUSE20201008

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iUSE20201008

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iUSE20201008

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iUSE20201008

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-53060iUSE20201008

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-53060iUSE20201008

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22100iUSE20201008

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30050iUSE20201008-201202

main77216-30051iUSE20201203

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30130iUSE20201008-201202

main77217-30131iUSE20201203

77241WCLIP, TUBE JOINT

main77241-33011×2iUSE20201008

77245DTUBE, FUEL TANK RETURN VENT

main77245-53040iUSE20201008

77269AHOSE, FUEL TANK BREATHER

main77269-22010iUSE20201008

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iUSE20201008

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iUSE20201008

77289BCLAMP, FUEL TUBE, NO.3

main77289-53020iUSE20201008-201408

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-53010iUSE20201008

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-53030iUSE20201008

77310ACAP ASSY, FUEL TANK

main77300-52030iUSE20201008

77316GASKET, FUEL TANK CAP

main77316-52040iUSE20201008

77350LID ASSY, FUEL FILLER OPENING

main77350-53050iUSE20201008

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iUSE20201008

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iUSE20201008

NO.1

main77377-22060iUSE20201008

NO.2

77391ARING, FUEL INLET BOX

main77391-12020iUSE20201008

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-53040iUSE20201008

77503RETAINER SUB-ASSY, TANK BRACKET

main77513-53020×2iUSE20201008

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-53030iUSE20201008

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-53010iUSE20201008

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-53040iUSE20201008-201206

main77606-53041iUSE20201207-201307

77606DPROTECTOR, FUEL TANK, NO.3

main77607-53010iUSE20201008

77606EPROTECTOR, FUEL TANK, NO.4

main77607-53020iUSE20201008

77651ACUSHION, FUEL TANK, NO.1

main77651-53010iUSE20201008

77652ACUSHION, FUEL TANK, NO.2

main77652-12100×12iUSE20201008-201307

77653ACUSHION, FUEL TANK, NO.3

main77652-53010×2iUSE20201008

77662COVER, FUEL TANK GAGE

main77662-53010iUSE20201008

77681SEAT, FUEL TANK BAND, RH

main77681-22020×2iUSE20201008

77785HARNESS, FUEL PUMP

main77785-53010iUSE20201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906403

main90119-06403

9011910814

main90119-10814

9015950269

main90159-50269

9015950343

main90159-50343

9017906156

main90179-06156

9017906159

main90179-06159

9017906264

main90179-06264

9018905137

main90189-05137

9026906017

main90269-06017

9030108019

main90301-08019

9030111025

main90301-11025

9046022002

main90460-22002

9046046005

main90460-46005

9046714053

main90467-14053

9095901538

main90959-01538

9095904001

main90959-04001

91621B0816

main91621-B0816

91626B0614

main91626-B0614

91671A0820

main91671-A0820

93319A4010

main93319-A4010

9613251100

main96132-51100

67 parts on this diagram · 2 diagrams in section
