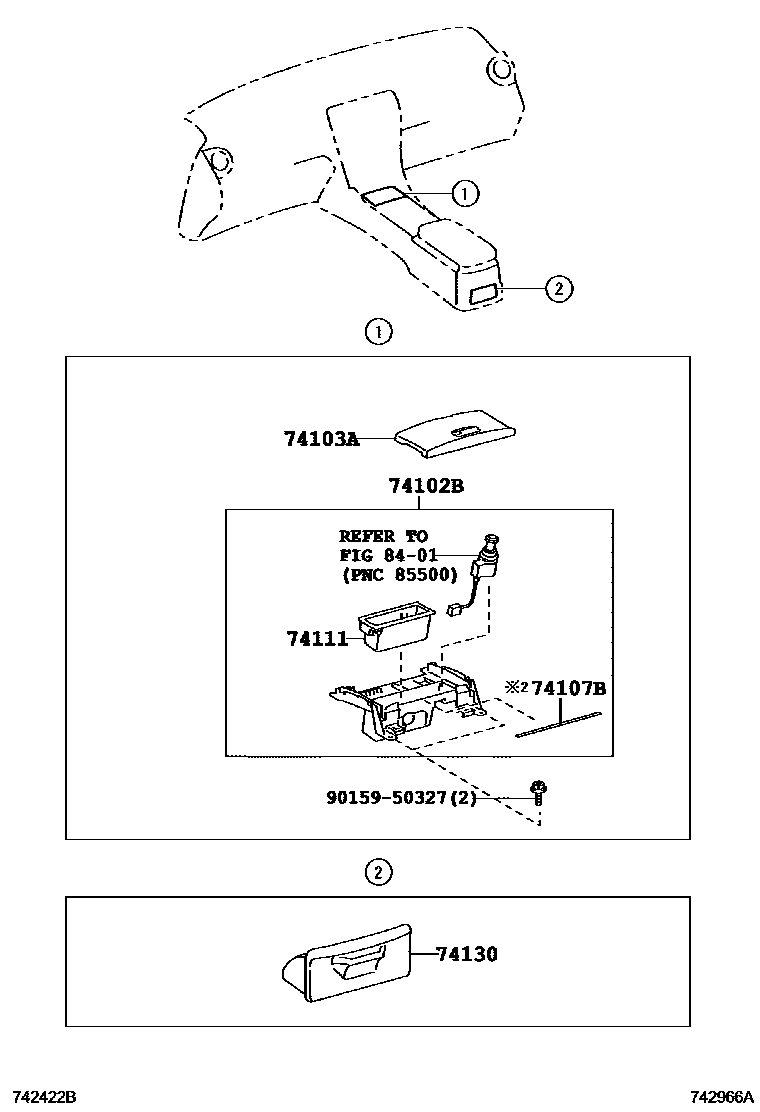

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-53020iUSE20201008-201208

ASH TRAY-WITH(FRONT & REAR)

main74102-53030iUSE20201208-201408

ASH TRAY-WITH(FRONT & REAR)

74103ADOOR SUB-ASSY, FRONT ASH RECEPTACLE

main74103-53060-B0supersedes 74103-53040-A0iUSE20201008-201408

INTERIOR PACKAGE,DARK SILVER,TRIM2#

74107BSEAL, ASH RECEPTACLE DOOR

main74133-30140iUSE20201008

ASH TRAY-WITH(FRONT & REAR)

74111BOX, FRONT ASH RECEPTACLE

main74111-30190iUSE20201008

ASH TRAY-WITH(FRONT & REAR)

74130RECEPTACLE ASSY, REAR ASH

main74130-53010-C0iUSE20201008-201408

ASH TRAY-WITH(FRONT & REAR),BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950327

main90159-50327

7 parts on this diagram · 1 diagram in section
