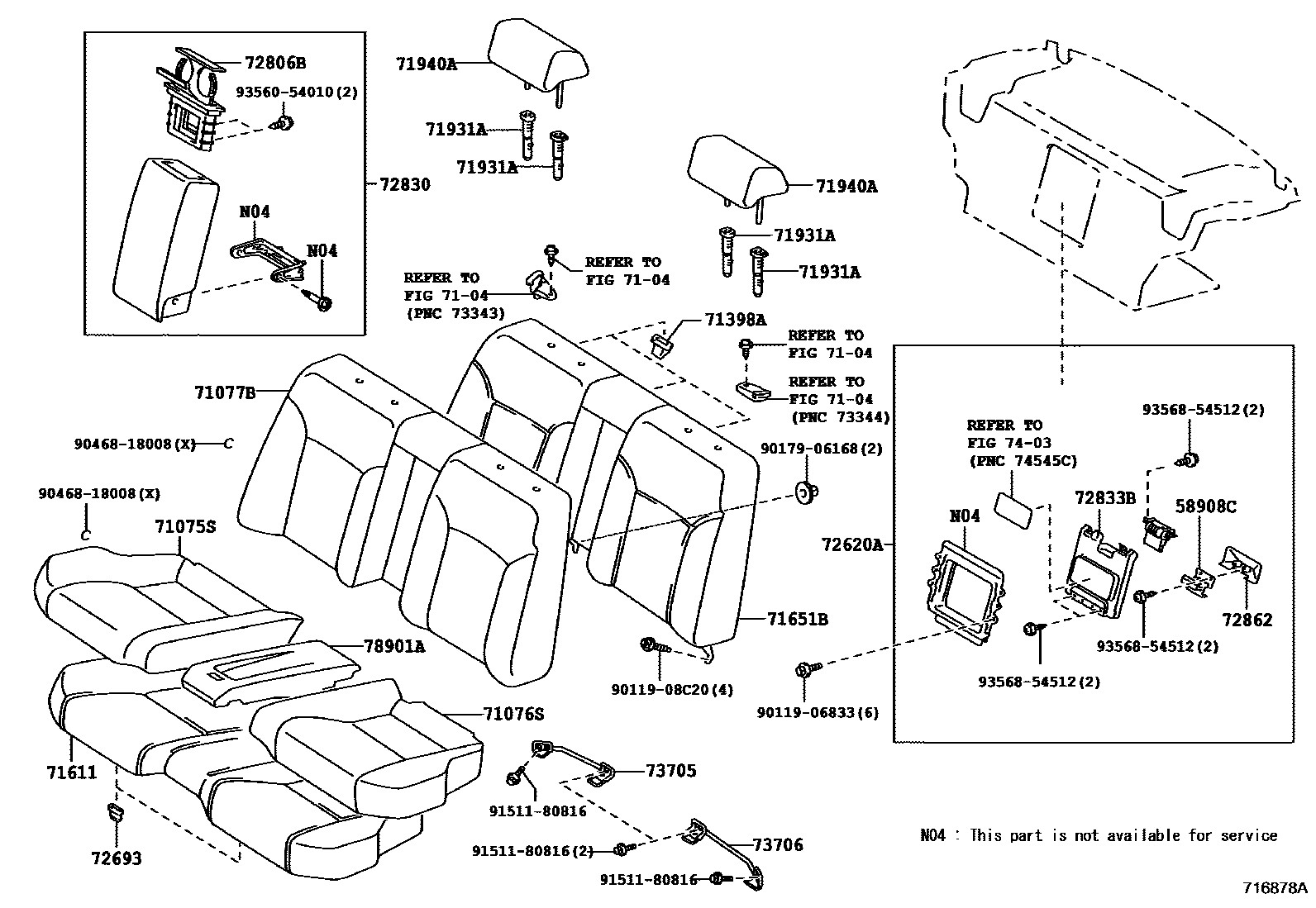

REAR SEAT & SEAT TRACK

58908CLOCK SUB-ASSY, REAR SEAT ARMREST

main58908-53050-C0iUSE20201008-201408

BLACK,TRIM2#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-53500-C1iUSE20201008-201108

BLACK,TRIM2#

main71075-53500-C2iUSE20201108-201408

BLACK,TRIM2#

main71075-53440-C1iUSE20201309-201408

FRONT SEAT-SPORTS SEAT(SMOOTH LEATHER & ALCANTARA),BLACK/RED,TRIM2#

main71075-53510-A1iUSE20201309-201408

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/BLACK/BLUE,TRIM2#

main71075-53510-C1iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/WHITE/BLACK,TRIM20

main71075-53510-C2iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),BLACK/ORANGE/BLUE,TRIM23

main71075-53510-D1iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),RED/BLACK/BLUE,TRIM24

71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71076-53110-C1iUSE20201008-201108

BLACK,TRIM2#

main71076-53110-C2iUSE20201108-201408

BLACK,TRIM2#

main71076-53090-C1iUSE20201309-201408

FRONT SEAT-SPORTS SEAT(SMOOTH LEATHER & ALCANTARA),BLACK/RED,TRIM2#

main71076-53120-A1iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/BLACK/BLUE,TRIM20

main71076-53120-C1iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/WHITE/BLACK,TRIM20

main71076-53120-C2iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),BLACK/ORANGE/BLUE,TRIM23

main71076-53120-D1iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),RED/BLACK/BLUE,TRIM24

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-53630-C2iUSE20201008-201408

BLACK,TRIM2#

main71077-53640-A2iUSE20201008-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/WHITE/ECRU,TRIM20

main71077-53640-C1iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),BLACK/ORANGE/MD.GRAY,TRIM23

main71077-53640-D1iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),RED/BLACK/MD.GRAY,TRIM24

main71077-53B60-C1iUSE20201309-201408

FRONT SEAT-SPORTS SEAT(SMOOTH LEATHER & ALCANTARA),BLACK/RED,TRIM2#

71398AHOLDER, REAR SEATBACK

main71398-30010×3iUSE20201008

71611PAD, REAR SEAT CUSHION

main71503-53040iUSE20201008

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-53120iUSE20201008

71931ASUPPORT, REAR SEAT HEADREST

main71955-53010-C0×4iUSE20201008-201408

W(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-53180-A5×2iUSE20201008-201108

WHITE/BLACK,TRIM20

main71940-53180-C7×2iUSE20201008-201108

BLACK/BLUE,TRIM21,23

main71940-53370-C2×2iUSE20201108-201309

BLACK,TRIM2#

main71940-53510-C0×2iUSE20201309-201408

BLACK,TRIM2#

main71940-53370-A1×2iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE,TRIM20

main71940-53370-D1×2iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),RED,TRIM24

main71940-53510-A0×2iUSE20201309-201408

FRONT SEAT-SPORTS SEAT(SMOOTH LEATHER & ALCANTARA),WHITE,TRIM20

72620APROTECTOR ASSY, REAR SEATBACK

main72620-53060-C0iUSE20201008-201207

BLACK,TRIM2#

main72620-53070-C0iUSE20201208-201408

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iUSE20201008

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-30110-C0iUSE20201008-201408

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-53280-C2iUSE20201008-201408

BLACK,TRIM2#

72833BDOOR, REAR SEAT CENTER ARMREST

main72833-53060-C0iUSE20201008-201408

BLACK,TRIM2#

72862PATCH, CENTER ARMREST

main72862-53030-C0iUSE20201008-201408

BLACK,TRIM2#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-53030iUSE20201008

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-53030iUSE20201008

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

78901ATRAY,SUB-ASSY, REAR SEAT UNDER

main78950-53010-C0iUSE20201008-201408

BLACK,TRIM2#

9011906833

main90119-06833

9011908C20

main90119-08C20

9017906168

main90179-06168

9046818008

main90468-18008

9151180816

main91511-80816

9356054010

main93560-54010

9356854512

main93568-54512

27 parts on this diagram · 1 diagram in section
