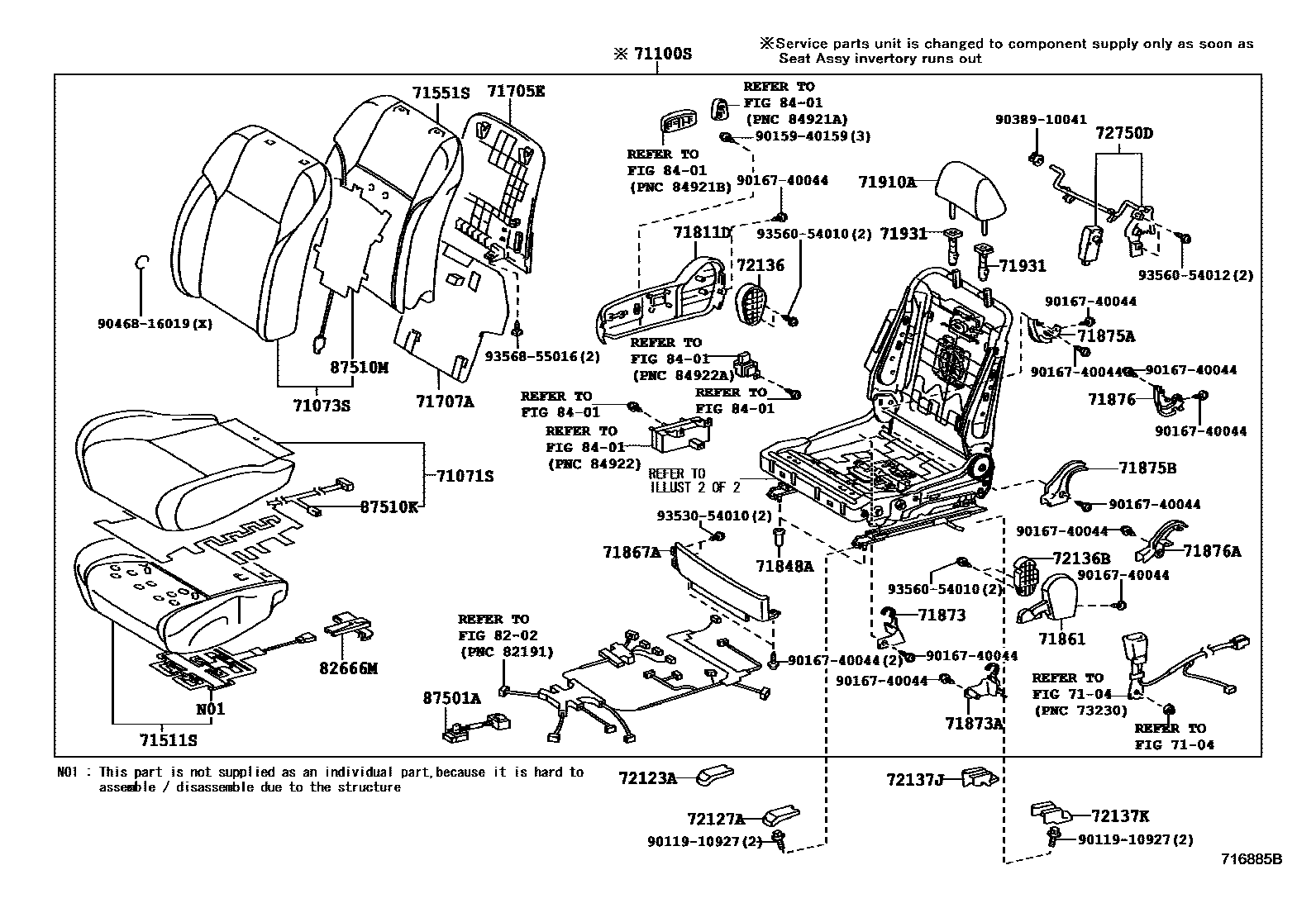

FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH SEAT 0003 1SEAT FRAME

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-53A10-C1iUSE20201008-201107

BLACK,TRIM2#

main71071-53A11-C2iUSE20201108-201408

BLACK,TRIM2#

main71071-53790-C1iUSE20201309-201408

FRONT SEAT-SPORTS SEAT(SMOOTH LEATHER & ALCANTARA),BLACK/RED,TRIM2#

main71071-53A20-A1iUSE20201008-201107

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/WHITE/BLUE,TRIM20

main71071-53A20-C1iUSE20201008-201107

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),BLACK/ORANGE/BLUE,TRIM23

main71071-53A21-A2iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/BLACK/BLUE,TRIM20

main71071-53A21-D3iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),RED/BLACK/BLUE,TRIM24

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-53870-C2iUSE20201008-201408

BLACK,TRIM2#

main71073-53880-A2iUSE20201008-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/WHITE/MEDIUM GRAY,TRIM20

main71073-53880-C1iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),BLACK/ORANGE/MEDIUM GRAY,TRIM23

main71073-53880-D1iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),RED/BLACK/MEDIUM GRAY,TRIM24

main71073-53F10-C1iUSE20201309-201408

FRONT SEAT-SPORTS SEAT(SMOOTH LEATHER & ALCANTARA),BLACK/RED,TRIM2#

71100SSEAT ASSY, FRONT RH

main71100-53U30-C2iUSE20201008-201108

BLACK,TRIM2#

main71100-53U31-C1iUSE20201108-201309

BLACK,TRIM2#

main71010-53G20-C1supersedes 71100-53U32-C0iUSE20201309-201408

FRONT SEAT-SPORTS SEAT(SMOOTH LEATHER & ALCANTARA),BLACK/RED,TRIM2#

main71100-53U60-C4iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE,TRIM20

sub71100-53U63

main71100-53U60-C5iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),ORANGE,TRIM23

sub71100-53U63

main71100-53U61-C2iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE,TRIM20

sub71100-53U64

main71100-53U61-C3iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),RED,TRIM24

sub71100-53U64

main71100-53U62-C0supersedes 71100-53U32-C0iUSE20201309-201408

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-53350iUSE20201008

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-53180iUSE20201008

71705EBOARD SUB-ASSY, FRONT SEATBACK

main71705-53031-C0×2iUSE20201008-201408

BLACK,TRIM2#

71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD

main71707-53030-C0×2iUSE20201008-201303

BLACK,TRIM2#

sub71707-53031

main71707-53040-C0×2iUSE20201304-201408

BLACK,TRIM2#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-53080-C0iUSE20201008-201408

BLACK,TRIM2#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2iUSE20201008-201312

main71848-76010×2iUSE20201401

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-53060-C0iUSE20201008-201408

BLACK,TRIM2#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-53010-C0iUSE20201008-201408

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-30060iUSE20201008

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-30070iUSE20201008

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-58050iUSE20201008

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-30170-C0iUSE20201008-201408

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-58050iUSE20201008

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71875-60150-C0iUSE20201008-201408

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-53330-C6×2iUSE20201008-201309

BLACK/BLUE,TRIM2#

sub71910-53332

main71910-53330-A4×2iUSE20201008-201108

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/BLACK,TRIM2#

sub71910-53332

main71910-53330-D1×2iUSE20201108-201309

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),RED,TRIM24

sub71910-53332

main71910-53600-A0×2supersedes 71910-53600-C0iUSE20201309-201408

FRONT SEAT-SPORT SEAT(SMOOTH LEATHER),WHITE/BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-52030-C0×2iUSE20201008-201408

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71931-42020-C0×2iUSE20201008-201408

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-53040-C0iUSE20201008-201408

BLACK,TRIM2#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-53040-C0iUSE20201008-201408

BLACK,TRIM2#

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-30050iUSE20201008-201104

main72136-53060iUSE20201105

72136BSPACER, SEAT TRACK, LOWER NO.3

main72136-53020×2iUSE20201008

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-53040-C0iUSE20201008-201408

BLACK,TRIM2#

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72157-53060-C0iUSE20201008-201408

BLACK,TRIM2#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30260iUSE20201008

8202

82666MHOLDER, CONNECTOR

main82666-21060iUSE20201008

8401

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-60010iUSE20201008-201202

main87501-60060iUSE20201203-201408

sub87501-48020

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-53150iUSE20201008

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-53020iUSE20201008

9011910927

main90119-10927

9015940159

main90159-40159

9016740044

main90167-40044

9038910041

main90389-10041

9046816019

main90468-16019

9353054010

main93530-54010

9356054010

main93560-54010

9356054012

main93560-54012

9356855016

main93568-55016

42 parts on this diagram · 3 diagrams in section
