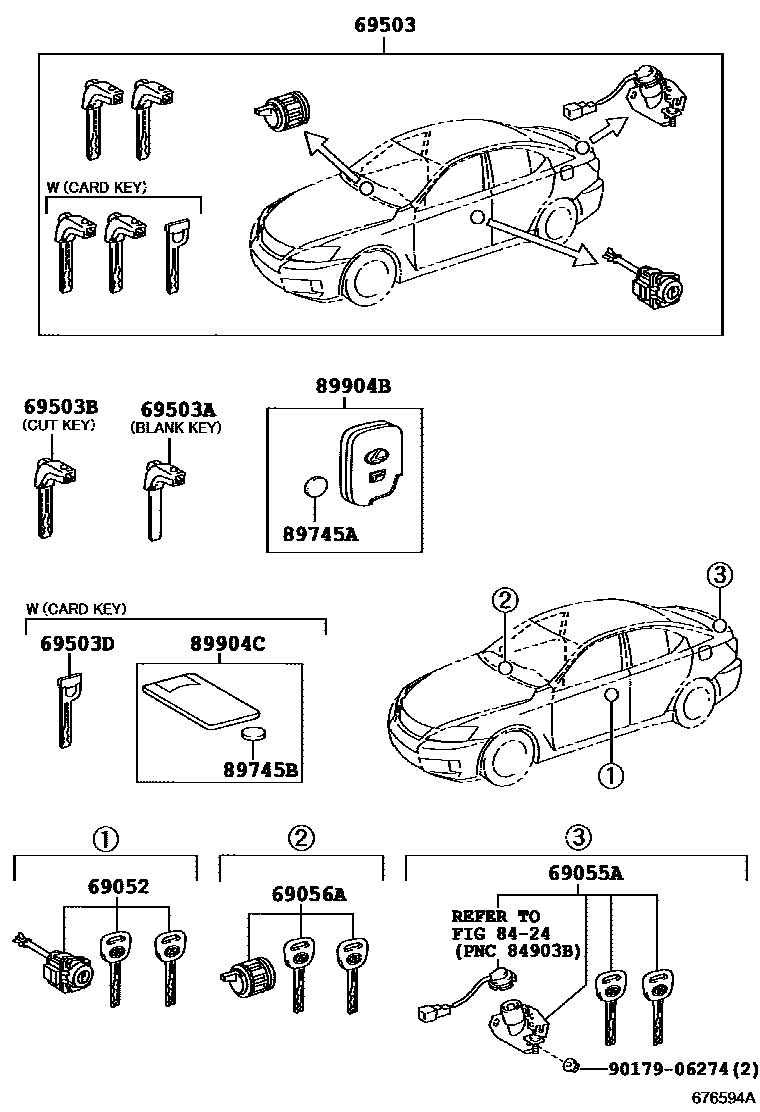

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-50150iUSE20201008

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-53050iUSE20201008

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iUSE20201008

69503CYLINDER SET, LOCK

main69005-53330iUSE20201008

sub69005-53370

69503AKEY, BLANK

main69515-50260iUSE20201008-201408

BLANK KEY

69503BKEY, CUT

main69515-50240iUSE20201008-201408

MASTER KEY

69503DKEY, CUT(CARD KEY)

8424

89745ABATTERY, TRANSMITTER

main89745-52020iUSE20201008

89745BBATTERY, TRANSMITTER(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-53410iUSE20201008

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
