ROOF HEADLINING & SILENCER PAD

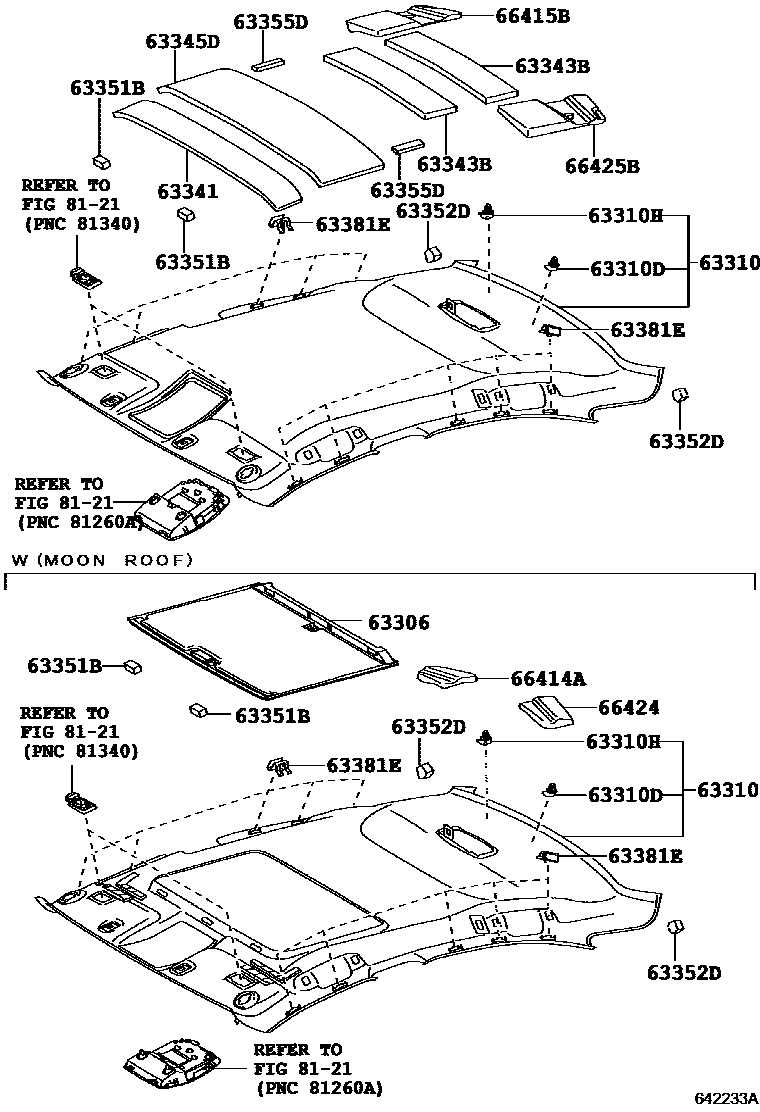

Parts diagram

63306TRIM SUB-ASSY, SUNSHADE

main63306-53030-C0i201008-201408

MOON ROOF-WITH(AUTO SLIDE),BLACK,TRIM2#

63310HEADLINING ASSY, ROOF

main63311-53150-C0supersedes 63311-53130-C0i201008-201408

MOON ROOF-WITH(AUTO SLIDE),BLACK,TRIM2#

63310DCLIP, ROOF HEADLINING

main90467-10181i201008

63310HCLIP(FOR ROOF HEADLINING)

main90467-09126i201008

63341PAD, ROOF SILENCER, NO.1

main63341-53030i201008

63343BPAD, ROOF SILENCER, REAR

main63343-53020×2i201008

63345DPAD, ROOF SILENCER, CENTER

main63345-53010i201008

63351BPAD, ROOF HEADLINING

main63351-53050×2supersedes 63351-53020i201008

MOON ROOF-WITH(AUTO SLIDE)

63352DPAD, ROOF HEADLINING, NO.2

main63352-53020×2i201008

63355DPAD, ROOF HEADLINING, LH

main63355-53040×2i201008

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30091×10i201008

66414ASPACER, SIDE RAIL, REAR RH

main66414-53040i201008

MOON ROOF-WITH(AUTO SLIDE)

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-53020i201008

66424SPACER, SIDE RAIL, REAR LH

main66424-53040i201008

MOON ROOF-WITH(AUTO SLIDE)

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-53020i201008

8121INTERIOR LAMP

→ Go to FIG 81-21

16 parts on this diagram · 1 diagram in section
