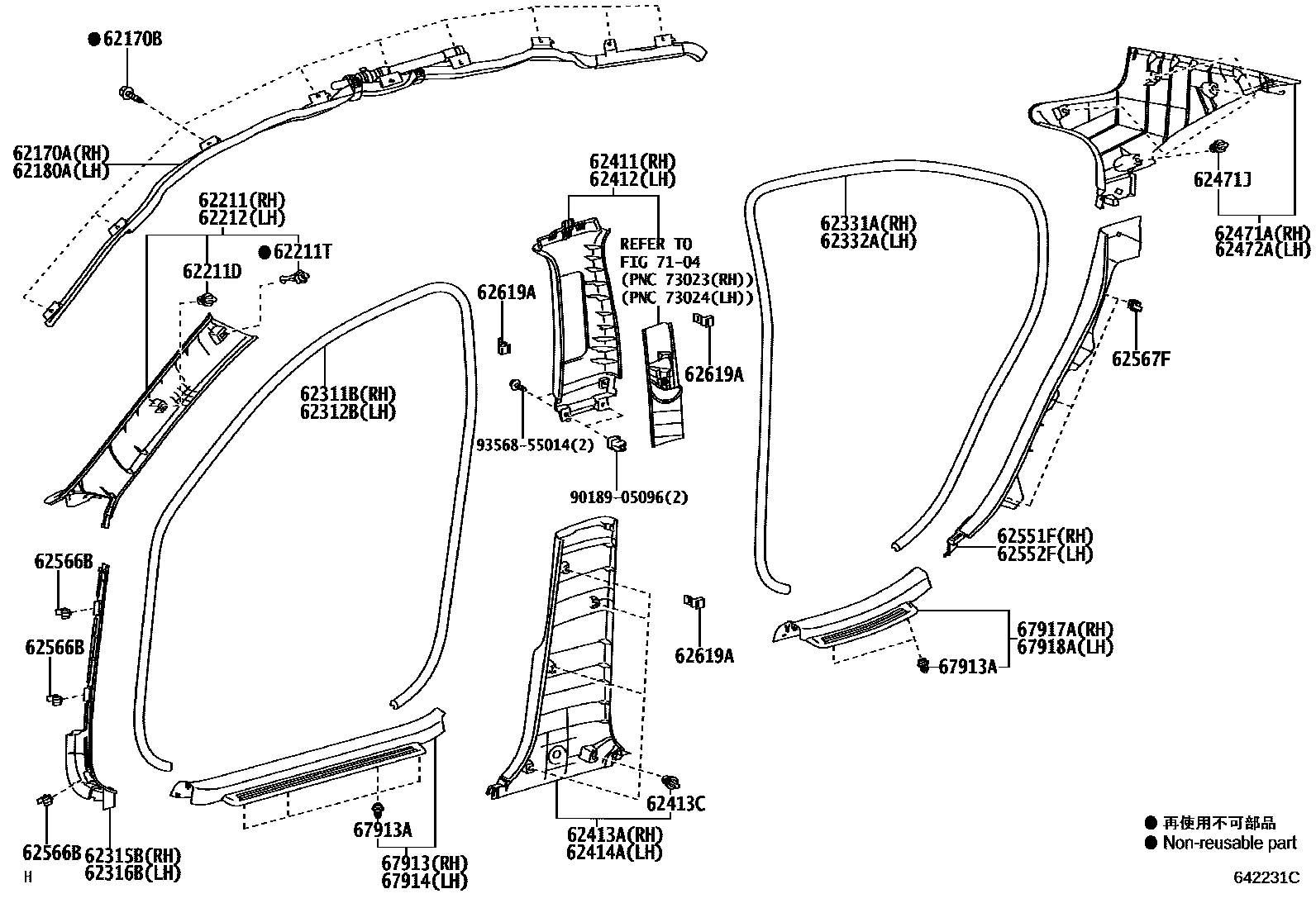

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
sub62311-53900
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
sub62312-53900
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM2#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM2#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
sub62331-53900
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
sub62332-53900
62411GARNISH, CENTER PILLAR, RH
62412GARNISH, CENTER PILLAR, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM2#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM2#
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM2#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM2#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62619APLATE, SIDE TRIM SET
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
7104
9018905096
main90189-05096
9356855014
main93568-55014
34 parts on this diagram · 1 diagram in section
