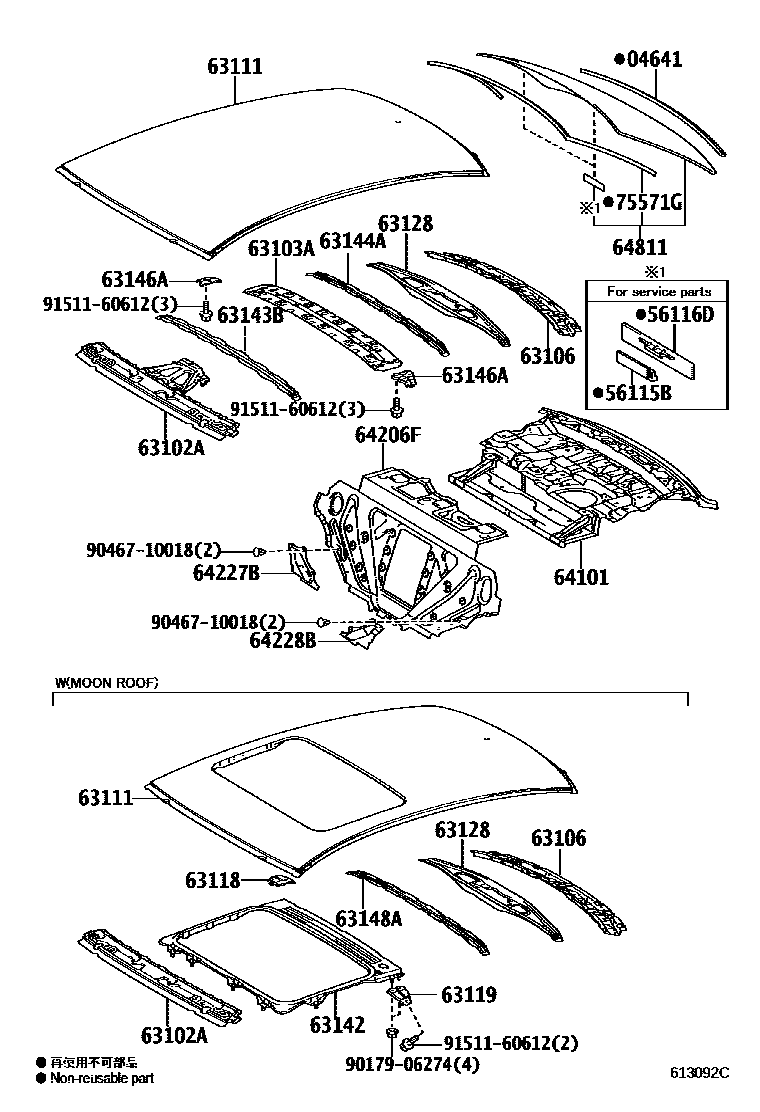

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

04641DAM KIT, BACK WINDOW GLASS

main56117-53030iUSE20201008

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30110×2iUSE20201008

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iUSE20201008

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-53903supersedes 63102-53902iUSE20201008-201408

MOON ROOF-WITH(AUTO SLIDE)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-53010iUSE20201008

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-53010iUSE20201008

63111PANEL, ROOF

main63111-53060supersedes 63111-53050iUSE20201008

MOON ROOF-WITH(AUTO SLIDE)

63118SUPPORT, ROOF PANEL, RH

main63118-53020iUSE20201008

MOON ROOF-WITH(AUTO SLIDE)

63119SUPPORT, ROOF PANEL, LH

main63118-53020iUSE20201008

MOON ROOF-WITH(AUTO SLIDE)

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-53010iUSE20201008

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-53901iUSE20201008

MOON ROOF-WITH(AUTO SLIDE)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-53010iUSE20201008

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-53020iUSE20201008

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-53020×2iUSE20201008

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-53020iUSE20201008

MOON ROOF-WITH(AUTO SLIDE)

64101PANEL SUB-ASSY, UPPER BACK

main64101-53040iUSE20201008

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-53021iUSE20201008

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-30120iUSE20201008

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30100iUSE20201008

64811GLASS, BACK WINDOW

main64801-53072iUSE20201008

*UVCT,T=3.1,GREEN

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-53020iUSE20201008

9017906274

main90179-06274

9046710018

main90467-10018

9151160612

main91511-60612

24 parts on this diagram · 2 diagrams in section
