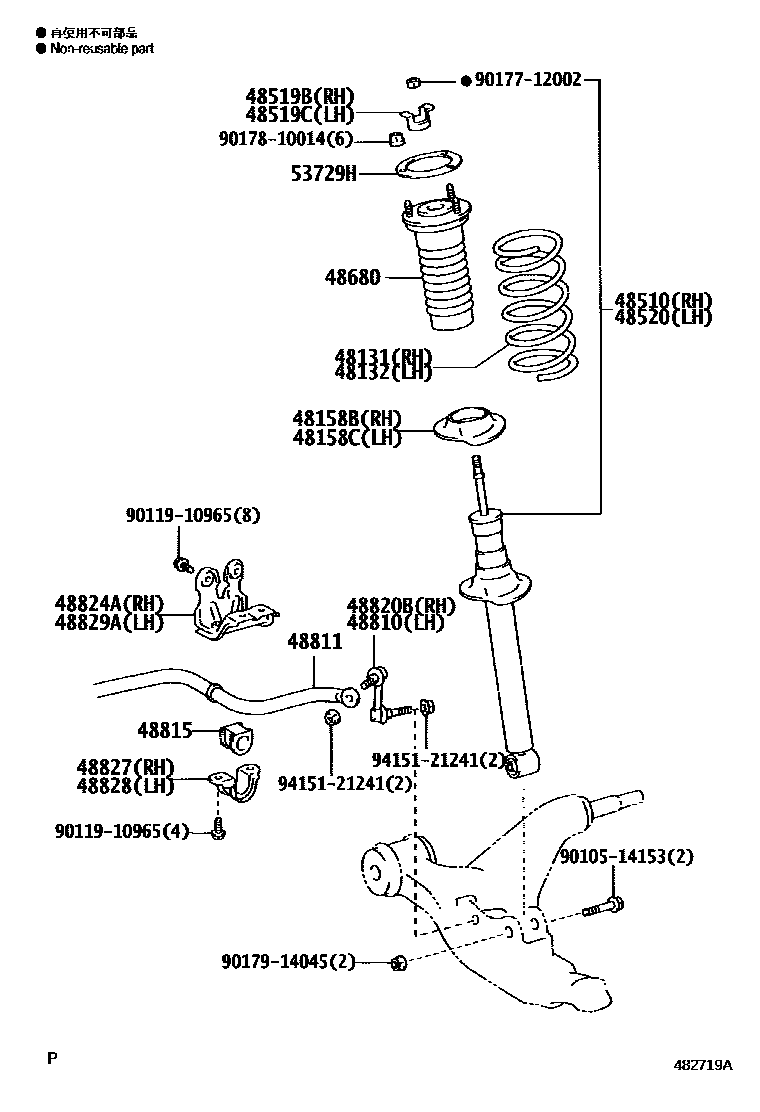

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
PNC 48510=MARK 53180
PNC 48510=MARK 53270
48132SPRING, FRONT COIL, LH
PNC 48520=MARK 53100
PNC 48520=MARK 53180
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-53180
MARK 48510-53270
MARK 48510-0W080
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-0W060
MARK 48520-53100
MARK 48520-53180
48680SUPPORT ASSY, FRONT SUSPENSION
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
9010514153
main90105-14153
9011910965
main90119-10965
9017712002
main90177-12002
9017810014
main90178-10014
9017914045
main90179-14045
9415121241
main94151-21241
24 parts on this diagram · 1 diagram in section
