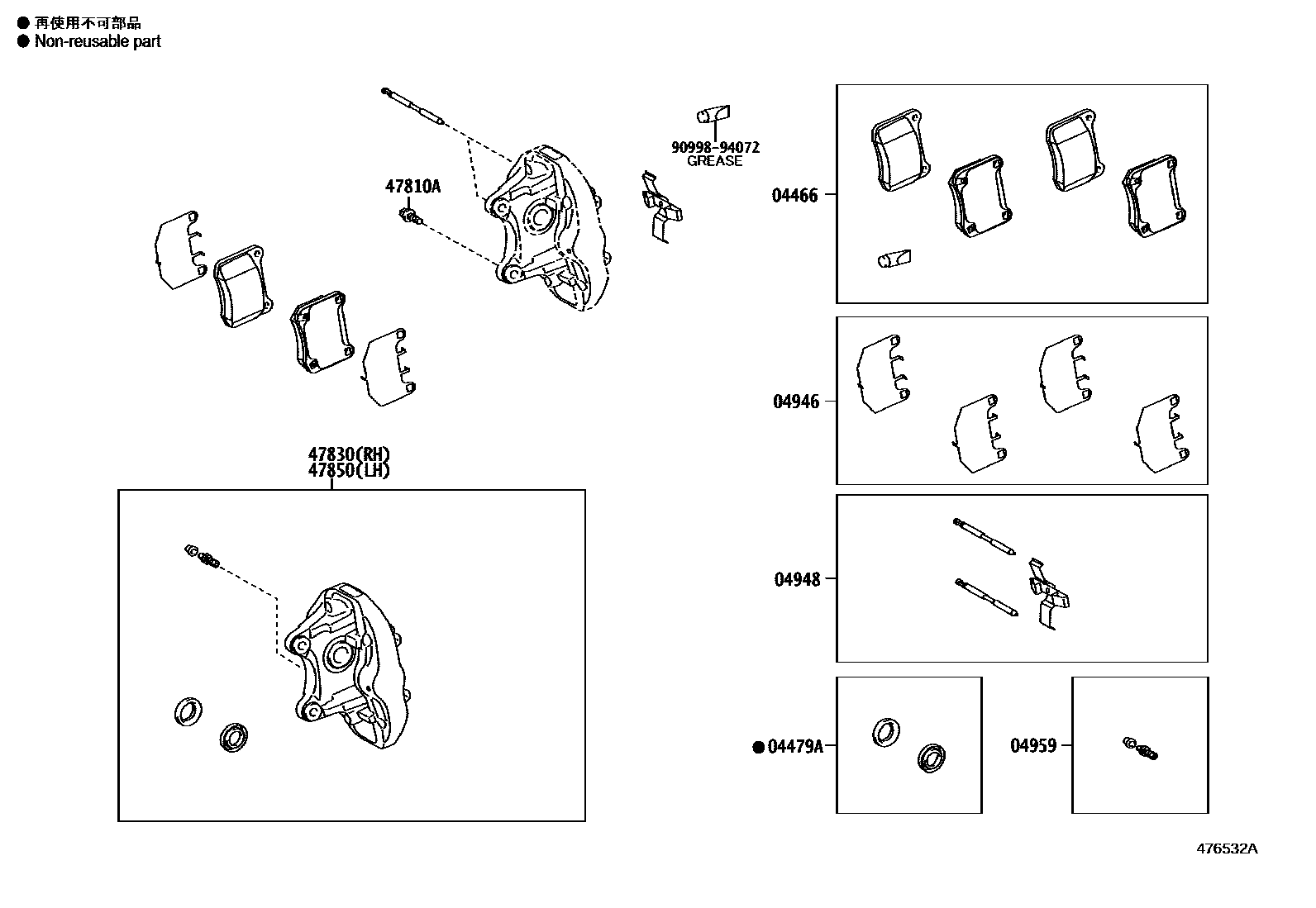

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0W031iUSE20201008-201408

MARK JURID 655

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0W010×2iUSE20201008

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0W010iUSE20201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-0W010×2iUSE20201008

04959BLEEDER KIT, DISC BRAKE, REAR

main04958-0W010×2iUSE20201008

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iUSE20201008-201408

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0W010iUSE20201008

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0W010iUSE20201008

9099894072

main90998-94072

9 parts on this diagram · 1 diagram in section
