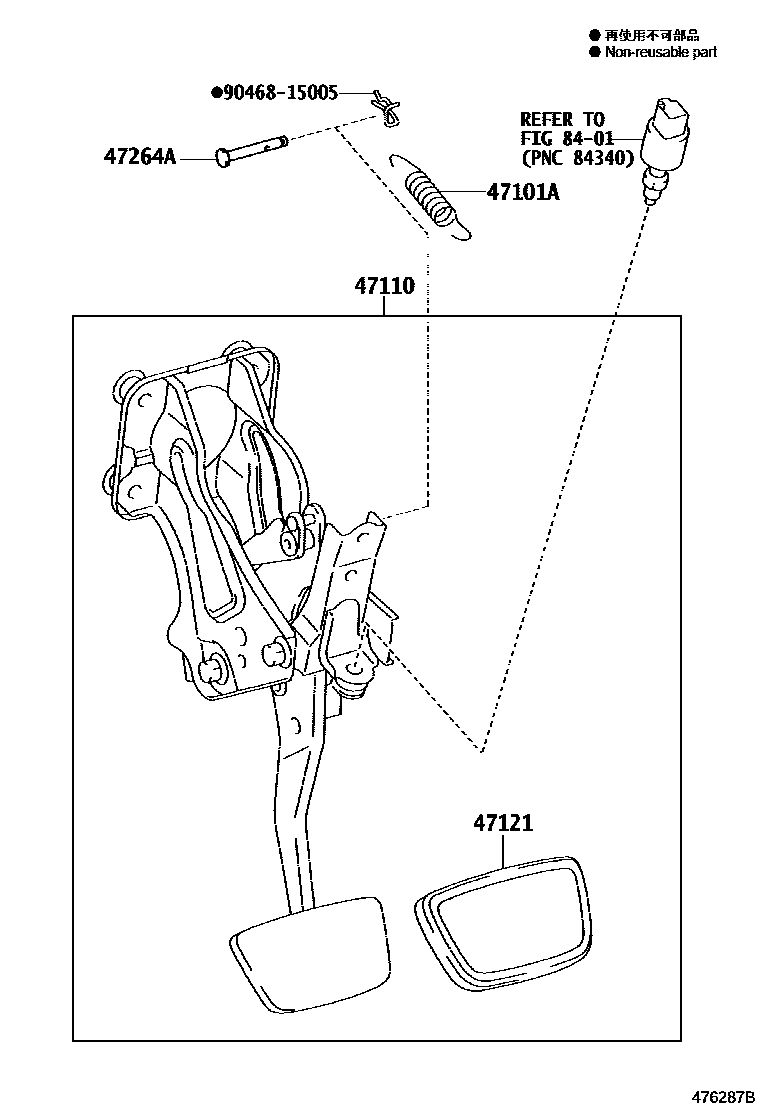

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iUSE20201008

47110SUPPORT ASSY, BRAKE PEDAL

main47110-53311iUSE20201008-201408

47121PAD, BRAKE PEDAL

main47121-53010iUSE20201008

47264APIN(FOR PUSH ROD)

main90249-06180iUSE20201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046815005

main90468-15005

6 parts on this diagram · 1 diagram in section
