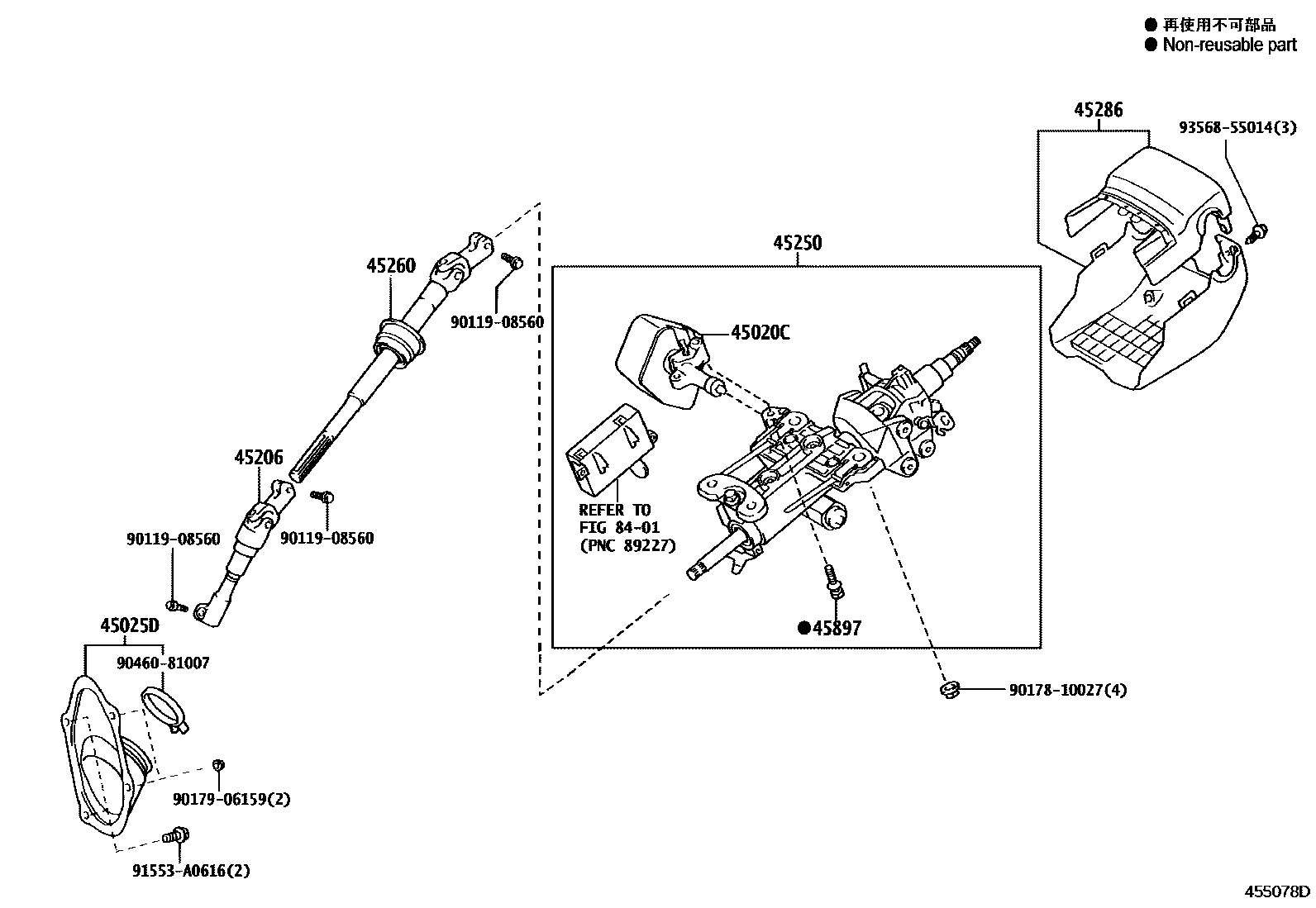

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A60iUSE20201008-201408

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30390iUSE20201008

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30111iUSE20201008-201112

main45206-30112iUSE20201112

45250COLUMN ASSY, STEERING

main45250-53061iUSE20201008-201011

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30200iUSE20201008-201212

main45260-30201iUSE20201301

45286COVER, STEERING COLUMN

main45286-53912-C0iUSE20201008-201408

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iUSE20201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9017810027

main90178-10027

9017906159

main90179-06159

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
