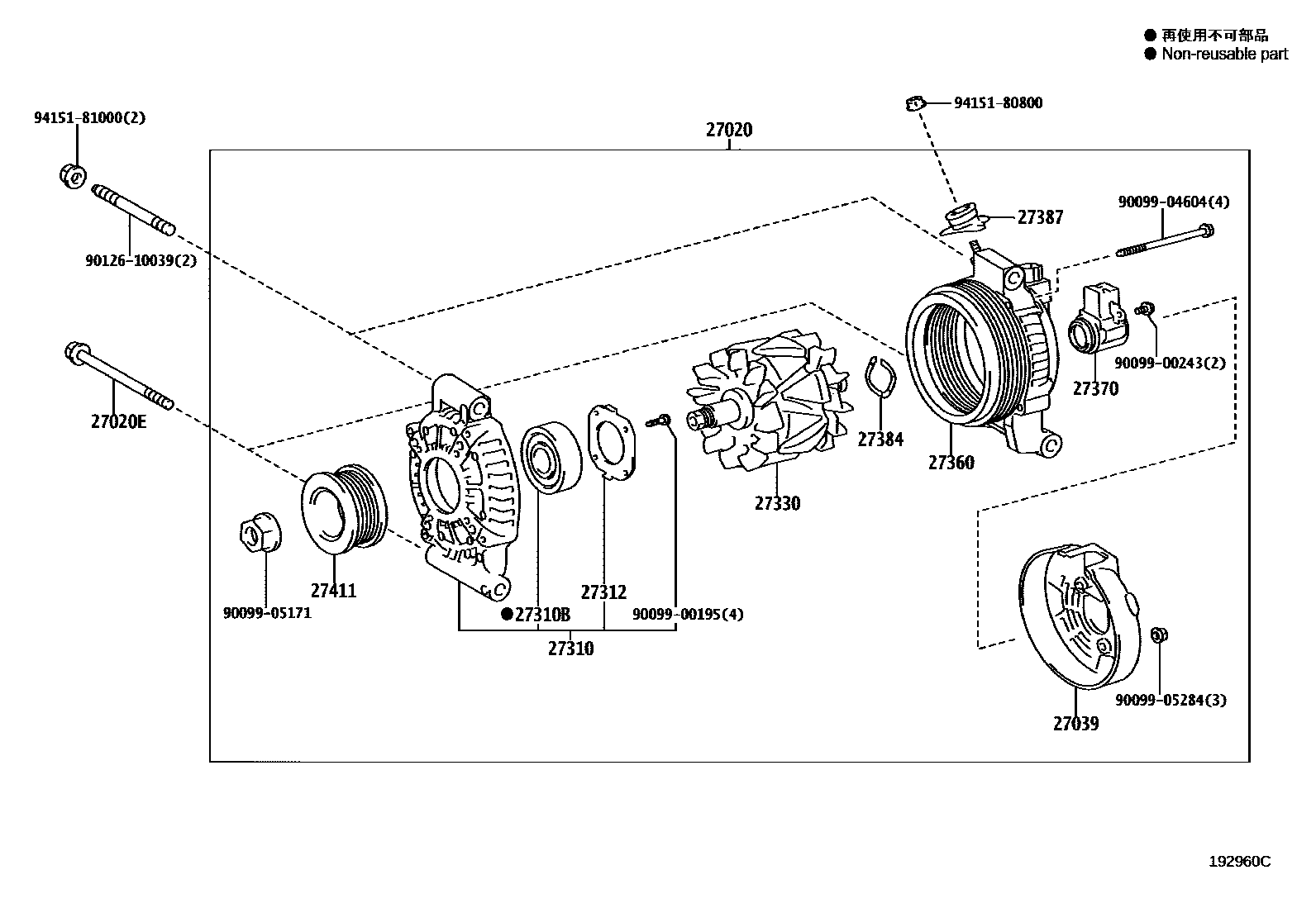

ALTERNATOR

27020ALTERNATOR ASSY

main27060-38060i2URGSE..USE20201008

12V 180A

27020EBOLT(FOR ALTERNATOR)

main90105-10557×2i2URGSE..USE20201008

27039COVER, ALTERNATOR REAR END

main27039-38130i2URGSE..USE20201008-201311

main27039-38150i2URGSE..USE20201311-201408

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-38130i2URGSE..USE20201008

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10226i2URGSE..USE20201008

27312PLATE, RETAINER

main27312-42010i2URGSE..USE20201008

27330ROTOR ASSY, ALTERNATOR

main27330-38140i2URGSE..USE20201008

27360COIL ASSY, ALTERNATOR

main27360-38150i2URGSE..USE20201008

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i2URGSE..USE20201008

27384WASHER

main27384-38130i2URGSE..USE20201008

27387INSULATOR, TERMINAL

main27387-38130i2URGSE..USE20201008

27411PULLEY, ALTERNATOR

main27411-50030i2URGSE..USE20201008

9009900195

main90099-00195

9009900243

main90099-00243

9009904604

main90099-04604

9009905171

main90099-05171

9009905284

main90099-05284

9012610039

main90126-10039

9415180800

main94151-80800

9415181000

main94151-81000

20 parts on this diagram · 1 diagram in section
