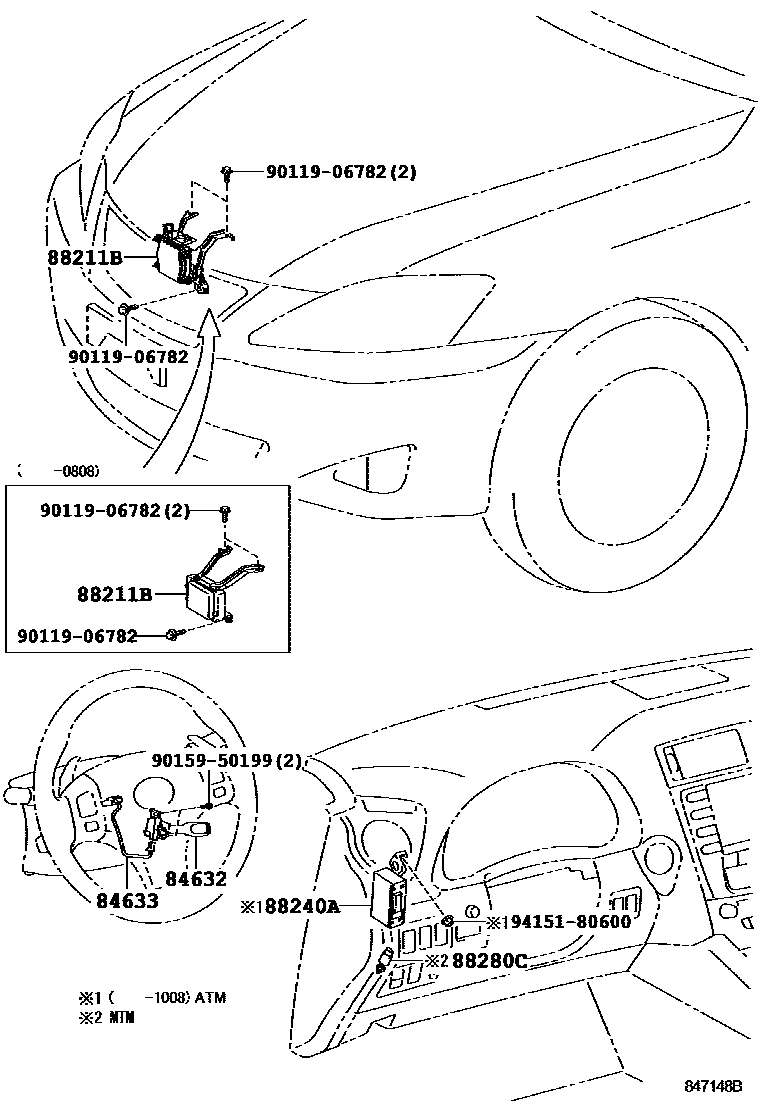

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011iALE20..LHD..SPO;ALE20,GSE20..LUX200808-201008

main84632-58011iGSE20..ATM200808-200908

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

84633WIRE, CRUISE CONTROL SWITCH

main84633-48020iALE20,GSE20200508-200808

main84633-48010iGSE20..ATM200508-200808

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-53010iGSE20..ATM200508-200808

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88210-53060iGSE20..ATM200808-200908

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

sub88210-53061

main88210-53100iGSE2#201008-201207

CRUISE CONTROL-WITH(RADAR)

main88210-53101iGSE2#..RHD201208

CRUISE CONTROL-WITH(RADAR)

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-53010iGSE20..RHD..ATM200508-200808

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88240-53020iGSE20..LHD..ATM200508-200808

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88240-53050iGSE20..RHD..ATM200808-200908

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88240-53060iGSE20..LHD..ATM200808-200908

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88240-53090iGSE2#..RHD201008

CRUISE CONTROL-WITH(RADAR)

main88240-53100iGSE20..LHD201008-201208

CRUISE CONTROL-WITH(RADAR)

88280CSWITCH ASSY, CLUTCH

main88280-42010iALE20,GSE20..MTM200509-200808

9011906782

main90119-06782

9015950199

main90159-50199

9415180600

main94151-80600

8 parts on this diagram · 2 diagrams in section
