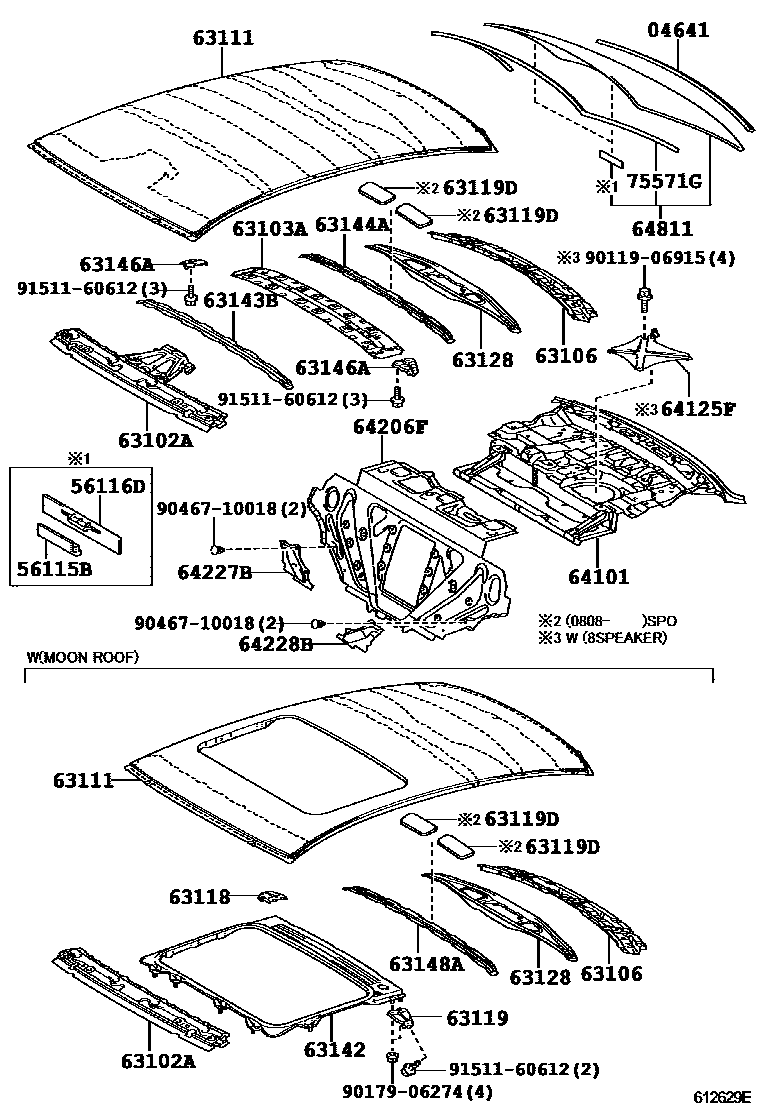

Toyota 631220 — ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63118SUPPORT, ROOF PANEL, RH
63119DPAD, ROOF PANEL, NO.1
63128REINFORCEMENT, ROOF PANEL, NO.6
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1
63148AREINFORCEMENT, ROOF PANEL, NO.7
64101PANEL SUB-ASSY, UPPER BACK
64125FBRACKET, UPPER BACK PANEL
64206FPANEL SUB-ASSY, ROOM PARTITION
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
9011906915
9017906274
9046710018
9151160612
27 parts on this diagram · 2 diagrams in section
ROOF PANEL & BACK WINDOW GLASS for Toyota 631220
This section contains 50 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota 631220. Key components include: DAM KIT, BACK WINDOW GLASS, STOPPER, BACK WINDOW GLASS, NO.1, STOPPER, BACK WINDOW GLASS, NO.2, PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL.
