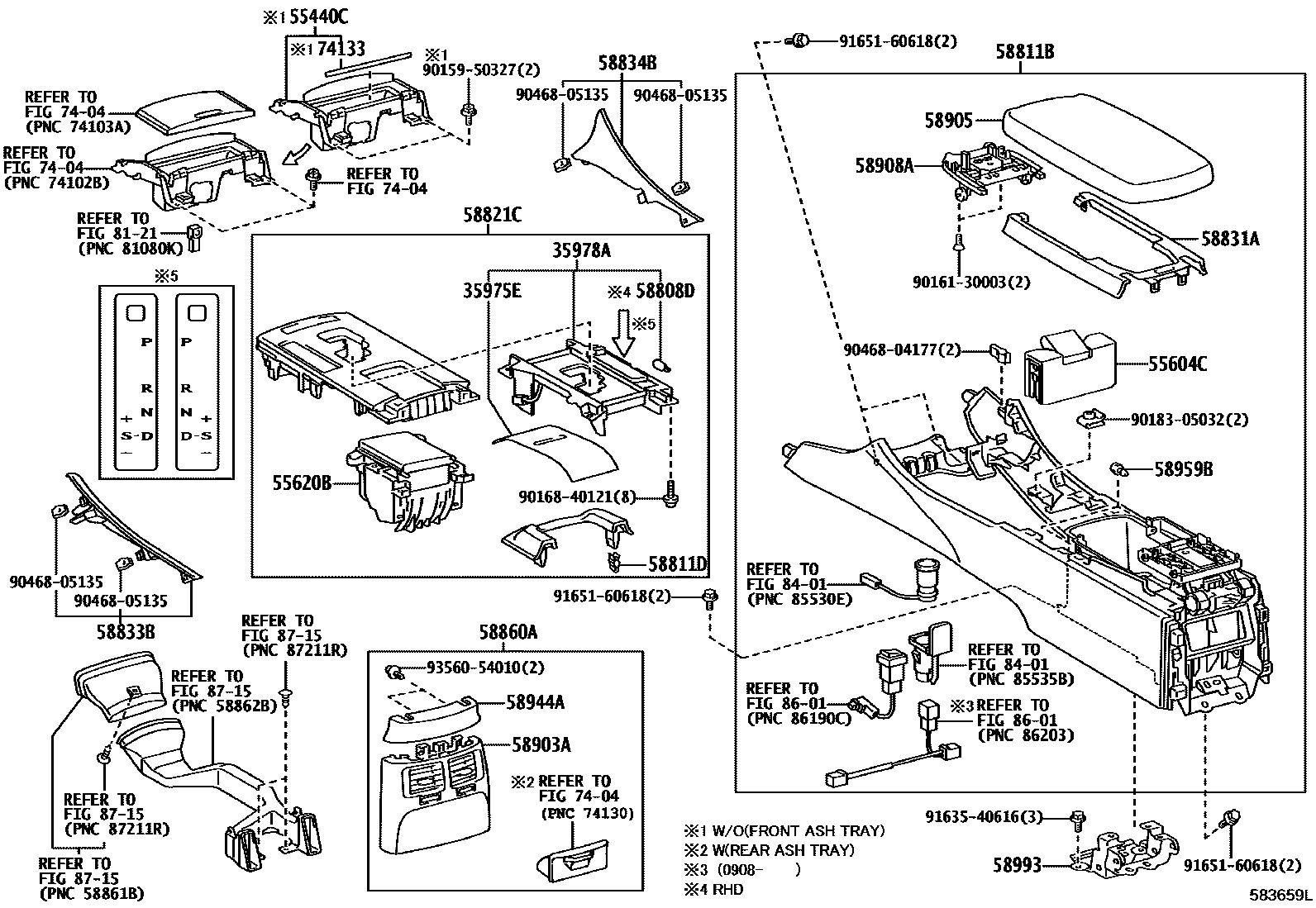

CONSOLE BOX & BRACKET
35975ECOVER, SLIDE (FOR POSITION INDICATOR)
35978AINDICATOR, SHIFT POSITION
55604CHOLDER SUB-ASSY, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,1#,2#
58808DSHIFT INDICATOR LAMP BULB
58811BBOX, CONSOLE
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM1#
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM1#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/LT.GRAY/BACK,TRIM1#,2#
ECRU/MD.BROWN/ORC.BROWN,TRIM0#
58811DCLIP(FOR CONSOLE BOX)
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
FROSTY GRAY,TRIM1#
DK.GRAY,TRIM2#
BLACK,TRIM1#,2#
ECRU/MD.BROWN,TRIM0#
BLACK/LT.GRAY,TRIM1#,2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
IVORY,TRIM0#
ECRU,TRIM0#
FROSTY GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58944ACOVER, CONSOLE, REAR
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
7404
74133SEAL, FRONT ASH RECEPTACLE
8121
8401
8601
8715
9015950327
main90159-50327
9016130003
main90161-30003
9016840121
main90168-40121
9018305032
main90183-05032
9046804177
main90468-04177
9046805135
main90468-05135
9163540616
main91635-40616
9165160618
main91651-60618
9356054010
main93560-54010
35 parts on this diagram · 2 diagrams in section
