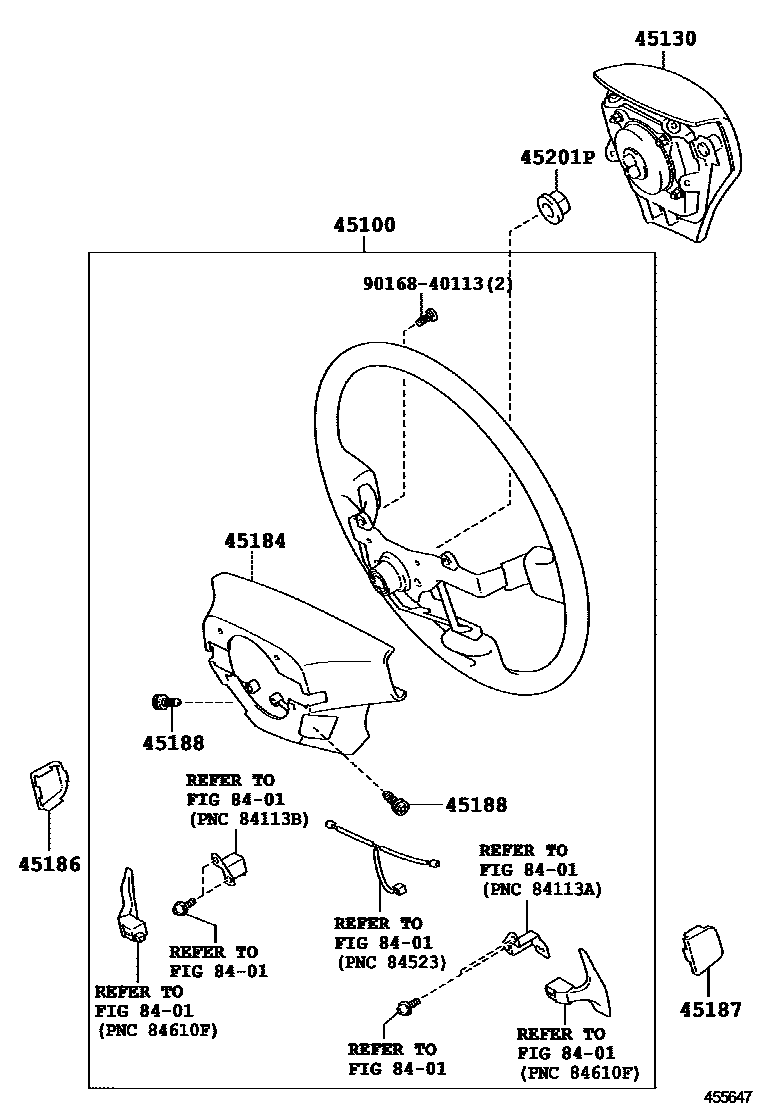

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,VERSION F,BLACK,TRIM2#
3-SPOKE,LEATHER,AU RED-EDGE BLACK INTERIOR PACKAGE(250),BLACK & RED,TRIM21
3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(PADDLE SWITCH),ART WORKS,BLACK & DK.BLUE,TRIM2#
3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(PADDLE SWITCH),ART WORKS,BLACK&DK.BLUE&TURQUOISE,TRIM2#
3-SPOKE,LEATHER,FB PACKAGE,BLACK & LT.GRAY,TRIM2#
3-SPOKE,LEATHER,FB PACKAGE,BLACK & LT.GRAY,TRIM2#
3-SPOKE,LEATHER,FB PACKAGE,BLACK & LT.GRAY,TRIM2#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,1#,2#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,1#,2#
45187COVER, STEERING WHEEL, LOWER NO.3
CRUISE CONTROL-WITH(RADAR),BLACK,TRIM0#,1#,2#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
CRUISE CONTROL-WITH(RADAR)
8401
9016840113
main90168-40113
9 parts on this diagram · 2 diagrams in section
