VENTILATION HOSE

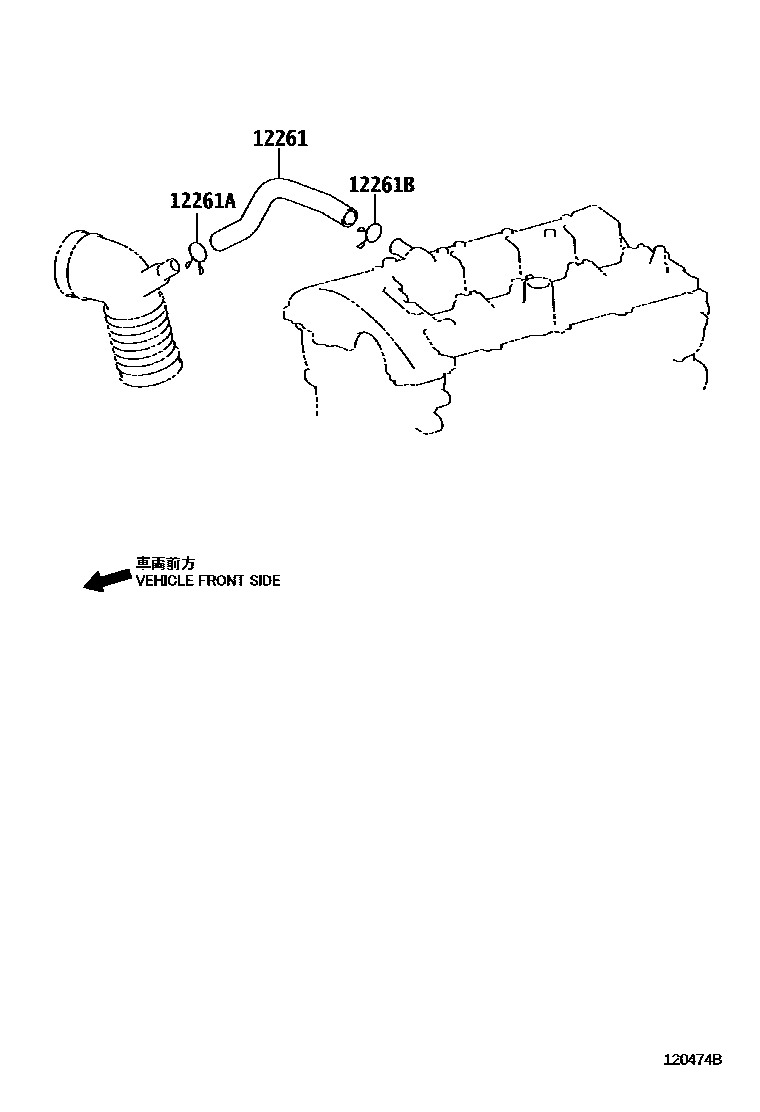

Parts diagram

12261HOSE, VENTILATION

main12261-26020i200511-200603

main12261-26021i200808-200908

main12261-31060i200808-201008

main12261-31120i201211-201304

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i201008-201208

main90467-14017×2i200508-200808

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i200603-200808

main90467-23002i200511-200603

3 parts on this diagram · 2 diagrams in section
