ANTENNA
86050ANTENNA ASSY, TELEVISION
ARUBA, CURACAO SPEC; COSTA RICA SPEC; EL SALVADOR SPEC; GUATEMALA SPEC; PANAMA SPEC
BRAZIL SPEC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&ANTENNA-GLASS & DIGITAL TV& SHARK(LESS CABLE)&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); BRAZIL SPEC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); BRAZIL SPEC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER&ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE)&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); BRAZIL SPEC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
86077COVER KIT, ANTENNA
WHITE NOVA GF.,083
SONIC QUARTZ,085
main86077-53010-B1iASE30,AVE30,GSE31..ARL; ASE30,AVE30..ARL; ASE30..GEN; AVE30..GEN; GSE31..ARL201610-201809
ANTENNA-GLASS & DAB,PLATINUM SILVER ME.,1J4; ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE),PLATINUM SILVER ME.,1J4; ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE),PLATINUM SILVER ME.,1J4; ANTENNA-GLASS,PLATINUM SILVER ME.,1J4; INDONESIA SPEC,PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4; SOUTH AFRICA SPEC,PLATINUM SILVER ME.,1J4; TAIWAN SPEC&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
main86077-53010-B3iASE30,AVE30,GSE31..ARL; ASE30,AVE30..ARL; ASE30..CHI; ASE30..GEN; AVE30..GEN; GSE31..ARL201809-202009
ANTENNA-GLASS & DAB,SONIC SILVER,1J2; ANTENNA-GLASS,SONIC SILVER,1J2; INDONESIA SPEC,SONIC SILVER,1J2; MAYDAY SYSTEM-WITH(TELEMATICS),SONIC SILVER,1J2; SONIC SILVER,1J2; SOUTH AFRICA SPEC,SONIC SILVER,1J2; TAIWAN SPEC&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),SONIC SILVER,1J2; TAIWAN SPEC,SONIC SILVER,1J2
main86077-53010-B6iASE30,AVE30,GSE31..ARL; ASE30,AVE30..ARL; ASE30..CHI; ASE30..GEN; AVE30..GEN; GSE31..ARL201909-202009
ANTENNA-GLASS & DAB,MANGANESE LUSTER,1K2; ANTENNA-GLASS,MANGANESE LUSTER,1K2; INDONESIA SPEC,MANGANESE LUSTER,1K2; MANGANESE LUSTER,1K2; MAYDAY SYSTEM-WITH(TELEMATICS),MANGANESE LUSTER,1K2; SOUTH AFRICA SPEC,MANGANESE LUSTER,1K2; TAIWAN SPEC&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),MANGANESE LUSTER,1K2; TAIWAN SPEC,MANGANESE LUSTER,1K2
main86077-53010-C3supersedes 86077-53030-C0iASE30,AVE30,GSE31..ARL; ASE30,AVE30..ARL; AVE30..GEN; GSE31..ARL201610-202009
ANTENNA-GLASS & DAB,GRAPHITE BLACK GF.,223; ANTENNA-GLASS,GRAPHITE BLACK GF.,223; GRAPHITE BLACK GF.,223; INDONESIA SPEC,GRAPHITE BLACK GF.,223; SOUTH AFRICA SPEC,GRAPHITE BLACK GF.,223; TAIWAN SPEC&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
RED,3T5
BLUE,8X1
ANTENNA-GLASS & DAB,DEEP BLUE MC.,8X5; ANTENNA-GLASS,DEEP BLUE MC.,8X5; DEEP BLUE MC.,8X5; INDONESIA SPEC,DEEP BLUE MC.,8X5; SOUTH AFRICA SPEC,DEEP BLUE MC.,8X5; TAIWAN SPEC&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),DEEP BLUE MC.,8X5
CELESTIAL BLUE GF.,8Y6
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
main86077-53010-A0iAVE30,GSE3#..ARL; AVE30,GSE30..ARL; AVE30,GSE30..GEN; GSE3#..ARL; GSE30..ARL; GSE30..CHI201304-201508
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),WHITE PEARL CS.,077; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),WHITE PEARL CS.,077; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),WHITE PEARL CS.,077; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),WHITE PEARL CS.,077; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),WHITE PEARL CS.,077; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),WHITE PEARL CS.,077; MAYDAY SYSTEM-WITH(TELEMATICS),WHITE PEARL CS.,077; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),WHITE PEARL CS.,077; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),WHITE PEARL CS.,077; SOUTH AFRICA SPEC,WHITE PEARL CS.,077; TAIWAN SPEC,WHITE PEARL CS.,077; THAILAND SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),WHITE PEARL CS.,077; THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),WHITE PEARL CS.,077; WHITE PEARL CS.,077
main86077-53010-B0iASE30,AVE30,GSE31..ARL; ASE30,AVE30..ARL; ASE30,GSE31..ARL; ASE30..ARL; ASE30..CHI; ASE30..GEN; AVE30..GEN201508-201610
ANTENNA-GLASS & DAB,MERCURY GRAY MC.,1H9; ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE),MERCURY GRAY MC.,1H9; ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE),MERCURY GRAY MC.,1H9; ANTENNA-GLASS,MERCURY GRAY MC.,1H9; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MERCURY GRAY MC.,1H9; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MERCURY GRAY MC.,1H9; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MERCURY GRAY MC.,1H9; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MERCURY GRAY MC.,1H9; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MERCURY GRAY MC.,1H9; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MERCURY GRAY MC.,1H9; MAYDAY SYSTEM-WITH(TELEMATICS),MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MERCURY GRAY MC.,1H9; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MERCURY GRAY MC.,1H9; SOUTH AFRICA SPEC,MERCURY GRAY MC.,1H9; TAIWAN SPEC,MERCURY GRAY MC.,1H9; THAILAND SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MERCURY GRAY MC.,1H9; THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MERCURY GRAY MC.,1H9
main86077-53010-C0iASE30,AVE30,GSE31..ARL; ASE30,AVE30..ARL; ASE30,GSE31..ARL; ASE30..ARL; ASE30..CHI; ASE30..GEN; AVE30..GEN201508-201610
ANTENNA-GLASS & DAB,BLACK,212; ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE),BLACK,212; ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE),BLACK,212; ANTENNA-GLASS,BLACK,212; BLACK,212; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),BLACK,212; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,212; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),BLACK,212; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,212; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),BLACK,212; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,212; MAYDAY SYSTEM-WITH(TELEMATICS),BLACK,212; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),BLACK,212; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,212; SOUTH AFRICA SPEC,BLACK,212; TAIWAN SPEC,BLACK,212; THAILAND SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),BLACK,212; THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,212
main86077-53010-C1iAVE30,GSE3#..ARL; AVE30,GSE30..ARL; AVE30,GSE30..GEN; GSE3#..ARL; GSE30..ARL; GSE30..CHI201304-201508
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),STARLIGHT BLACK GF.,217; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),STARLIGHT BLACK GF.,217; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),STARLIGHT BLACK GF.,217; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),STARLIGHT BLACK GF.,217; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),STARLIGHT BLACK GF.,217; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),STARLIGHT BLACK GF.,217; MAYDAY SYSTEM-WITH(TELEMATICS),STARLIGHT BLACK GF.,217; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),STARLIGHT BLACK GF.,217; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),STARLIGHT BLACK GF.,217; SOUTH AFRICA SPEC,STARLIGHT BLACK GF.,217; STARLIGHT BLACK GF.,217; TAIWAN SPEC,STARLIGHT BLACK GF.,217; THAILAND SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),STARLIGHT BLACK GF.,217; THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),STARLIGHT BLACK GF.,217
main86077-53010-D3iASE30,AVE30,GSE31..ARL; ASE30,AVE30..ARL; ASE30,GSE31..ARL; ASE30..ARL; ASE30..CHI; ASE30..GEN; AVE30..GEN201508-201610
ANTENNA-GLASS & DAB,MADDER RED,3T2; ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE),MADDER RED,3T2; ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE),MADDER RED,3T2; ANTENNA-GLASS,MADDER RED,3T2; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MADDER RED,3T2; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MADDER RED,3T2; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MADDER RED,3T2; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MADDER RED,3T2; MADDER RED,3T2; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MADDER RED,3T2; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MADDER RED,3T2; MAYDAY SYSTEM-WITH(TELEMATICS),MADDER RED,3T2; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MADDER RED,3T2; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MADDER RED,3T2; SOUTH AFRICA SPEC,MADDER RED,3T2; TAIWAN SPEC,MADDER RED,3T2; THAILAND SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS),MADDER RED,3T2; THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),MADDER RED,3T2
main86077-53010-J0iAVE30,GSE3#..ARL; AVE30,GSE30..ARL; AVE30,GSE30..GEN; GSE3#..ARL; GSE30..ARL; GSE30..CHI201304-201508
BLUE ME.,8U1; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),BLUE ME.,8U1; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLUE ME.,8U1; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),BLUE ME.,8U1; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLUE ME.,8U1; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),BLUE ME.,8U1; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLUE ME.,8U1; MAYDAY SYSTEM-WITH(TELEMATICS),BLUE ME.,8U1; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),BLUE ME.,8U1; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLUE ME.,8U1; SOUTH AFRICA SPEC,BLUE ME.,8U1; TAIWAN SPEC,BLUE ME.,8U1; THAILAND SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),BLUE ME.,8U1; THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLUE ME.,8U1
main86077-53010-J1iAVE30,GSE3#..ARL; AVE30,GSE30..ARL; AVE30,GSE30..GEN; GSE3#..ARL; GSE30..ARL; GSE30..CHI201304-201508
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),LAPIS LAZULI MC.,8V3; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),LAPIS LAZULI MC.,8V3; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),LAPIS LAZULI MC.,8V3; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),LAPIS LAZULI MC.,8V3; LAPIS LAZULI MC.,8V3; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),LAPIS LAZULI MC.,8V3; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),LAPIS LAZULI MC.,8V3; MAYDAY SYSTEM-WITH(TELEMATICS),LAPIS LAZULI MC.,8V3; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),LAPIS LAZULI MC.,8V3; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),LAPIS LAZULI MC.,8V3; SOUTH AFRICA SPEC,LAPIS LAZULI MC.,8V3; TAIWAN SPEC,LAPIS LAZULI MC.,8V3; THAILAND SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),LAPIS LAZULI MC.,8V3; THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),LAPIS LAZULI MC.,8V3
SINGAPORE SPEC,TITANIUM CARBIDE GRAY,1L8 ,2YX; SOUTH AFRICA SPEC,TITANIUM CARBIDE GRAY,1L8 ,2YX; TAIWAN SPEC,TITANIUM CARBIDE GRAY,1L8; TITANIUM CARBIDE GRAY,1L8 ,2YX
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,WHITE NOVA GF.,083; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,WHITE NOVA GF.,083; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,WHITE NOVA GF.,083; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,WHITE NOVA GF.,083; WHITE NOVA GF.,083
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC QUARTZ,085; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC QUARTZ,085; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC QUARTZ,085; SONIC QUARTZ,085; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC QUARTZ,085
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC TITANIUM,1J7; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC TITANIUM,1J7; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC TITANIUM,1J7; SONIC TITANIUM,1J7; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC TITANIUM,1J7
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC CHROME,1L1; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC CHROME,1L1; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC CHROME,1L1; SONIC CHROME,1L1; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC CHROME,1L1
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC IRIDIUM,1L2; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC IRIDIUM,1L2; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC IRIDIUM,1L2; SONIC IRIDIUM,1L2; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,SONIC IRIDIUM,1L2
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,GRAPHITE BLACK GF.,223; GRAPHITE BLACK GF.,223; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,GRAPHITE BLACK GF.,223; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,GRAPHITE BLACK GF.,223; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,GRAPHITE BLACK GF.,223
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,RED MC.CS.,3R1; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,RED MC.CS.,3R1; RED MC.CS.,3R1; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,RED MC.CS.,3R1; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,RED MC.CS.,3R1
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,RADIANT RED CONTRAST LAYE,3T5; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,RADIANT RED CONTRAST LAYE,3T5; RADIANT RED CONTRAST LAYE,3T5; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,RADIANT RED CONTRAST LAYE,3T5; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,RADIANT RED CONTRAST LAYE,3T5
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,HEAT BLUE CONTRAST LAYERI,8X1; HEAT BLUE CONTRAST LAYERI,8X1; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,HEAT BLUE CONTRAST LAYERI,8X1; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,HEAT BLUE CONTRAST LAYERI,8X1; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,HEAT BLUE CONTRAST LAYERI,8X1
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,CELESTIAL BLUE GF.,8Y6; CELESTIAL BLUE GF.,8Y6; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,CELESTIAL BLUE GF.,8Y6; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,CELESTIAL BLUE GF.,8Y6; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,CELESTIAL BLUE GF.,8Y6
86101CORD SUB-ASSY, ANTENNA
main86101-53B90supersedes 86101-53840iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..GEN; ASE30,AVE30..ARL; ASE30..ARL202009-202110
BRUNEI SPEC&AUDIO-*DA(L1) & DVD & 10SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; BRUNEI SPEC&AUDIO-*DA(L1) & DVD & 17SPEAKER(*MAR)&DATA COMMUNICATION MODULE-WITHOUT; MALAYSIA SPEC&AUDIO-*DA(L1) & DVD & 10SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; MALAYSIA SPEC&AUDIO-*DA(L1) & DVD & 17SPEAKER(*MAR)&DATA COMMUNICATION MODULE-WITHOUT; SINGAPORE SPEC&AUDIO-*DA(L1) & DVD & 10SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; SINGAPORE SPEC&AUDIO-*DA(L1) & DVD & 17SPEAKER(*MAR)&DATA COMMUNICATION MODULE-WITHOUT; THAILAND SPEC&AUDIO-*DA(L1) & DVD & 10SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; THAILAND SPEC&AUDIO-*DA(L1) & DVD & 17SPEAKER(*MAR)&DATA COMMUNICATION MODULE-WITHOUT
AUDIO-*EMV(L2) & DVD & 10SPEAKER; AUDIO-*EMV(L2) & DVD & 17SPEAKER(*MAR)
HONG KONG SPEC&AUDIO-*DA(L1) & CD & 10SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; HONG KONG SPEC&AUDIO-*DA(L1) & CD & 17SPEAKER(*MAR)&DATA COMMUNICATION MODULE-WITHOUT; MACAU SPEC&AUDIO-*DA(L1) & CD & 10SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; MACAU SPEC&AUDIO-*DA(L1) & CD & 17SPEAKER(*MAR)&DATA COMMUNICATION MODULE-WITHOUT
MOROCCO SPEC; SAUDI ARABIA SPEC; UAE SPEC
AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&ANTENNA-GLASS; AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE); AUDIO-EMV & AM/FM & DVD & 8SPEAKER&ANTENNA-GLASS; AUDIO-EMV & AM/FM & DVD & 8SPEAKER&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE); INDONESIA SPEC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); INDONESIA SPEC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
86101DCORD SUB-ASSY, ANTENNA, NO.3
CHILE SPEC; PHILIPPINES SPEC; TAIWAN SPEC&AUDIO-*DA(L1) & DVD & 10SPEAKER; TAIWAN SPEC&AUDIO-*DA(L1) & DVD & 17SPEAKER(*MAR)
86101JCORD SUB-ASSY, ANTENNA, NO.2
AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-EMV & AM/FM & DVD & 8SPEAKER&MAYDAY SYSTEM-WITH(TELEMATICS)
BRUNEI SPEC&AUDIO-*DA & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS); BRUNEI SPEC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV& WITH(NAVIGATION); BRUNEI SPEC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); HONG KONG SPEC; INDONESIA SPEC&AUDIO-*DA & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-DISPLAYAUDIO & WITH(GPS); INDONESIA SPEC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); INDONESIA SPEC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); MALAYSIA SPEC&AUDIO-*DA & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS); MALAYSIA SPEC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); MALAYSIA SPEC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); SINGAPORE SPEC&AUDIO-*DA & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-DISPLAYAUDIO & WITH(GPS); SINGAPORE SPEC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); SINGAPORE SPEC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); THAILAND SPEC&AUDIO-*DA & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS); THAILAND SPEC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); THAILAND SPEC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
MOROCCO SPEC; SAUDI ARABIA SPEC; UAE SPEC
86101RCORD SUB-ASSY, ANTENNA, NO.5
main86101-53L60supersedes 86101-53L50iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD; ASE30,AVE30..ARL; ASE30..ARL202009-202110
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT; THAILAND SPEC&DATA COMMUNICATION MODULE-WITHOUT
MAYDAY SYSTEM-WITH(TELEMATICS)
AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-EMV & AM/FM & DVD & 10SPEAKER&MAYDAY SYSTEM-WITH(TELEMATICS)
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300JANTENNA ASSY, ROOF
main86760-53100iASE30,AVE30,GSE31..ARL; ASE30,AVE30..ARL; ASE30,GSE31..ARL; ASE30..ARL; ASE30..CHI; ASE30..GEN; AVE30..GEN201508-201610
BRAZIL SPEC&ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE); BRUNEI SPEC&ANTENNA-GLASS; BRUNEI SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS); BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); INDONESIA SPEC&ANTENNA-GLASS; INDONESIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS); INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); MALAYSIA SPEC&ANTENNA-GLASS; MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS); MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); MAYDAY SYSTEM-WITH(TELEMATICS); SINGAPORE SPEC&ANTENNA-GLASS; SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS); SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION); SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&ANTENNA-GLASS & DAB; TAIWAN SPEC; TAIWAN SPEC&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE); THAILAND SPEC&ANTENNA-GLASS; THAILAND SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS); THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT
863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING
86769HOUSING, ROOF ANTENNA
TYPE A:REFER ILLUST.
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT,TYPE B:REFER ILLUST.; MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT,TYPE B:REFER ILLUST.; SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT,TYPE B:REFER ILLUST.; SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
9011906915
main90119-06915
9017906274
main90179-06274

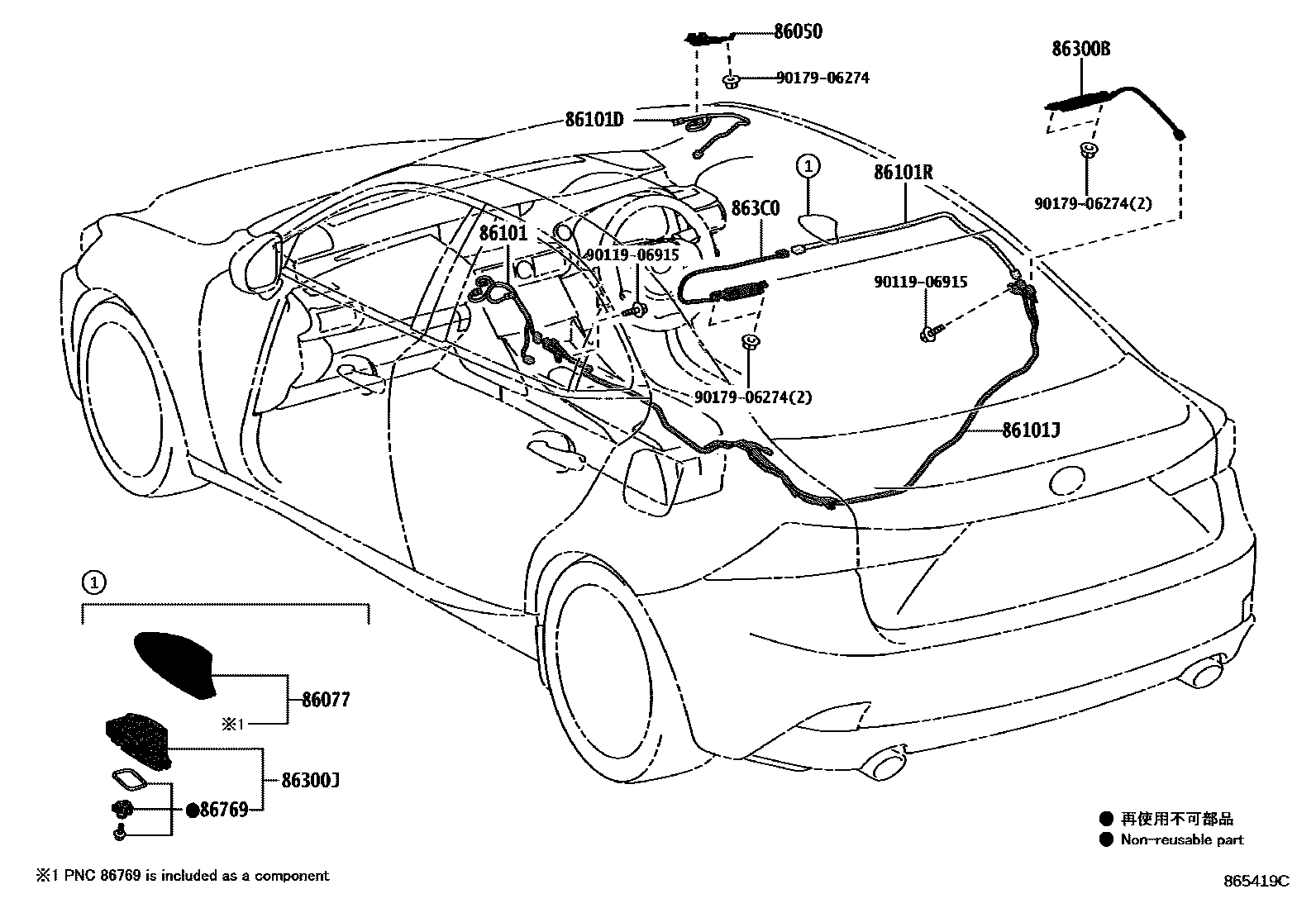

12 parts on this diagram · 2 diagrams in section
